Powering the Future: The Advantages of Victron AGM and Lithium Batteries
Unlocking the Potential of Advanced Battery Technology
In the realm of energy storage, the choice of battery technology plays a pivotal role. Victron Energy, a leader in the field of power conversion and storage solutions, offers two highly advanced battery types: AGM and Lithium batteries. Each brings unique advantages to the table, catering to a wide array of power needs and applications.
23 Products Found
Out of Stock
£2,199.99
Victron Energy LiFePO4 Battery 25,6V 200Ah Smart-A - BAT524120610
Victron Energy LiFePO4 Battery 25,6V 200Ah Smart-A - BAT524120610
The Victron Energy 25.6V 200Ah Smart Battery
With integrated cell balancing
Can be parallel and series connected
Bluetooth app available to monitor cell voltage and temperature
Requires one of these BMS-es:
VE.Bus BMS – recommended for systems with our inverter/chargers.
smallBMS – recommended for use in small systems.
Battery Management System BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS CL 12/100 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Lynx Smart BMS – recommended for use in large systems.
Features of the 25.6V 200Ah Smart Battery
RuggedA lead-acid battery will fail prematurely due to sulfation:• If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).• If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime).A LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid.Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below).
LFP is therefore the chemistry of choice for demanding applications.
EfficientIn several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance.The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead acid battery is 80%.The round-trip energy efficiency of a LFP battery is 92%.The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state).In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.
Size and weightSaves up to 70% in spaceSaves up to 70% in weight
Expensive?LFP batteries are expensive when compared to lead acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.
BluetoothWith Bluetooth cell voltages, temperature and alarm status can be monitored.Very useful to localize a (potential) problem, such as cell imbalance.
The 25.6V 200Ah Smart battery is equipped with Bluetooth and uses this to communicate with the VictronConnect app.
The VictronConnect app can be used for:• Monitoring the battery status• Monitoring the battery voltage• Monitoring the battery temperature• To find out when the battery was last fully charged• Monitoring the cell balancing status• Monitoring the individual cell voltages• To view or change the battery settings• To update the battery firmware
Brand
Victron Energy
Manufacturer Part Number
BAT524120610
gtin
8719076054610
Voltage
25,6V
Battery Capacity (C20)
200Ah
Terminal Type
M8
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
H237 x W650 x D163mm
Weight
39Kg
Warranty
3 Years
Battery Technology
Lithium
Battery Application
Deep Cycle
Country of Manufacture
China
...Read more
£1,609.99
Victron Energy LiFePO4 Battery 25.6V 100Ah Smart – BAT524110610
Victron Energy LiFePO4 Battery 25.6V 100Ah Smart – BAT524110610
The Victron Energy 25.6V 100Ah Smart Battery
With integrated cell balancing
Can be parallel and series connected
Bluetooth app available to monitor cell voltage and temperature
Requires one of these BMS-es:
VE.Bus BMS – recommended for systems with our inverter/chargers.
smallBMS – recommended for use in small systems.
Battery Management System BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS CL 12/100 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Lynx Smart BMS – recommended for use in large systems.
Features of the 25.6V 100Ah Smart Battery
RuggedA lead-acid battery will fail prematurely due to sulfation:• If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).• If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime).A LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid.Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below).
LFP is therefore the chemistry of choice for demanding applications.
EfficientIn several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance.The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead acid battery is 80%.The round-trip energy efficiency of a LFP battery is 92%.The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state).In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.
Size and weightSaves up to 70% in spaceSaves up to 70% in weight
Expensive?LFP batteries are expensive when compared to lead acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability, and excellent efficiency.
BluetoothWith Bluetooth cell voltages, temperature and alarm status can be monitored.Very useful to localize a (potential) problem, such as cell imbalance.
The 25.6V 100Ah Smart battery is equipped with Bluetooth and uses this to communicate with the VictronConnect app.
The VictronConnect app can be used for:• Monitoring the battery status• Monitoring the battery voltage• Monitoring the battery temperature• To find out when the battery was last fully charged• Monitoring the cell balancing status• Monitoring the individual cell voltages• To view or change the battery settings• To update the battery firmware
Brand
Victron Energy
Manufacturer Part Number
BAT524110610
gtin
8719076054627
Voltage
25,6V
Battery Capacity (C20)
100Ah
Terminal Type
M8
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
H197 x W650 x D163mm
Weight
28Kg
Warranty
3 Years
Country of Manufacture
China
Battery Technology
Lithium
Battery Application
Deep Cycle
...Read more
View Product
Out of Stock
£1,442.00

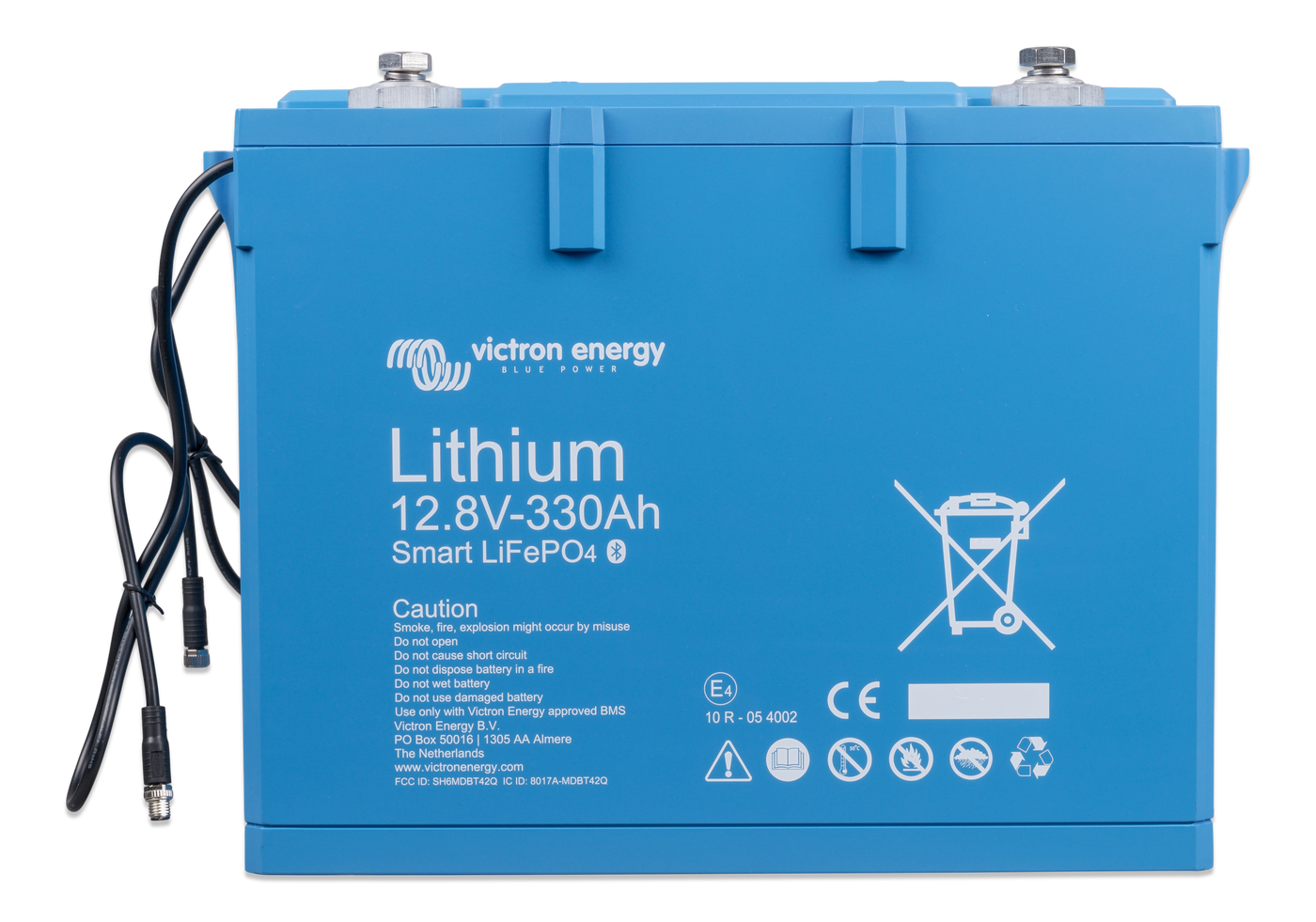

Victron Energy LiFePO4 Battery 12,8V 330Ah Smart - BAT512132410
The Victron Energy 330Ah Smart Battery
With integrated cell balancing
Can be parallel and series connected
Bluetooth app available to monitor cell voltage and temperature
Requires one of these BMS-es:
VE.Bus BMS – recommended for systems with our inverter/chargers.
smallBMS – recommended for use in small systems.
Battery Management System BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS CL 12/100 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Lynx Smart BMS – recommended for use in large systems.
Features of the 330Ah Smart Battery
RuggedA lead-acid battery will fail prematurely due to sulfation:• If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).• If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime).A LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid.Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below).
LFP is therefore the chemistry of choice for demanding applications.
EfficientIn several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance.The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead acid battery is 80%.The round-trip energy efficiency of a LFP battery is 92%.The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state).In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.
Size and weightSaves up to 70% in spaceSaves up to 70% in weight
Expensive?LFP batteries are expensive when compared to lead acid But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.
BluetoothWith Bluetooth cell voltages, temperature and alarm status can be monitored.Very useful to localize a (potential) problem, such as cell imbalance.
The 330Ah Smart battery is equipped with Bluetooth and uses this to communicate with the VictronConnect app.
The VictronConnect app can be used for:• Monitoring the battery status• Monitoring the battery voltage• Monitoring the battery temperature• To find out when the battery was last fully charged• Monitoring the cell balancing status• Monitoring the individual cell voltages• To view or change the battery settings• To update the battery firmware
Brand
Victron Energy
Manufacturer Part Number
BAT512132410
GTIN
8719076054849
Voltage
12.8V
Battery Capacity (C20)
330Ah
Terminal Type
M10
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
H347 x W425 x D274mm
Weight
51Kg
Warranty
3 Years
Country of Manufacture
China
Battery Technology
Lithium
Battery Application
Deep Cycle
...Read more
£1,099.00
Victron Energy Smart Lithium LiFePO4 12V battery 200Ah full cycle bluetooth BMS
Victron Lithium Smart 200Ah LiFePO4 battery is smaller and lighter than lead acid batteries. Incredibly robust with a very long cycle life and very deep discharge available. Connect via Bluetooth to your smartphone to view discharge current and power, discharge duration, cycles and more.
Brand: Victron Energy
Connectivity technology: Bluetooth
Compatible phone models: Most Bluetooth
Battery cell composition: Lithium-Phosphate
Amperage: 200Ah
Nominal voltage: 12.8V
Nominal energy: 2560Wh
Lithium Smart battery 12,8V
With integrated cell balancing
Can be parallel and series connected
Bluetooth app available to monitor cell voltage and temperature
VE.Bus BMS – recommended for systems with our inverter/chargers.
miniBMS – recommend for use in small systems.
Battery Management System BMS 12/200 – recommended for use in Automotive and Marine’s systems having DC-loads and Alternators.
Smart BMS CL 12/100 – recommended for use in Automotive and Marine’s systems having DC-loads and Alternators.
Lithium-iron-phosphate (LiFePO4 or LFP) is the safest of the mainstream li-ion battery types. The nominal voltage of an LFP cell is 3,2V (lead-acid: 2V/cell). A 12,8V LFP battery, therefore, consists of 4 cells connected in series, and a 25,6V battery consists of 8 cells connected in series.
Rugged
A lead-acid battery will fail prematurely due to sulfation: • If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged). • If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime). An LFP battery does not need to be fully charged. Service life even slightly improves in case of a partial charge instead of a full charge. This is a major advantage of LFP compared to lead acid. Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below). LFP is therefore the chemistry of choice for demanding applications.
Efficient
In several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance. The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average leadacid battery is 80%. The round-trip energy efficiency of a LFP battery is 92%. The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state). In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.
Bluetooth
With Bluetooth cell voltages, temperature and alarm status can be monitored. Very useful to localize a (potential) problem, such as cell imbalance
Battery Specification
200Ah – nominal voltage 12.8V, nominal energy 2560Wh, max. Charge current 400A, max continuous discharge current 400A, recommended max discharge current <200A, end of discharge voltage 10V, dimensions 237 x 321 x 152mm, weight 22kg
...Read more
View Product
£1,037.99
Victron Energy Lithium SuperPack 12.8V 200Ah (M8) – BAT512120705
The SuperPack batteries are extremely easy to install, not needing any additional components.The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
The batteries can be connected in parallel. Series connection is not allowed.
Features
Integrated BMS and safety switch
The SuperPack batteries are extremely easy to install, needing no additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
Abuse proof
A lead-acid battery will fail prematurely due to sulfation:
If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
If it is left partially charged or worse, fully discharged.
A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion compared to lead-acid.
The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are exceeded.
Efficient
In several applications (especially off-grid solar), energy efficiency can be of crucial importance.
The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%.
The round-trip energy efficiency of a Li-ion battery is 92%.
The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state).
In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions.
Can be connected in parallel
The batteries can be connected in parallel. Series connection is not allowed. Use in upright position only.
Brand
Victron Energy
Manufacturer Part Number
BAT512120705
GTIN
8719076047568
Voltage
12.8V
Battery Capacity (C20)
200Ah
Terminal Type
M8
Terminal Layout
Side
Dimensions (Including Terminals)
H208 x W520 x D269mm
Weight
21Kg
Warranty
3 Years
Battery Application
Deep Cycle
Battery Technology
Lithium
Country of Manufacture
China
...Read more
View Product
£980.99
Victron Energy LiFePO4 Battery 12.8V 160Ah Smart – BAT512116610
Lithium-iron-phosphate (LiFePO4 or LFP) is the safest of the mainstream li-ion battery types. The nominal voltage of a LFP cell is 3,2V (lead-acid: 2V/cell). A 12,8V LFP battery therefore consists of 4 cells connected in series; and a 25,6V battery consists of 8 cells connected in series.
Features
Rugged
A lead-acid battery will fail prematurely due to sulfation:
If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime).
A LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid. Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below).
LFP is therefore the chemistry of choice for demanding applications.
Efficient
In several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance.
The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average leadacid battery is 80%.
The round-trip energy efficiency of a LFP battery is 92%.
The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state). In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.
Size and weight
Saves up to 70% in space Saves up to 70% in weight
Expensive?
LFP batteries are expensive when compared to lead-acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.
Bluetooth
With Bluetooth cell voltages, temperature and alarm status can be monitored. Very useful to localize a (potential) problem, such as cell imbalance.
BMS
Our LFP batteries have integrated cell balancing and cell monitoring. Up to 5 batteries can be paralleled and up to four 12V batteries or two 24V batteries can be series connected, so that a 48V battery bank of up to 1500Ah can be assembled. The cell balancing/monitoring cables can be daisy-chained and must be connected to a Battery Management System (BMS).
Brand
Victron Energy
Manufacturer Part Number
BAT512116610
GTIN
8719076048930
Voltage
12.8V
Battery Capacity (C20)
160Ah
Terminal Type
M10
Terminal Layout
Right Hand Positive
Dimensions (Including Terminals)
H237 x W321 x D152mm
Weight
33Kg
Warranty
3 Years
Country of Manufacture
China
Battery Technology
Lithium
Battery Application
Deep Cycle
...Read more
View Product
£890.00
Victron Energy LiFePO4 Battery 12.8V 100Ah Smart – BAT512110610
The Victron Energy 100Ah Smart Battery
With integrated cell balancing
Can be parallel and series connected
Bluetooth app available to monitor cell voltage and temperature
Requires one of these BMS-es:
VE.Bus BMS – recommended for systems with our inverter/chargers.
smallBMS – recommended for use in small systems.
Battery Management System BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS CL 12/100 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Lynx Smart BMS – recommended for use in large systems.
Features of the 100Ah Smart Battery
RuggedA lead-acid battery will fail prematurely due to sulfation:• If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).• If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime).A LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid.Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below).
LFP is therefore the chemistry of choice for demanding applications.
EfficientIn several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance.The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead acid battery is 80%.The round-trip energy efficiency of a LFP battery is 92%.The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state).In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.
Size and weightSaves up to 70% in spaceSaves up to 70% in weight
Expensive?LFP batteries are expensive when compared to lead-acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.
BluetoothWith Bluetooth cell voltages, temperature and alarm status can be monitored.Very useful to localize a (potential) problem, such as cell imbalance.
The 100Ah Smart battery is equipped with Bluetooth and uses this to communicate with the VictronConnect app.
The VictronConnect app can be used for:• Monitoring the battery status• Monitoring the battery voltage• Monitoring the battery temperature• To find out when the battery was last fully charged• Monitoring the cell balancing status• Monitoring the individual cell voltages• To view or change the battery settings• To update the battery firmware
Brand
Victron Energy
Manufacturer Part Number
BAT512110610
GTIN
8719076043041
Voltage
12.8V
Battery Capacity (C20)
100Ah
Terminal Type
M8
Terminal Layout
Right Hand Positive
Dimensions (Including Terminals)
H197 x W321 x D152mm
Weight
14Kg
Warranty
3 Years
Country of Manufacture
China
Battery Technology
Lithium
Battery Application
Deep Cycle
...Read more
View Product
£826.99
Victron Energy Lithium SuperPack 25.6V 50Ah (M8) – BAT524050705
Victron Energy Lithium SuperPack 25.6V 50Ah (M8) – BAT524050705
The SuperPack batteries are extremely easy to install, not needing any additional components.The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
The batteries can be connected in parallel. Series connection is not allowed.
Features
Integrated BMS and safety switch
The SuperPack batteries are extremely easy to install, needing no additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
Abuse proof
A lead-acid battery will fail prematurely due to sulfation:
If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
If it is left partially charged or worse, fully discharged.
A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion compared to lead-acid.
The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are exceeded.
Efficient
In several applications (especially off-grid solar), energy efficiency can be of crucial importance.
The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%.
The round-trip energy efficiency of a Li-ion battery is 92%.
The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state).
In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions.
Can be connected in parallel
The batteries can be connected in parallel. Series connection is not allowed. Use in upright position only.
Brand
Victron Energy
Manufacturer Part Number
BAT524050705
Voltage
25.6V
Battery Capacity (C20)
50Ah
Terminal Type
M8
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
H220 x W330 x D172mm
Weight
14Kg
Warranty
3 Years
Battery Application
Deep Cycle
Battery Technology
Lithium
Country of Manufacture
China
...Read more
View Product
£749.99
Victron Energy Peak Power Pack 12.8V 40Ah – PPP012040000
The Victron Energy Peak 12.8V 40Ah Power Pack is a complete substitute for heavy lead acid batteries in applications where high currents occur for short time. Being primarily meant for caravan movers, it is equipped with a built-in charger allowing charging from the vehicle electrical system whilst travelling with the caravan. This way the pack will be fully charged upon arrival to the camping site. If necessary, the charging is possible using the supplied adapter via a grid outlet. Charging from a solar panel is also possible.
Features Peak Power Pack 12.8V 40Ah
Lightweight and easy to install– Ideal for mobile applications.
Effective protection against improper use– Ideal for solar power and other applications where excessive discharge might quickly cause damage to lead acid batteries.
Storage mode– Reduces power consumption to almost zero. Prevents damage due to excessive discharge of the battery during storage.
Remote control with status indicator
– Push button (supplied) with a dual-colour LED status indicator:
Short push of the button: high capacity output activated for 30 minutes (mover applications), red LED
Hold down for 2 seconds: high capacity output always activated, slow flashing red LED.
Hold down for 5 seconds: storage mode, blue LED flashes 10 times
Battery is charged via input 1: slow flashing blue LED
Battery fully charged: blue LED
Overload or overheating: flashing red LED
VE.Direct port: can be connected to a PC or smartphone(VE.Direct to USB or VE.Direct Bluetooth Smart dongle required)
Operation:
Output 1: on / 30-minute timer / off
Output 2: on/off
Input 1: on/off
Monitoring:
Battery voltage
Temperature and alarms
Brand
Victron Energy
Manufacturer Part Number
PPP012040000
gtin
8719076017332
Voltage
12.8V
Battery Capacity (C20)
40Ah
Dimensions
H172 x W190 x D172mm
Weight
5.4Kg
Warranty
3 Years
Battery Technology
Lithium
Battery Application
Deep Cycle
Country of Manufacture
India
...Read more
View Product
£682.99
Victron Energy Lithium SuperPack 12,8V 100Ah (M8) High Current – BAT512110710
Victron Energy Lithium SuperPack 12,8V 100Ah (M8) High Current – BAT512110710
The SuperPack batteries are extremely easy to install, not needing any additional components.The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
The batteries can be connected in parallel. Series connection is not allowed.
Features
Integrated BMS and safety switch
The SuperPack batteries are extremely easy to install, needing no additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
Abuse proof
A lead-acid battery will fail prematurely due to sulfation:
If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
If it is left partially charged or worse, fully discharged.
A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion compared to lead-acid.
The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are exceeded.
Efficient
In several applications (especially off-grid solar), energy efficiency can be of crucial importance.
The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%.
The round-trip energy efficiency of a Li-ion battery is 92%.
The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state).
In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions.
Can be connected in parallel
The batteries can be connected in parallel. Series connection is not allowed. Use in upright position only.
Brand
Victron Energy
Manufacturer Part Number
BAT512110710
gtin
8719076053019
Voltage
12.8V
Battery Capacity (C20)
100Ah
Terminal Type
M8
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
H220 x W330 x D172mm
Weight
14Kg
Warranty
3 Years
Battery Technology
Lithium
Battery Application
Deep Cycle
Country of Manufacture
China
...Read more
View Product
£563.99
Victron Energy AGM Super Cycle Battery 12V 230Ah (M8) - BAT412123081
The AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches.VRLA AGM: design life 7-10 yearsFeaturesA truly innovative batteryThe AGM Super Cycle batteries are the result of recent battery electrochemistry developments.The paste of the positive plates is less sensitive to softening, even in case of repeated 100% discharge of the battery, and new additives to the electrolyte reduce sulfation in case of deep discharge.Exceptional 100% depth of discharge (DoD) performanceTests have shown that the Super Cycle battery does withstand at least three hundred 100% DoD cycles.The tests consist of a daily discharge to 10,8V with I = 0,2C20, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0,2C20.The two hours rest period in discharged condition will damage most batteries within 100 cycles, but not the Super Cycle battery.We recommend the Super Cycle battery for applications where an occasional discharge to 100% DoD, or frequent discharge to 60- 80% DoD is expected.Smaller and lighterAn additional advantage of the new chemistry is a slightly smaller size and less weight compared to our standard deep cycle AGM batteries.
GTIN
8719076039570
Voltage
12V
Battery Capacity (C20)
230Ah
Cold Cranking
700CCA
Terminal Type
M8 Insert
Terminal Layout
Side
Dimensions (Including Terminals)
L532 x W207 x H226mm
Weight
57Kg
Warranty
2 Years
Country of Manufacture
China
Battery Technology
AGM
Battery Application
Dual Purpose
...Read more
View Product
£520.99
Victron Energy Peak Power Pack 12.8V 30Ah – PPP012030000
Victron Energy Peak Power Pack 12.8V 30Ah – PPP012030000
The Victron Energy Peak 12.8V 30Ah Power Pack is a complete substitute for heavy lead acid batteries in applications where high currents occur for short time. Being primarily meant for caravan movers, it is equipped with a built-in charger allowing charging from the vehicle electrical system whilst travelling with the caravan. This way the pack will be fully charged upon arrival to the camping site. If necessary, the charging is possible using the supplied adapter via a grid outlet. Charging from a solar panel is also possible.
Features Peak Power Pack 12.8V 30Ah
Lightweight and easy to install– Ideal for mobile applications.
Effective protection against improper use– Ideal for solar power and other applications where excessive discharge might quickly cause damage to lead acid batteries.
Storage mode– Reduces power consumption to almost zero. Prevents damage due to excessive discharge of the battery during storage.
Remote control with status indicator
– Push button (supplied) with a dual-colour LED status indicator:
Short push of the button: high capacity output activated for 30 minutes (mover applications), red LED
Hold down for 2 seconds: high capacity output always activated, slow flashing red LED.
Hold down for 5 seconds: storage mode, blue LED flashes 10 times
Battery is charged via input 1: slow flashing blue LED
Battery fully charged: blue LED
Overload or overheating: flashing red LED
VE.Direct port: can be connected to a PC or smartphone(VE.Direct to USB or VE.Direct Bluetooth Smart dongle required)
Operation:
Output 1: on / 30-minute timer / off
Output 2: on/off
Input 1: on/off
Monitoring:
Battery voltage
Temperature and alarms
Brand
Victron Energy
Manufacturer Part Number
PPP012030000
gtin
8719076017325
Voltage
12.8V
Battery Capacity (C20)
30Ah
Dimensions (Including Terminals)
H132 x W190 x D172mm
Weight
3.8Kg
Warranty
3 Years
Battery Technology
Lithium
Country of Manufacture
India
...Read more
View Product
£496.49
VICTRON ENERGY 12V 220AH AGM DEEP CYCLE BATTERY - BAT412201085 (M8)
The Victron Energy 12V 220Ah AGM battery has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches.
Features of the 12V 220Ah AGM battery
Sealed (VRLA) AGM BatteriesAGM stands for Absorbent Glass Mat. In these batteries the electrolyte is absorbed into a glass-fibre mat between the plates by capillary action. As explained in our book ‘Energy Unlimited’, AGM batteries are more suitable for short-time delivery of high currents than gel batteries.
Low Self-DischargeBecause of the use of lead calcium grids and high purity materials, Victron VRLA batteries can be stored during long periods of time without recharge. The rate of self-discharge is less than 2% per month at 20°C. The self-discharge doubles for every increase in temperature by 10°C.Victron VRLA batteries can therefore be stored for up to a year without recharging, if kept under cool conditions.
Exceptional Deep Discharge RecoveryVictron VRLA batteries have exceptional discharge recovery, even after deep or prolonged discharge.Nevertheless repeatedly deep and prolonged discharge has a very negative effect on the service life of all lead acid batteries,Victron batteries are no exception.
Battery Discharging CharacteristicsThe rated capacity of Victron AGM and Gel Deep Cycle batteries refers to 20 hour discharge, in other words: a discharge current of 0,05 C.The rated capacity of Victron Tubular Plate Long Life batteries refers to 10 hours discharge.The effective capacity decreases with increasing discharge current. Please note that the capacity reduction will be even faster in case of a constant power load, such as an inverter.
Brand
Victron Energy
Manufacturer Part Number
BAT412201085
GTIN
8719076037095
Voltage
12V
Battery Capacity (C20)
220Ah
Cold Cranking
650CCA
Terminal Type
M8
Terminal Layout
Side
Dimensions (Including Terminals)
L522 x W238 x H240mm
Weight
65Kg
Warranty
2 Years
Country of Manufacture
Vietnam
Battery Technology
AGM
Battery Application
Dual Purpose
...Read more
View Product
Out of Stock
£445.99
Victron Energy LiFePO4 Battery 12.8V 50Ah Smart – BAT512050610
Victron Energy LiFePO4 Battery 12.8V 50Ah Smart – BAT512050610
The Victron Energy 50Ah Smart Battery
With integrated cell balancing
Can be parallel and series connected
Bluetooth app available to monitor cell voltage and temperature
Requires one of these BMS-es:
VE.Bus BMS – recommended for systems with our inverter/chargers.
smallBMS – recommended for use in small systems.
Battery Management System BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS CL 12/100 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Lynx Smart BMS – recommended for use in large systems.
Features of the 50Ah Smart Battery
RuggedA lead-acid battery will fail prematurely due to sulfation:• If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).• If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime).A LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid.Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below).
LFP is therefore the chemistry of choice for demanding applications.
EfficientIn several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance.The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead acid battery is 80%.The round-trip energy efficiency of a LFP battery is 92%.The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state).In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.
Size and weightSaves up to 70% in spaceSaves up to 70% in weight
Expensive?LFP batteries are expensive when compared to lead acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.
BluetoothWith Bluetooth cell voltages, temperature and alarm status can be monitored.Very useful to localize a (potential) problem, such as cell imbalance.
The 50Ah Smart battery is equipped with Bluetooth and uses this to communicate with the VictronConnect app.
The VictronConnect app can be used for:• Monitoring the battery status• Monitoring the battery voltage• Monitoring the battery temperature• To find out when the battery was last fully charged• Monitoring the cell balancing status• Monitoring the individual cell voltages• To view or change the battery settings• To update the battery firmware
Brand
Victron Energy
Manufacturer Part Number
BAT512050610
gtin
8719076051633
Voltage
12V
Battery Capacity (C20)
50Ah
Terminal Type
M8
Terminal Layout
Right Hand Positive
Dimensions (Including Terminals)
H199 x W188 x D147mm
Weight
7Kg
Warranty
3 Years
Battery Technology
Lithium
Battery Application
Deep Cycle
Country of Manufacture
China
...Read more
£415.00
Victron Energy AGM Dual Purpose Battery 12V 220Ah – BAT412201084
The Victron Energy 12V 220Ah AGM battery has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches.
Features of the 12V 220Ah AGM battery
Sealed (VRLA) AGM BatteriesAGM stands for Absorbent Glass Mat. In these batteries the electrolyte is absorbed into a glass-fibre mat between the plates by capillary action. As explained in our book ‘Energy Unlimited’, AGM batteries are more suitable for short-time delivery of high currents than gel batteries.
Low Self-DischargeBecause of the use of lead calcium grids and high purity materials, Victron VRLA batteries can be stored during long periods of time without recharge. The rate of self-discharge is less than 2% per month at 20°C. The self-discharge doubles for every increase in temperature by 10°C.Victron VRLA batteries can therefore be stored for up to a year without recharging, if kept under cool conditions.
Exceptional Deep Discharge RecoveryVictron VRLA batteries have exceptional discharge recovery, even after deep or prolonged discharge.Nevertheless repeatedly deep and prolonged discharge has a very negative effect on the service life of all lead acid batteries,Victron batteries are no exception.
Battery Discharging CharacteristicsThe rated capacity of Victron AGM and Gel Deep Cycle batteries refers to 20 hour discharge, in other words: a discharge current of 0,05 C.The rated capacity of Victron Tubular Plate Long Life batteries refers to 10 hours discharge.The effective capacity decreases with increasing discharge current. Please note that the capacity reduction will be even faster in case of a constant power load, such as an inverter.
GTIN
8719076037088
Voltage
12V
Battery Capacity (C20)
220Ah
Cold Cranking
650CCA
Terminal Type
M8
Terminal Layout
Side
Dimensions (Including Terminals)
L522 x W238 x H240mm
Weight
65Kg
Warranty
2 Years
Country of Manufacture
Vietnam
Battery Technology
AGM
Battery Application
Dual Purpose
...Read more
View Product
£399.00
Victron Energy Peak Power Pack 12.8V 20Ah – PPP012020000
The Victron Energy Peak 12.8V 20Ah Power Pack is a complete substitute for heavy lead acid batteries in applications where high currents occur for short time. Being primarily meant for caravan movers, it is equipped with a built-in charger allowing charging from the vehicle electrical system whilst travelling with the caravan. This way the pack will be fully charged upon arrival to the camping site. If necessary, the charging is possible using the supplied adapter via a grid outlet. Charging from a solar panel is also possible.
Features Peak Power Pack 12.8V 20Ah
Lightweight and easy to install– Ideal for mobile applications.
Effective protection against improper use– Ideal for solar power and other applications where excessive discharge might quickly cause damage to lead acid batteries.
Storage mode– Reduces power consumption to almost zero. Prevents damage due to excessive discharge of the battery during storage.
Remote control with status indicator
– Push button (supplied) with a dual-colour LED status indicator:
Short push of the button: high capacity output activated for 30 minutes (mover applications), red LED
Hold down for 2 seconds: high capacity output always activated, slow flashing red LED.
Hold down for 5 seconds: storage mode, blue LED flashes 10 times
Battery is charged via input 1: slow flashing blue LED
Battery fully charged: blue LED
Overload or overheating: flashing red LED
VE.Direct port: can be connected to a PC or smartphone(VE.Direct to USB or VE.Direct Bluetooth Smart dongle required)
Operation:
Output 1: on / 30-minute timer / off
Output 2: on/off
Input 1: on/off
Monitoring:
Battery voltage
Temperature and alarms
Brand
Victron Energy
Manufacturer Part Number
PPP012020000
gtin
8719076017318
Voltage
12.8V
Battery Capacity (C20)
20Ah
Dimensions (Including Terminals)
H132 x W190 x D172mm
Weight
3.8Kg
Warranty
3 Years
Battery Technology
Lithium
Country of Manufacture
India
...Read more
View Product
£375.00
Victron Energy AGM Dual Purpose Battery 12V 165Ah (M8) - BAT412151085
The AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches.VRLA AGM: design life 7-10 yearsFeaturesVRLA technologyVRLA stands for Valve Regulated Lead Acid, which means that the batteries are sealed. Gas will escape through the safety valves only in case of overcharging or cell failure.VRLA batteries are maintenance free for life.Sealed (VRLA) AGM BatteriesAGM stands for Absorbent Glass Mat. In these batteries the electrolyte is absorbed into a glass-fibre mat between the plates by capillary action. As explained in our book ‘Energy Unlimited’, AGM batteries are more suitable for short-time delivery of high currents than gel batteries.Low Self-DischargeBecause of the use of lead calcium grids and high purity materials, Victron VRLA batteries can be stored during long periods of time without recharge. The rate of self-discharge is less than 2% per month at 20°C. The self-discharge doubles for every increase in temperature by 10°C.Victron VRLA batteries can therefore be stored for up to a year without recharging, if kept under cool conditions.Exceptional Deep Discharge RecoveryVictron VRLA batteries have exceptional discharge recovery, even after deep or prolonged discharge.Nevertheless repeatedly deep and prolonged discharge has a very negative effect on the service life of all lead acid batteries, Victron batteries are no exception.Battery Discharging CharacteristicsThe rated capacity of Victron AGM and Gel Deep Cycle batteries refers to 20 hour discharge, in other words: a discharge current of 0,05 C. The rated capacity of Victron Tubular Plate Long Life batteries refers to 10 hours discharge. The effective capacity decreases with increasing discharge current (see table 1). Please note that the capacity reduction will be even faster in case of a constant power load, such as an inverter.
GTIN
8719076037040
Voltage
12V
Battery Capacity (C20)
165Ah
Cold Cranking
600CCA
Terminal Type
M8
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
L485 x W172 x H240mm
Weight
47Kg
Warranty
2 Years
Country of Manufacture
Vietnam
Battery Technology
AGM
Battery Application
Dual Purpose
...Read more
View Product
£374.99
Victron Energy AGM Dual Purpose Battery 12V 165Ah – BAT412151084
The Victron Energy 12V 165Ah AGM battery has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches.
Features of the 12V 165Ah AGM battery
Sealed (VRLA) AGM BatteriesAGM stands for Absorbent Glass Mat. In these batteries the electrolyte is absorbed into a glass-fibre mat between the plates by capillary action. As explained in our book ‘Energy Unlimited’, AGM batteries are more suitable for short-time delivery of high currents than gel batteries.
Low Self-DischargeBecause of the use of lead calcium grids and high purity materials, Victron VRLA batteries can be stored during long periods of time without recharge. The rate of self-discharge is less than 2% per month at 20°C. The self-discharge doubles for every increase in temperature by 10°C.Victron VRLA batteries can therefore be stored for up to a year without recharging, if kept under cool conditions.
Exceptional Deep Discharge RecoveryVictron VRLA batteries have exceptional discharge recovery, even after deep or prolonged discharge.Nevertheless repeatedly deep and prolonged discharge has a very negative effect on the service life of all lead acid batteries,Victron batteries are no exception.
Battery Discharging CharacteristicsThe rated capacity of Victron AGM and Gel Deep Cycle batteries refers to 20 hour discharge, in other words: a discharge current of 0,05 C.The rated capacity of Victron Tubular Plate Long Life batteries refers to 10 hours discharge.The effective capacity decreases with increasing discharge current. Please note that the capacity reduction will be even faster in case of a constant power load, such as an inverter.
Looking to protect the battery against excessive discharge, the BatteryProtect is just what you are after.
Learn more about batteries and battery chargingTo learn more about batteries and charging batteries (including the pro’s and cons of multi-bank charging and intelligent charging), please refer to Electricity on Board.
Want to improve battery charging? Why not take a look at the Victron Energy Battery Sense which measures voltage at the battery bank terminals, errors arising from voltage-loss due to cable resistance are avoided – guaranteeing the correct charge-voltage.
Brand
Victron Energy
Manufacturer Part Number
BAT412151084
GTIN
8719076037033
Voltage
12V
Battery Capacity (C20)
165Ah
Cold Cranking
600CCA
Terminal Type
M8
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
L485 x W172 x H240mm
Weight
47Kg
Warranty
2 Years
Battery Technology
AGM
Battery Application
Deep Cycle
Country of Manufacture
Vietnam
...Read more
View Product
£373.99
Victron Energy Lithium SuperPack 12.8V 60Ah (M6) – BAT512060705
Victron Energy Lithium SuperPack 12.8V 60Ah (M6) – BAT512060705
The SuperPack batteries are extremely easy to install, not needing any additional components.The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
The batteries can be connected in parallel. Series connection is not allowed.
Features
Integrated BMS and safety switch
The SuperPack batteries are extremely easy to install, needing no additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
Abuse proof
A lead-acid battery will fail prematurely due to sulfation:
If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
If it is left partially charged or worse, fully discharged.
A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion compared to lead-acid.
The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are exceeded.
Efficient
In several applications (especially off-grid solar), energy efficiency can be of crucial importance.
The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%.
The round-trip energy efficiency of a Li-ion battery is 92%.
The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state).
In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions.
Can be connected in parallel
The batteries can be connected in parallel. Series connection is not allowed. Use in upright position only.
Brand
Victron Energy
Manufacturer Part Number
BAT512060705
gtin
8719076047544
Voltage
12.8V
Battery Capacity (C20)
60Ah
Terminal Type
M6
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
H213 x W229 x D138mm
Weight
9.5Kg
Warranty
3 Years
Battery Technology
Lithium
Battery Application
Deep Cycle
Country of Manufacture
China
...Read more
View Product
£311.46
Victron Energy AGM Super Cycle Battery 12V 125Ah (M8) – BAT412112081
The AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches.
VRLA AGM: design life 7-10 years
Features
A truly innovative battery
The AGM Super Cycle batteries are the result of recent battery electrochemistry developments.
The paste of the positive plates is less sensitive to softening, even in case of repeated 100% discharge of the battery, and new additives to the electrolyte reduce sulfation in case of deep discharge.
Exceptional 100% depth of discharge (DoD) performance
Tests have shown that the Super Cycle battery does withstand at least three hundred 100% DoD cycles.
The tests consist of a daily discharge to 10,8V with I = 0,2C20, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0,2C20.
The two hours rest period in discharged condition will damage most batteries within 100 cycles, but not the Super Cycle battery.
We recommend the Super Cycle battery for applications where an occasional discharge to 100% DoD, or frequent discharge to 60- 80% DoD is expected.
Smaller and lighter
An additional advantage of the new chemistry is a slightly smaller size and less weight compared to our standard deep cycle AGM batteries.
Low internal resistance
The internal resistance is also slightly lower compared to our standard deep cycle AGM batteries
Brand
Victron Energy
Manufacturer Part Number
BAT412112081
GTIN
8719076041832
Voltage
12V
Battery Capacity (C20)
125Ah
Cold Cranking
550CCA
Terminal Type
M8 Insert
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
L330 x W171 x H214mm
Weight
33Kg
Warranty
2 Years
Country of Manufacture
China
Battery Technology
AGM
...Read more
View Product
£261.99
VICTRON ENERGY AGM SUPER CYCLE BATTERY 12V 100AH (M6) – BAT412110081
The AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches.
VRLA AGM: design life 7-10 years
Features
A truly innovative battery
The AGM Super Cycle batteries are the result of recent battery electrochemistry developments.
The paste of the positive plates is less sensitive to softening, even in case of repeated 100% discharge of the battery, and new additives to the electrolyte reduce sulfation in case of deep discharge.
Exceptional 100% depth of discharge (DoD) performance
Tests have shown that the Super Cycle battery does withstand at least three hundred 100% DoD cycles.
The tests consist of a daily discharge to 10,8V with I = 0,2C20, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0,2C20.
The two hours rest period in discharged condition will damage most batteries within 100 cycles, but not the Super Cycle battery.
We recommend the Super Cycle battery for applications where an occasional discharge to 100% DoD, or frequent discharge to 60- 80% DoD is expected.
Smaller and lighter
An additional advantage of the new chemistry is a slightly smaller size and less weight compared to our standard deep cycle AGM batteries.
Low internal resistance
The internal resistance is also slightly lower compared to our standard deep cycle AGM batteries
Brand
Victron Energy
Manufacturer Part Number
BAT412110081
Voltage
12
Capacity (C20)
100
Cold Cranking (EN)
500
Terminal Type
M6 Insert
Terminal Layout
LH+
Dimensions (Including Terminals)
L260 x W168 x H215mm
Weight (kg)
26
Battery Technology
AGM
Battery Application
Super Cycle
Warranty
2 Years
...Read more
View Product
£249.45
Victron Energy AGM Dual Purpose Battery 12V 110Ah – BAT412101084
Victron Energy AGM Dual Purpose Battery 12V 110Ah – BAT412101084
The AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches.
VRLA AGM: design life 7-10 years
Features
VRLA technology
VRLA stands for Valve Regulated Lead Acid, which means that the batteries are sealed. Gas will escape through the safety valves only in case of overcharging or cell failure.
VRLA batteries are maintenance free for life.
Sealed (VRLA) AGM Batteries
AGM stands for Absorbent Glass Mat. In these batteries the electrolyte is absorbed into a glass-fibre mat between the plates by capillary action. As explained in our book ‘Energy Unlimited’, AGM batteries are more suitable for short-time delivery of high currents than gel batteries.
Low Self-Discharge
Because of the use of lead calcium grids and high purity materials, Victron VRLA batteries can be stored during long periods of time without recharge. The rate of self-discharge is less than 2% per month at 20°C. The self-discharge doubles for every increase in temperature by 10°C.
Victron VRLA batteries can therefore be stored for up to a year without recharging if kept under cool conditions.
Exceptional Deep Discharge Recovery
Victron VRLA batteries have exceptional discharge recovery, even after deep or prolonged discharge.
Nevertheless repeatedly deep and prolonged discharge has a very negative effect on the service life of all lead acid batteries, Victron batteries are no exception.
Battery Discharging Characteristics
The rated capacity of Victron AGM and Gel Deep Cycle batteries refers to 20 hour discharge, in other words: a discharge current of 0,05 C. The rated capacity of Victron Tubular Plate Long Life batteries refers to 10 hours discharge. The effective capacity decreases with increasing discharge current (see table 1). Please note that the capacity reduction will be even faster in case of a constant power load, such as an inverter.
Brand
Victron Energy
Manufacturer Part Number
BAT412101084
GTIN
8719076036968
Voltage
12V
Battery Capacity (C20)
110Ah
Cold Cranking
500CCA
Terminal Type
M8
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
L330 x W171 x H220mm
Weight
32Kg
Warranty
2 Years
Country of Manufacture
Vietnam
Battery Technology
AGM
Battery Application
Dual Purpose
...Read more
View Product
£159.99
Victron Energy Lithium SuperPack 12.8V 20Ah (M5) - BAT512020705
Victron Energy Lithium SuperPack 12.8V 20Ah (M5) - BAT512020705
The SuperPack batteries are extremely easy to install, not needing any additional components.The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
The batteries can be connected in parallel. Series connection is not allowed.
Features
Integrated BMS and safety switch
The SuperPack batteries are extremely easy to install, needing no additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
Abuse proof
A lead-acid battery will fail prematurely due to sulfation:
If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
If it is left partially charged or worse, fully discharged.
A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion compared to lead-acid.
The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are exceeded.
Efficient
In several applications (especially off-grid solar), energy efficiency can be of crucial importance.
The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%.
The round-trip energy efficiency of a Li-ion battery is 92%.
The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state).
In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions.
Can be connected in parallel
The batteries can be connected in parallel. Series connection is not allowed. Use in upright position only.
Brand
Victron Energy
Manufacturer Part Number
BAT512020705
gtin
8719076047537
Voltage
12.8V
Battery Capacity (C20)
20Ah
Terminal Type
M6
Terminal Layout
Right Hand Positive
Dimensions (Including Terminals)
H167 x W181 x D77mm
Weight
3.5Kg
Warranty
3 Years
Battery Technology
Lithium
Battery Application
Deep Cycle
Country of Manufacture
China
...Read more
View Product
0 Kits Selected✕
Victron AGM Batteries: Reliable and Robust
AGM (Absorbent Glass Mat) batteries represent a significant advancement over traditional lead-acid batteries. They are specifically designed for demanding environments and applications where reliability and maintenance-free operation are crucial.
Key Advantages:
-
Enhanced Durability and Safety: The AGM technology ensures that the electrolyte is absorbed in a glass mat, making these batteries more resistant to vibration and less prone to leakage compared to standard lead-acid batteries.
-
Low Self-Discharge Rate: Victron AGM batteries have a very low self-discharge rate, making them ideal for seasonal or infrequent use, such as in backup systems or seasonal recreational vehicles.
-
Deep Discharge Recovery: These batteries are well-suited for applications where deep discharges occur regularly. They are designed to recover from deep discharge events, ensuring a longer lifespan.
-
Wide Operating Temperature Range: AGM batteries can operate effectively over a wide range of temperatures, making them suitable for diverse environmental conditions.
-
Cost-Effectiveness: In terms of initial investment, AGM batteries are generally more cost-effective than lithium batteries, making them a preferred choice for cost-sensitive applications.
Victron Lithium Batteries: High Performance and Efficiency
Victron's Lithium batteries represent the cutting edge in battery technology, offering unparalleled performance, especially in terms of efficiency, weight, and size.
Key Advantages:
-
Exceptional Energy Density: Lithium batteries are significantly lighter and more compact than AGM batteries, offering a higher energy density. This makes them ideal for mobile applications where space and weight are critical factors.
-
Longer Lifespan: These batteries can handle many more charge and discharge cycles than AGM batteries, greatly extending their operational lifespan and reducing the long-term cost of ownership.
-
Rapid Charging and High-Load Performance: Lithium batteries can be charged much faster than AGM batteries and are capable of handling higher load currents, making them suitable for high-power applications.
-
Integrated Battery Management Systems (BMS): Victron’s lithium batteries come with integrated BMS that protect the battery from issues like overcharging, deep discharge, high temperature, and excessive current.
-
Greater Usable Capacity: Unlike AGM batteries, lithium batteries can be discharged more deeply without risking damage, providing a greater usable capacity.
Choosing the Right Battery for Your Needs
Ideal Applications for AGM Batteries:
- Emergency backup systems
- Off-grid renewable energy storage
- Recreational vehicles and marine applications with moderate power needs
Ideal Applications for Lithium Batteries:
- High mobility applications like electric vehicles
- Solar energy storage systems with high usage demands
- Marine and RV applications where space and weight are at a premium
Recommended Full Kits
Loading...
£2,478.90
£2,821.60
£1,980.91
£3,263.59
£2,617.12
£2,559.48
£2,754.31
£2,148.32
Loading...
£2,478.90
£2,821.60
£1,980.91
£3,263.59
£2,034.62
£1,428.63
£1,772.62
£1,335.98
Loading...
£3,526.58
£3,359.58
£2,466.60
£2,368.60
Loading...
£1,287.58
£1,019.18
£1,543.99
£2,373.90
£1,681.63
£1,287.58
£1,019.18
£1,543.99
