Battery Cable & Terminal Lugs
Extra flexible PVC battery cable designed for tough working environments and suitable for low voltage auto and marine applications. Can also be used as welding cable.
Extremely flexible and so is easy to route where needed.
For cable ' Sold by the metre' please enter the number of metres required in the qty box and this will be supplied as a continuous length.
27 Products Found
£44.99
10mm Battery Cables with 40A Fuse and Ring Terminals - 2m Long
10mm Battery Cables with 40A Fuse and Ring Terminals - 2m Long
This cable set is suitable for use in solar systems (from MPPT solar charge controllers to Battery) or with the IP22 230v Mains chargers (Charger to Battery)
This pair of single core 2m cables can be used in solar charging kits as a battery cable between the solar charge controller and your battery, or for many other applications; such as in vehicles, boats or for general wiring purposes.
The cable comes fitted with a fuse holder and 40A midi fuse, along with 8mm ring terminals for quick connection to the battery.
The 10mm2 cross section makes this cable perfect for current up to 40A and ensures negligible power loss.
...Read more
View Product
£29.99

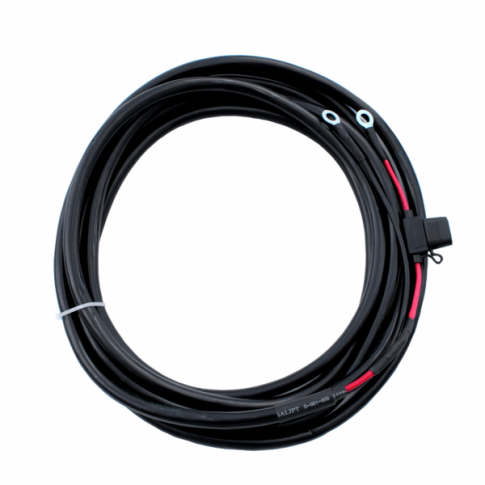

2M 6.0MM2 Dual Core Extension Cable with Fuse Holder, 30A Fuse and Ring Terminals (8MM)
IDEAL MPPT TO BATTERY CABLE
This 2m twin cable can be used in solar charging kits to extend solar panel leads, or as a battery cable between the solar charge controller and your battery, or for many other applications, such as in vehicles, boats or for general wiring needs.
The cable comes fitted with a fuse holder and 30A in-line, as well as 8mm ring terminals which makes a connection to the battery quicker.
6.0mm2 cross section makes this cable perfect for current up to 30A and ensures negligible power loss (for example, for off-grid 12V solar panels and charging kits up to 260W, or large 24V/36V solar panels with higher power rating).
...Read more
View Product
£25.99
Battery Cable 95mm 510 amp High Quality Extra Flex Cable
Battery Cable 95mm 510 amp High Quality Extra Flex Cable
Priced Per Metre
95mm² extra flexible PVC battery cable designed for tough working environments and suitable for low voltage auto and marine applications.
Extremely flexible and so is easy to route where needed.
...Read more
View Product
£22.99
Battery Cable 70mm 485 amp High Quality Extra Flex Cable
Battery Cable 70mm 485 amp High Quality Extra Flex Cable
Priced Per Metre
70mm² extra flexible PVC battery cable designed for tough working environments and suitable for low voltage auto and marine applications.
Extremely flexible and so is easy to route where needed.
...Read more
View Product
£11.99
Battery Cable 50mm 345 amp High Quality Extra Flex Cable
Battery Cable 50mm 345 amp High Quality Extra Flex Cable
Priced Per Metre
50mm² extra flexible PVC battery cable designed for tough working environments and suitable for low voltage auto and marine applications.
Extremely flexible and so is easy to route where needed.
...Read more
View Product
£8.49

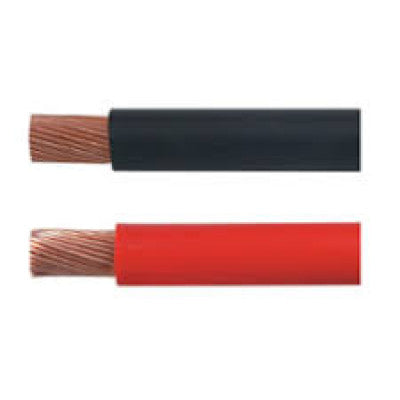

Battery Cable 35mm 240 amp High Quality Extra Flex Cable
SOLD BY THE METRE
Battery Cable 35mm 240 amp High Quality Extra Flex Cable
35mm² extra flexible PVC battery cable designed for tough working environments and suitable for low voltage auto and marine applications.
Extremely flexible and so is easy to route where needed.
Outer Cable Size 12mm
...Read more
View Product
£6.99
Battery Cable 25mm 170amp High Quality Extra Flex Cable
Flexible Battery Cable 25mm² - sold by the Metre
Nominal current rating: 170A
No./size of conductors: 322/0.30mm
Conductor cross section: 25mm²
Maximum overall cable diameter: 10.1mm
Resistance per m at 20°C: 0.00077 Ω
Conductor material: Plain copper
Insulation material: PVC
Working temperature range: -30°C to +70°C
Chemical resistance: Petrol, lubricating oils and acids
...Read more
View Product
£4.99
Battery Cable 16mm 110amp High Quality Extra Flex Cable
SOLD BY THE METRE
Product Code: FP16
Description: Flexible Battery Cable 16mm²
Notes: Current Rating 110AmpsNom. OD 8.3mm
...Read more
View Product
£4.79
Battery Cable 10mm 70 amp High Quality Extra Flex Cable
Battery Cable 10mm 70 amp High Quality Extra Flex Cable
Priced Per Metre
10mm² extra flexible PVC battery cable designed for tough working environments and suitable for low voltage auto and marine applications.
Extremely flexible and so is easy to route where needed.
...Read more
View Product
£2.99
Battery Cable 6mm 50 amp High Quality Extra Flex Cable (Per M)
Battery Cable 6mm 50 amp High-Quality Extra Flex Cable - Priced Per Metre
6mm² extra flexible PVC battery cable designed for tough working environments and suitable for low voltage auto and marine applications.
Extremely flexible and is easy to route where needed.
...Read more
View Product
£2.79

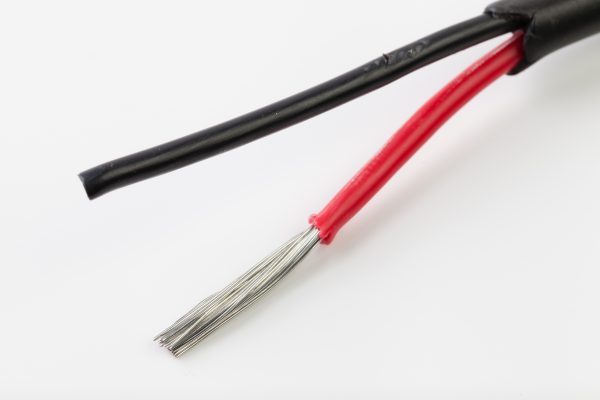

Round 2 Core 2.5mm² Black Thin Wall Cable (Sold Per Metre)
Auto Marine thin wall electrical cable, with 2.5mm² cross-section in accordance with ISO 6722-1:2011 (Class B). This cable features a multi-strand twin-core copper conductor manufactured to BS EN 60228:2005 which is then insulated in a hard grade black PVC insulation. This PVC sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils, and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight-saving benefits which is particularly useful in big wiring harnesses.
Approvals
Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005
Maximum Load Description
12V = 348 Watts, 24V = 696 Watts
Temperature Range
-40°C to +105°C (with excursions to 120°C max)
Type
PVC Twin Core Cables
Voltage Description
Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits)
Brand
AMC
Style
Thin Wall Cable
Cable Conductor
Plain Copper
Cable Cores
2 Core
Colour
Black
Country of Origin
United Kingdom
Unit of Sale
1 Metre
Cable Inner Colours
Black & Red
Cable Insulation
Hard Grade PVC
Conductor Specifications
2 x 35/0.30 mm
Cable Conductor Cross Section Description
2.5mm²
Diameter Description
Max Outside Diameter: 6.7mm
Resistance Per Metre at 20degC
0.00760 ohms
Shape Description
Round
Amps Description
Nominal Current Rating: 29A
...Read more
View Product
£1.74
Battery Crimp Cable Lugs 10mm Hole for 95mm Cable (Sold in 1's)
Battery Cable Lugs 10mm Hole for 95mm Cable (Sold in 1's)
Cable Size: 95mm
Stud Hole: 10mm
...Read more
View Product
£1.74
Battery Crimp Cable Lugs 8mm Hole for 95mm Cable (Sold in 1's)
Battery Cable Lugs 8mm Hole for 95mm Cable (Sold in 1's)
Cable Size: 95mm
Stud Hole: 8mm
...Read more
View Product
£1.49
Battery Crimp Cable Lugs 10mm Hole for 70mm Cable (Sold in 1's)
Battery Cable Lugs 10mm Hole for 70mm Cable (Sold in 1's)
Cable Size: 70mm
Stud Hole: 10mm
...Read more
View Product
£1.49
Battery Crimp Cable Lugs 8mm Hole for 70mm Cable (Sold in 1's)
Battery Cable Lugs 8mm Hole for 70mm Cable (Sold in 1's)
Cable Size: 70mm
Stud Hole: 8mm
...Read more
View Product
£1.09
Battery Crimp Cable Lugs 10mm Hole for 50mm Cable (Sold in 1's)
Battery Cable Lugs 10mm Hole for 50mm Cable (Sold in 1's)
Cable Size: 50mm
Stud Hole: 10mm
...Read more
View Product
£1.09
Battery Crimp Cable Lugs 8mm Hole for 50mm Cable (Sold in 1's)
Battery Cable Lugs 8mm Hole for 50mm Cable (Sold in 1's)
Cable Size: 50mm
Stud Hole: 8mm
...Read more
View Product
£0.89
Battery Crimp Cable Lugs 10mm Hole for 35.0mm Cable (Sold in 1's)
Battery Cable Lugs 10mm Hole for 35.0mm Cable (Sold in 1's)
Cable Size: 35mm
Stud Hole: 10mm
...Read more
View Product
£0.89
Battery Crimp Cable Lugs 8mm Hole for 35.0mm Cable (Sold in 1's)
Battery Cable Lugs 8mm Hole for 35.0mm Cable (Sold in 1's)
Cable Size: 35mm
Stud Hole: 8mm
...Read more
View Product
£0.69
Battery Crimp Cable Lugs 10mm Hole for 25mm Cable (Sold in 1's)
Battery Cable Lugs 10mm Hole for 10mm Cable (Sold in 1's)
Cable Size: 25mm
Stud Hole: 10mm
...Read more
View Product
£0.69
Battery Crimp Cable Lugs 8mm Hole for 25mm Cable (Sold in 1's)
Battery Cable Lugs 8mm Hole for 10mm Cable (Sold in 1's)
Cable Size: 25mm
Stud Hole: 8mm
...Read more
View Product
£0.43
Battery Crimp Cable Lugs 10mm Hole for 16mm Cable (Sold in 1's)
Battery Cable Lugs 10mm Hole for 16mm Cable (Sold in 1's)
Cable Size: 16mm
Stud Hole: 10mm
...Read more
View Product
£0.43
Battery Crimp Cable Lugs 10mm Hole for 10mm Cable (Sold in 1's)
Battery Cable Lugs 10mm Hole for 10mm Cable (Sold in 1's)
Cable Size: 10mm
Stud Hole: 10mm
...Read more
View Product
£0.43
Battery Crimp Cable Lugs 8mm Hole for 16mm Cable (Sold in 1's)
Battery Cable Lugs 8mm Hole for 16mm Cable (Sold in 1's)
Cable Size: 16mm
Stud Hole: 8mm
...Read more
View Product
£0.43
Battery Crimp Cable Lugs 8mm Hole for 10mm Cable (Sold in 1's)
Battery Cable Lugs 8mm Hole for 10mm Cable (Sold in 1's)
Cable Size: 10mm
Stud Hole: 8mm
...Read more
View Product
£0.33
Battery Crimp Cable Lugs 10mm Hole for 6mm Cable (Sold in 1's)
Battery Cable Lugs 10mm Hole for 6mm Cable (Sold in 1's)
Cable Size: 6mm
Stud Hole: 10mm
...Read more
View Product
£0.33
Battery Crimp Cable Lugs 8mm Hole for 6mm Cable (Sold in 1's)
Battery Cable Lugs 8mm Hole for 6mm Cable (Sold in 1's)
Cable Size: 6mm
Stud Hole: 8mm
...Read more
View Product
