Battery Monitors
Van Junkies offer Battery Monitors from both the Victron BMV range and The Smart Battery Shunts.
The BMV's are high precision battery monitors. The essential function of a battery monitor is to calculate ampere-hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.
The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
15 Products Found
£63.99
Victron Energy SmartShunt 300A/50mV SHU050130050
Victron Energy SmartShunt 300A SHU050130050: Affordable, Accurate Battery Monitoring Solution
If you're looking for a precise and cost-effective way to monitor your battery’s health, the Victron Energy SmartShunt 300A SHU050130050 is a fantastic choice. Designed for those who want detailed, accurate insights without breaking the bank, this SmartShunt is a must-have for any off-grid setup, camper van, RV, or marine application. Here’s what makes it a game-changer:
Compact Yet Powerful
The SmartShunt 300A combines powerful monitoring capabilities within a compact, easy-to-install design. It’s an all-in-one battery monitor without the need for a display since it connects directly to your smartphone or tablet via Bluetooth. Simply download the free VictronConnect app, and you’re ready to track your battery’s performance on your device.
Low-Cost Solution Without Compromise
For those who prioritize budget-friendly solutions, the SmartShunt offers the reliability and precision Victron is known for—at an impressively low price. It’s an ideal choice for users who don’t want to invest heavily but still need a trustworthy battery monitor. The SmartShunt provides valuable information such as battery state of charge, voltage, current, and remaining capacity, all crucial data to keep your system running smoothly.
Easy to Install and Configure
Thanks to its Bluetooth connectivity, installation is straightforward with no additional display wiring. The SmartShunt also features a VE.Direct port for connecting to other Victron devices, ensuring compatibility with a broader Victron Energy system setup. The configuration is simple, and it’s quick to pair with the app, making it accessible for anyone, from first-time users to experienced off-grid enthusiasts.
Accurate Monitoring to Maximise Battery Life
The SmartShunt’s real-time tracking capabilities allow users to monitor their battery closely, which is essential for maximizing battery life and preventing unexpected power loss. With the data provided by the SmartShunt, you can make informed decisions on power usage and maintenance needs, giving you peace of mind during any adventure or application.
Key Features:
Bluetooth connectivity for app monitoring
Low cost without sacrificing accuracy
Compact design that’s easy to install
Works with 12V, 24V, and 48V battery systems
300A continuous current rating for high-performance monitoring
The Victron Energy SmartShunt 300A SHU050130050 proves that you don’t need a hefty budget for high-quality battery monitoring. This low-cost, efficient solution offers all the essential features needed to keep your battery in optimal condition. Whether you’re heading off the grid or want reliable power management for your vehicle, the SmartShunt is the smart, affordable choice.
...Read more
View Product
£106.99

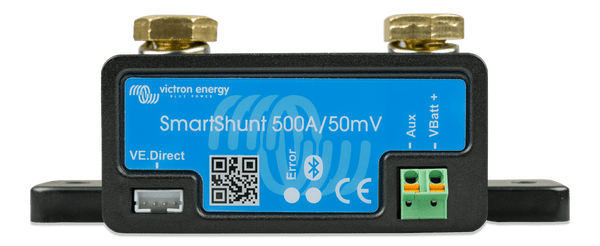

Victron Energy SmartShunt 500A/50mV – SHU050150050
The Victron Smart Shunt is the perfect solution for monitoring and managing your battery system. With its advanced technology and user-friendly design, the Smart Shunt is a reliable and efficient way to ensure that your battery is always performing at its best.
The Smart Shunt is designed to accurately measure the current flowing in and out of your battery, and can be easily connected to any battery system. This allows you to monitor the state of your battery in real-time, and make sure that it is always charged and ready to go.
In addition to its monitoring capabilities, the Smart Shunt also has a number of advanced features that make it even more useful. For example, it has an integrated Bluetooth module that allows you to connect to your smartphone or tablet, so you can access all of the data and settings from the Smart Shunt on your mobile device.
The Smart Shunt also includes a built-in relay that can be used to control other devices, such as a generator or an inverter. This means that you can use the Smart Shunt to automatically start or stop other devices, depending on the state of your battery.
Overall, the Victron Smart Shunt is a powerful and versatile tool that can help you better manage your battery system. Whether you're a professional or a hobbyist, the Smart Shunt is the perfect choice for anyone looking to improve the performance and reliability of their battery system.
The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
If you are looking for different size Victron SmartShunts:
Victron Energy SmartShunt 500A/50mV – SHU050150050
Victron 1000A 12V/24V/48V Battery Monitoring Smartshunt With Bluetooth - SHU050210050

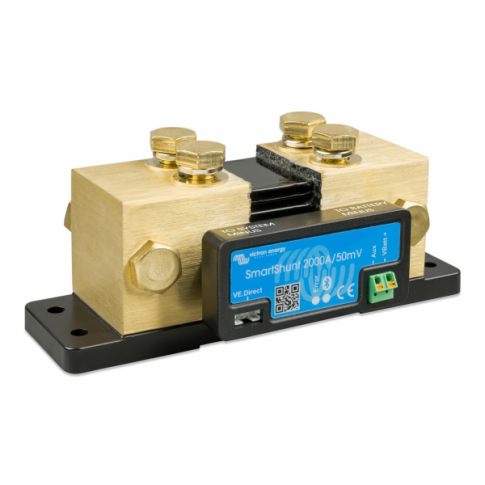

Victron 2000A 12V/24V/48V Battery Monitoring Smartshunt With Bluetooth - SHU050220050
Differences compared to BMV712 Battery Monitor
No programmable visual and audible alarm.
No programmable relay.
Datasheet
Victron Smartshunt Datasheet
Video
...Read more
View Product
£121.99

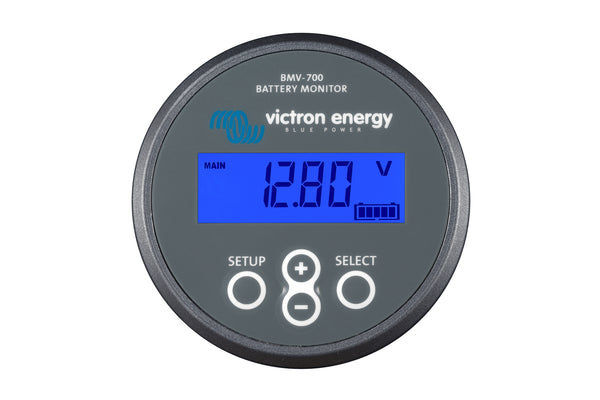

Victron BMV-700 Battery Monitor (1 Battery/Bank) - BAM010700000
Victron BMV-700 Battery Monitor (1 Battery/Bank) - BAM010700000
The BMV-700 is Victron's new high precision multi-function battery monitor with a host of useful features. It essentially acts as a battery 'fuel gauge' for anyone needing to keep a check on the performance of their battery or battery bank. The information displayed by the BMV-700 includes voltage, current draw, Ah consumed, % charge level, 'time-to-go' and it features a programmable alarm and in-built relay to trigger external equipment under an alarm condition.
The shunt is fitted in-line with the battery's negative cable and the on-board PCB is powered by a fused positive supply. Once the battery monitor is panel-mounted in a suitable location (with or without the supplied square bezel) it is connected to the shunt's PCB using a single RJ12 data/power cable and programmed using the on-board menu.
Can be used with the Victron VE.Direct to Bluetooth Smart Dongle
Box contents
BMV-700
500A/50mV shunt with on-board PCB
RJ12 cable - 10m long
Fused power cable - 2m long
Optional square bezel
Fixings
Instruction manual
Features
Displays: Voltage / Current / Power / Ah Consumed / State of Charge (%) / Time-to-go / Total kWh charged/discharged
Auto re-calibration each time the battery is fully charged (to ensure accuracy is maintained)
Auto-detection of nominal system voltage
Programmable visual and audible alarm
Programmable relay that can be energised/de-energised in an alarm condition
Can be configured for use with other shunts
Suitable for a single battery or a bank of batteries.
Low current consumption
Backlight for display
Quick-install menu and detailed setup menu
V.E Direct communication port for integration with other Victron equipment
Suitable for use with 12V or 24V systems
5-year manufacturer's warranty
Input voltage:9.5 - 95 V DC
Power consumption: 4mA @ 12V (2.9Ah / month) - without relay or backlight
Operating temperature: -20ºC to +50ºC
Battery capacity: 20-9999 Ah
Relay: 60V, 1A NO (can be inverted to NC)
Shunt terminal size: M10
Shunt mounting holes: 5.8mm dia. (101.5mm between centres)
Shunt overall dims: 120 (L) x 40 (W) x 50 (H) mm
Monitor front dia: 63mm
Panel hole cut-out dia: 52-53mm
Body depth: 31mm
Square bezel dims: 29 x 29 mm
...Read more
View Product
£155.99

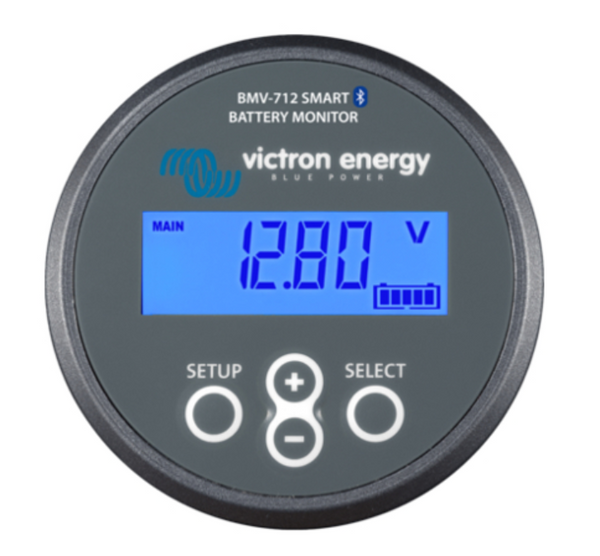

Victron BMV-712 'Smart' Battery Monitor - Bluetooth Built-In (2 Batteries/Banks) - BAM030712000
Victron BMV-712 'Smart' Battery Monitor - Bluetooth Built-In (2 Batteries/Banks) - BAM030712000
The BMV-712 'Smart' is Victron's high precision multi-function battery monitor with built-in Bluetooth. It essentially acts as a battery 'fuel gauge' for anyone needing to keep a check on the performance of their battery or battery bank and can monitor the voltage of a 2nd battery. The information displayed by the BMV-712 includes voltage, current draw, Ah consumed, % charge level, 'time-to-go' and it features a programmable alarm and in-built relay to trigger external equipment under an alarm condition (note: information displayed for 2nd battery is voltage only).
The shunt is fitted in-line with the leisure/house battery's negative cable, the starter/auxiliary battery's negative cable is connected to the shunt's output and fused +ve supplies are taken from each battery into the shunt's 2 inputs. Once the battery monitor is panel-mounted in a suitable location (with or without the supplied square bezel) it is connected to the shunt's PCB using a single RJ12 data/power cable and programmed using the on-board menu.
Built-in Bluetooth allows you to display many of the monitor' features via any Android or Apple device or laptop and most settings of the monitor can be configured with the VictronConnect app
As an alternative to monitoring the voltage of a 2nd battery the BMV-712 shunt's 2nd/auxiliary input can be used for the following:
Temperature monitoring of a single battery/bank using an optional temperature sensor. Battery capacity reduces as temperature increases so the sensor measurement can be fed into the monitor to adjust displayed capacity based on temperature.
Mid-point voltage monitoring of one bank of batteries connected in series (or banks of series-connected batteries joined in parallel). This allows detection of a bad cell or a bad battery which can potentially destroy the other connected batteries by over-charging. The voltages either side of the mid-point are compared and the deviation displayed in % and V, with a programmable alarm providing a warning that the deviation is too great.
Box contents
BMV-712
500A/50mV shunt with on-board PCB
RJ12 cable - 10m long
2x fused power cable - 2m long
Optional square bezel
Fixings
Instruction manual
Features
Displays: Voltage / Current / Power / Ah Consumed / State of Charge (%) / Time-to-go / Total kWh charged/discharged
Auto re-calibration each time the battery is fully charged (to ensure accuracy is maintained)
Auto-detection of nominal system voltage
Programmable visual and audible alarm
Programmable relay that can be energised/de-energised in an alarm condition
Can be configured for use with other shunts
Suitable for 2 batteries or banks of batteries.
Low current consumption
Backlight for display
Quick-install menu and detailed setup menu
Temperature monitoring option for 1 battery or bank
Mid-point voltage monitoring option for 1 battery or bank
V.E Direct communication port for integration with other Victron equipment
Suitable for use with 12V or 24V systems
5-year manufacturer's warranty
Input voltage: 6.5 - 70 V DC
Power consumption: 1mA @ 12V (0.7Ah / month) - without relay or backlight
Operating temperature: -40ºC to +50ºC
Battery capacity: 1-9999 Ah
Relay: 60V, 1A NO (can be inverted to NC)
Shunt terminal size: M10
Shunt mounting holes: 5.8mm dia. (101.5mm between centres)
Shunt overall dims: 120 (L) x 40 (W) x 50 (H) mm
Monitor front dia: 63mm
Panel hole cut-out dia: 52-53mm
Body depth: 31mm
Square bezel dims: 29 x 29 mm
...Read more
View Product
£59.99

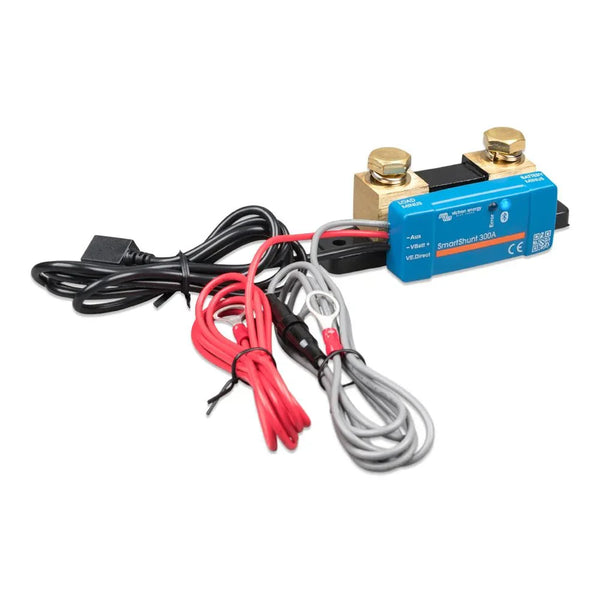

Victron SmartShunt 300A IP65 Battery Monitor- SHU065130050
The SmartShunt IP65 300A is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
Differences compared to BMV-712 Battery Monitor
– No programmable visual and audible alarm
– No programmable relay
Why should I monitor my battery with the SmartShunt IP65 300A?
Batteries are used in a wide variety of applications, mostly to store energy for later use. But how much energy is stored in the battery? No one can tell by just looking at it. The service life of batteries depends on many factors. Battery life may be shortened by under-charging, over-charging, excessively deep discharges, excessive charge or discharge currents, and by high ambient temperature. Monitoring the battery with a battery monitor will give important feedback to the user so that remedial measures can be taken when necessary. Doing this will extend battery life and the battery monitor will quickly pay for itself.
Key Features
Product Code: SHU065130050
Monitor battery voltage, current, state of charge, and time remaining
Track historical data: deepest discharge, average discharge, charge cycles
Waterproof and robust IP65-rated enclosure suitable for all environments
Connect via Bluetooth with the VictronConnect app for easy monitoring on your smartphone or tablet
Optional VE.Direct to USB interface for USB connectivity
Compatible with GX devices for both local and remote monitoring via VRM portal
Auxiliary input for second battery or midpoint voltage monitoring
Seamless integration with Victron solar chargers and select AC chargers via VE.Smart networking
No visual or audible alarm; notifications via VictronConnect app or GX device
Versions Available: 300 A, 500 A, 1000 A, 2000 A
...Read more
View Product
Out of Stock
£124.99

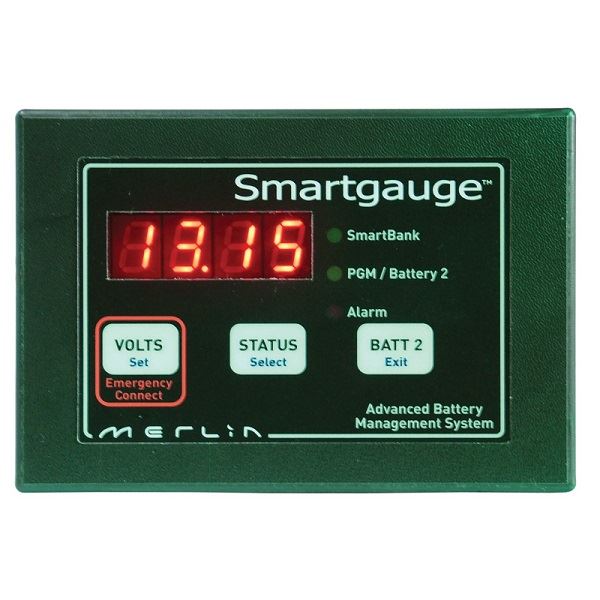

Merlin Smartgauge Battery Monitor MER-19-1001
Merlin Smartgauge Battery Monitor
MER-19-1001
The Merlin SmartGauge Battery Monitor is the most accurate battery monitor currently available today.
Conventional battery monitors use a Current Measurement Shunt to ‘count’ amp-hours in/out of a battery. The problem is that an amp hour changes according to temperature, discharge rate, charge rate, and condition of the batteries. This means that conventional monitors run out of synchronisation and after a time can display misleading information.
The Merlin SmartGauge uses a completely different type of monitoring method. Real-Time battery measurements and proprietary algorithms coupled to computerised battery models allow SmartGauge to always provide real-time battery % of charge remaining AND will never run out of synchronisation with the battery. What’s more, installation is easier and SmartGauge can be easily used and understood by all crew members.
In recent independent tests by leading battery manufacturer, Enersys, The Merlin SmartGauge was found to be more accurate than conventional battery monitors.
The Merlin SmartGauge displays the battery voltage for your domestic battery bank and % remaining. Conventional monitors always show % remaining of theoretical capacity when the battery is new – not actual. Bearing in mind that batteries lose around 10% of capacity per year, this means that inherent inaccuracies grow. SmartGauge displays real-time capacity remaining so you are never surprised by running out of power early.
The Merlin SmartGauge will also display the battery voltage for your engine battery. It is fitted with a high/low voltage alarm for each battery and a low % remaining alarm. A volt-free contact on the rear of SmartGauge allows you to trigger external alarms, auto generator start, etc.
The Merlin SmartGauge’s large LED display is easily read in all lighting conditions and the unit is suitable for 12 and 24V battery banks. Installation comprises of connecting 3 wires and telling the unit which style of battery you have. Programs include: Semi Traction Open Lead/Acid, Leisure Lead/Acid, Sealed Lead/Acid (High Calcium), Gel, AGM, Lifeline, Odyssey, Optima, and custom programs.
Smartguage Specifications:
Voltage Range 8-40VDC (Suitable for 12 and 24V systems)Current (Sleep Mode) 5mACurrent (Display On) <15mAOperating Temp -25 to + 85 degrees CelsiusAccuracy Absolute maximum error of 10% during charge (Self-correcting)Voltage Accuracy +/-0.5%Dimensions – Front Panel 110x76mmDimensions – Body 95x64mmDimensions – Overall depth 28mmWeight 200gProtection Rating IP20 – Front Panel IP65Standards Compliance CE, ISO7637-2
The Merlin Power SmartGauge is an advanced battery monitoring system that measures electricity without the need for a traditional shunt. Instead, it uses a unique method to monitor battery status. Here's how the Merlin Power SmartGauge works:
Voltage-Based Measurement: The SmartGauge primarily uses voltage readings to assess the state of charge (SoC) of the battery. This is different from traditional methods that measure current flowing in and out of the battery using a shunt.
Complex Algorithms: It employs sophisticated algorithms to interpret the voltage data. These algorithms take into account the battery's characteristics, such as its age, type, and usage patterns, to accurately determine the SoC.
Temperature Compensation: The SmartGauge also considers the temperature, as battery voltage can vary with temperature changes. This ensures more accurate readings under different environmental conditions.
History and Usage Patterns: The device learns from the battery's history and usage patterns. Over time, it becomes more accurate in predicting the battery's state by understanding how it behaves under various loads and charge conditions.
Direct Connection: The SmartGauge is directly connected to the battery terminals. This direct connection allows for continuous monitoring of the voltage without the need for a shunt to measure current flow.
User Calibration: Users can calibrate the SmartGauge according to their specific battery type and usage, which enhances the accuracy of the readings.
Display and Interface: The device provides a user-friendly interface that displays key information like the state of charge, voltage, and estimated remaining capacity.
By avoiding the use of a shunt, the Merlin Power SmartGauge offers a simpler installation and reduces potential points of failure in the system. However, it's important to note that while voltage-based measurements can be very accurate, they may not always provide the same level of detail as systems that measure both voltage and current.
Merlin Smartgauge Datasheet
Merlin Smartgauge Datasheet
Merlin Smartgauge Datasheet
Battery Monitoring Info
...Read more
£169.99

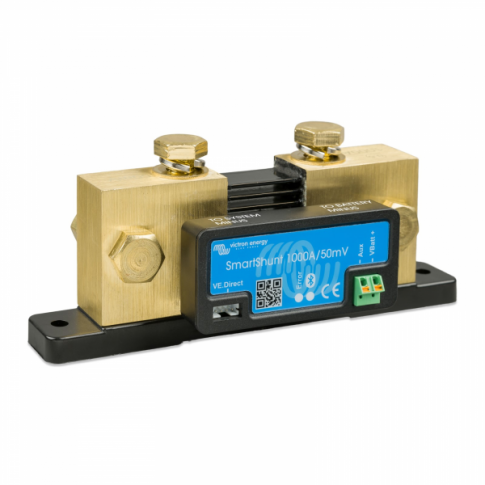

Victron 1000A 12V/24V/48V Battery Monitoring Smartshunt With Bluetooth - SHU050210050
The Victron Smart Shunt is the perfect solution for monitoring and managing your battery system. With its advanced technology and user-friendly design, the Smart Shunt is a reliable and efficient way to ensure that your battery is always performing at its best.
The Smart Shunt is designed to accurately measure the current flowing in and out of your battery and can be easily connected to any battery system. This allows you to monitor the state of your battery in real-time, and make sure that it is always charged and ready to go.
In addition to its monitoring capabilities, the Smart Shunt also has a number of advanced features that make it even more useful. For example, it has an integrated Bluetooth module that allows you to connect to your smartphone or tablet, so you can access all of the data and settings from the Smart Shunt on your mobile device.
The Smart Shunt also includes a built-in relay that can be used to control other devices, such as a generator or an inverter. This means that you can use the Smart Shunt to automatically start or stop other devices, depending on the state of your battery.
Overall, the Victron Smart Shunt is a powerful and versatile tool that can help you better manage your battery system. Whether you're a professional or a hobbyist, the Smart Shunt is the perfect choice for anyone looking to improve the performance and reliability of their battery system.
This Victron 1000A VS series SmartShunt uses a high-precision battery shunt designed to expertly measure vital charging and performance data for your batteries. This smart model features additional advanced functions such as Bluetooth communication ability, a secondary input for optional monitoring of an auxiliary battery bank, and an extremely low current draw from the battery bank (0.7Ah per month for a 12V system). Statistics such as battery voltage, charge / discharge current as energy flows in to and out of the battery, Amp Hours consumed, state of charge and time-to-go can be viewed and the settings can be programmed using the inbuilt Bluetooth via any Bluetooth-enabled mobile device, such as a smartphone or tablet.
Battery data
The SmartShunt measures the vital parameters relating to the battery condition and the energy it receives / provides, and transmits this information via Bluetooth, where it can be viewed by the user (and where some settings can be amended if necessary). This information includes:
Battery voltage: Displayed for the main battery / battery bank, and also for an optional auxiliary battery which can be connected via the secondary input.
Battery midpoint voltage monitoring: For battery banks constructed of several individual batteries, the SmartShunt is able to maintain balance by taking the voltage measurements from the midpoint within the bank, and if the voltage deviates from this point of balance, an alarm will be generated. For such battery banks, the voltage value is also displayed for the battery bank as a whole, and additionally, for the 'top section' and 'bottom section' (i.e. 1st half and 2nd half) of the battery bank.
Battery state of charge: Indicated as a percentage value from 0-100%.
Battery charging / discharging current and power: The current (A) and power (W) flowing out of the battery (load consumption) are displayed as negative values, while the current and power flowing into the battery are displayed as positive values.
Battery temperature: The SmartShunt can be connected to an optional Victron battery temperature sensor (sold separately). This temperature measurement can be used to adjust available battery capacity as the temperature varies. An alarm will be activated when battery temperature falls outside of the safe range.
Amp hours consumed: For example, if 12A is drawn from a fully charged battery during a period of 3 hours, the app will show -36.0Ah consumed by the battery.
Time-to-go: The SmartShunt is able to estimate the approximate length of time that the battery will continue to support the current load, before the battery requires re-charging.
An in-depth data log also records historical data to enable the user to evaluate usage patterns and determine overall battery health. This includes values such as the highest/ lowest recorded voltages (for the main battery and auxiliary battery), deepest recorded discharge, time since last full discharge, cumulative Amp hours drawn, time since last full charge, total energy charged/discharged and many more.
Customisation
The user can set high/low thresholds for battery voltage (either battery), battery state of charge (main battery) or the battery temperature (additional sensor required). If any of the above parameters fall outside of this specified range, the battery shunt will activate an alarm on the connected mobile app.
Advanced communication
This smart battery shunt features inbuilt Bluetooth, enabling the user to wirelessly connect their mobile device to the monitor. Then, using the Victron Connect App on a smartphone or tablet, you will unlock numerous possibilities for advanced programming and remote monitoring of your battery system. A wide range of features are made available, including real-time data transmission, as well as the option to amend battery storage information, program alarms, and set up or join an existing VE.Smart network. Alternatively, the VE Direct USB Cable can be used to establish a connection to a non-Bluetooth-enabled PC/laptop.
The VictronConnect app is compatible with most mobile devices and computers, including Android and iOS smartphones, tablets, iPads, MacBooks, Windows PCs/laptops.
Compatibility
This SmartShunt is suitable for use with any 12V, 24V or 48V Lead Acid / Gel / AGM / Lithium battery or battery bank. The maximum admissible nominal current through the shunt is 1000A.
Additional items
The shunt is also supplied with 2 x 1.5m positive supply cables with a fuse to connect the battery shunt to up to two battery banks.
If you are looking for different size Victron SmartShunts:
Victron Energy SmartShunt 500A/50mV – SHU050150050
Victron 1000A 12V/24V/48V Battery Monitoring Smartshunt With Bluetooth - SHU050210050
Victron 2000A 12V/24V/48V Battery Monitoring Smartshunt With Bluetooth - SHU050220050
Datasheet
Victron Smartshunt Datasheet
Video
...Read more
View Product
£126.90

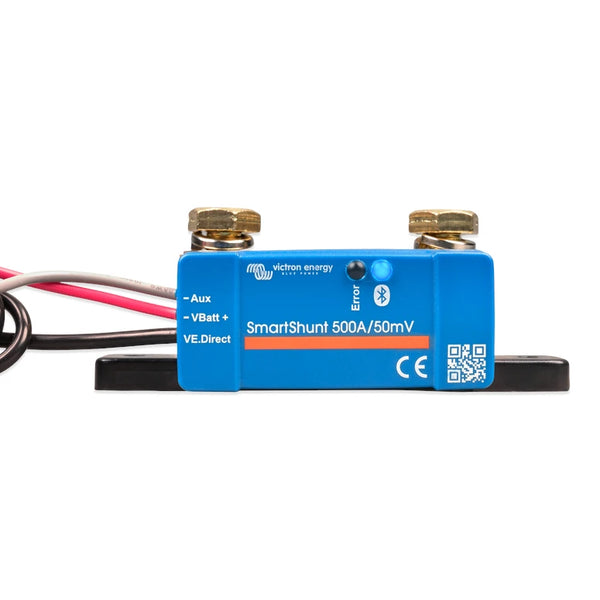

Victron Energy SmartShunt IP65 500A – SHU065150050
The SmartShunt IP65 500A is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
Differences compared to BMV-712 Battery Monitor– No programmable visual and audible alarm– No programmable relay
Why should I monitor my battery with the SmartShunt IP65 500A?Batteries are used in a wide variety of applications, mostly to store energy for later use. But how much energy is stored in the battery? No one can tell by just looking at it. The service life of batteries depends on many factors. Battery life may be shortened by under-charging, over-charging, excessively deep discharges, excessive charge or discharge currents, and by high ambient temperature. Monitoring the battery with a battery monitor will give important feedback to the user so that remedial measures can be taken when necessary. Doing this will extend battery life and the battery monitor will quickly pay for itself.
The VictronConnect appThe VictronConnect app is essential to set up and to monitor the SmartShunt IP65 500A.The app can connect to the battery monitor via:• Bluetooth• USB, via the optional VE.Direct to USB interface
The app is available for the following platforms:• Android• Apple iOS (Note that USB is not supported, it is only possible to connect via Bluetooth)• MacOs• Windows (Note that Bluetooth is not supported, it is only possible to connect via USB).
The VictronConnect app can be downloaded from app stores or from the VictronConnect product page.
Brand
Victron Energy
Manufacturer Part Number
SHU065150050
GTIN
8719076057895
Protection Category
IP65
Bluetooth Enabled
Yes
Dimensions
H46 x W120 x D54mm
Warranty
5 Years
Country of Manufacture
India
...Read more
View Product
£271.99

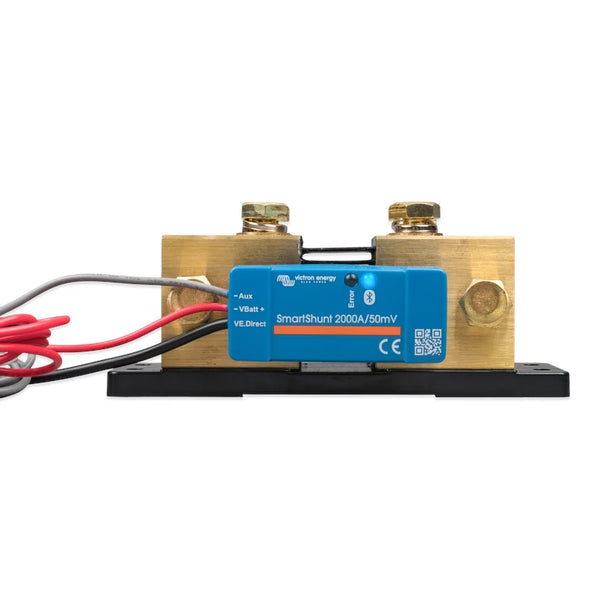

Victron Energy SmartShunt IP65 2000A – SHU065220050
The SmartShunt IP65 2000A is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
Differences compared to BMV-712 Battery Monitor– No programmable visual and audible alarm– No programmable relay
Why should I monitor my battery with the SmartShunt IP65 2000A?Batteries are used in a wide variety of applications, mostly to store energy for later use. But how much energy is stored in the battery? No one can tell by just looking at it. The service life of batteries depends on many factors. Battery life may be shortened by under-charging, over-charging, excessively deep discharges, excessive charge or discharge currents, and by high ambient temperature. Monitoring the battery with a battery monitor will give important feedback to the user so that remedial measures can be taken when necessary. Doing this will extend battery life and the battery monitor will quickly pay for itself.
The VictronConnect appThe VictronConnect app is essential to set up and to monitor the SmartShunt IP65 2000A.The app can connect to the battery monitor via:• Bluetooth• USB, via the optional VE.Direct to USB interface
The app is available for the following platforms:• Android• Apple iOS (Note that USB is not supported, it is only possible to connect via Bluetooth)• MacOs• Windows (Note that Bluetooth is not supported, it is only possible to connect via USB).
The VictronConnect app can be downloaded from app stores or from the VictronConnect product page.
Brand
Victron Energy
Manufacturer Part Number
SHU065220050
GTIN
8719076057918
Protection Category
IP65
Bluetooth Enabled
Yes
Dimensions
H68 x W168 x D100mm
Warranty
5 Years
Country of Manufacture
India
...Read more
View Product
Out of Stock
£169.00

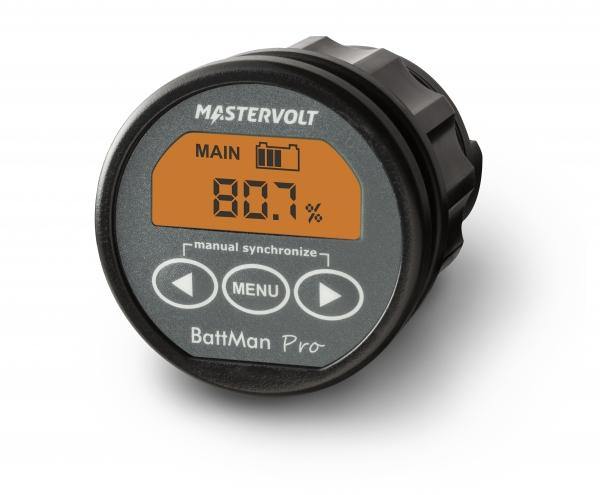

Mastervolt BattMan Pro
Mastervolt BattMan Pro 12/24VDC Battery Monitoring Panel Includes Shunt
Battery monitor, 12/24 V DC with large, splash proof display (IP65) and power bar. Displays remaining time and stores special battery status events. An affordable battery monitor that does exactly that: providing critical information about the status of your battery bank under all circumstances. Moreover it will warn you when your battery bank is empty. Also displays the remaining time until your battery needs to be charged and stores special battery status events.
...Read more
£222.25

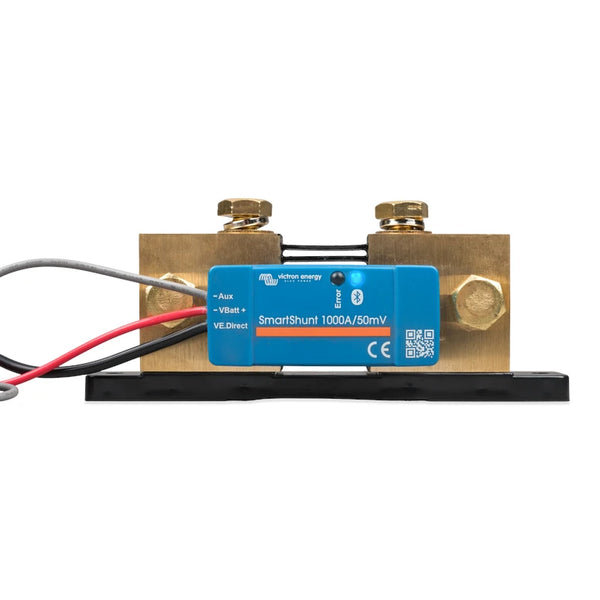

Victron Energy SmartShunt IP65 1000A – SHU065210050
The SmartShunt IP65 1000A is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
Differences compared to BMV-712 Battery Monitor– No programmable visual and audible alarm– No programmable relay
Why should I monitor my battery with the SmartShunt IP65 1000A?Batteries are used in a wide variety of applications, mostly to store energy for later use. But how much energy is stored in the battery? No one can tell by just looking at it. The service life of batteries depends on many factors. Battery life may be shortened by under-charging, over-charging, excessively deep discharges, excessive charge or discharge currents, and by high ambient temperature. Monitoring the battery with a battery monitor will give important feedback to the user so that remedial measures can be taken when necessary. Doing this will extend battery life and the battery monitor will quickly pay for itself.
The VictronConnect appThe VictronConnect app is essential to set up and to monitor the SmartShunt IP65 1000A.The app can connect to the battery monitor via:• Bluetooth• USB, via the optional VE Interface
The app is available for the following platforms:• Android• Apple iOS (Note that USB is not supported, it is only possible to connect via Bluetooth)• MacOs• Windows (Note that Bluetooth is not supported, it is only possible to connect via USB).
The VictronConnect app can be downloaded from app stores or from the VictronConnect product page.
Brand
Victron Energy
Manufacturer Part Number
SHU065210050
GTIN
8719076057901
Protection Category
IP65
Bluetooth Enabled
Yes
Dimensions
H68 x W168 x D75mm
Country of Manufacture
India
Warranty
5 Years
...Read more
View Product
£199.99
Caravan & Campervan Tracking and Monitoring - Location, Battery Status, Inside Temperature & Impact Monitoring
Caravan and campervan remote tracking with Location monitoring, Battery status, Inside temperature and Impact alerts.
Our affordable remote tracking solution for your Caravan, Campervan, Motorhome or Yacht.
Insytly provides you with battery vitals and remote location monitoring at all times, from anywhere.
Batteries, temperature, location, impact, and movement monitoring in one solution with extremely low power usage and monthly subscription.
⦿ Remotely monitor battery data from anywhere in the world.
⦿ Grants insight into the location and status of the vehicle from a centralised dashboard.
⦿ Monitor humidity and ambient temperature
⦿ Connect external sensors and alarms for added security benefits.
⦿ Remotely control up to 8 switches onboard (Relay Module add-on).
15 minute interval data & location pings - £3.99 per month
5 minute interval data & location pings - £6.99 per month
Live Updates - £9.99 per month
Remote Monitoring of Campervan & Caravan Battery Datasheet
...Read more
View Product
£264.89
Victron 2000A 12V/24V/48V Battery Monitoring Smartshunt With Bluetooth - SHU050220050
The Victron Smart Shunt is the perfect solution for monitoring and managing your battery system. With its advanced technology and user-friendly design, the Smart Shunt is a reliable and efficient way to ensure that your battery is always performing at its best.
The Smart Shunt is designed to accurately measure the current flowing in and out of your battery and can be easily connected to any battery system. This allows you to monitor the state of your battery in real-time, and make sure that it is always charged and ready to go.
In addition to its monitoring capabilities, the Smart Shunt also has a number of advanced features that make it even more useful. For example, it has an integrated Bluetooth module that allows you to connect to your smartphone or tablet, so you can access all of the data and settings from the Smart Shunt on your mobile device.
The Smart Shunt also includes a built-in relay that can be used to control other devices, such as a generator or an inverter. This means that you can use the Smart Shunt to automatically start or stop other devices, depending on the state of your battery.
Overall, the Victron Smart Shunt is a powerful and versatile tool that can help you better manage your battery system. Whether you're a professional or a hobbyist, the Smart Shunt is the perfect choice for anyone looking to improve the performance and reliability of their battery system.
This Victron 2000A VS series SmartShunt uses a high-precision battery shunt designed to expertly measure vital charging and performance data for your batteries. This smart model features additional advanced functions such as Bluetooth communication ability, a secondary input for optional monitoring of an auxiliary battery bank, and an extremely low current draw from the battery bank (0.7Ah per month for a 12V system). Statistics such as battery voltage, charge / discharge current as energy flows in to and out of the battery, Amp Hours consumed, state of charge and time-to-go can be viewed and the settings can be programmed using the inbuilt Bluetooth via any Bluetooth-enabled mobile device, such as a smartphone or tablet.
Battery data
The SmartShunt measures the vital parameters relating to the battery condition and the energy it receives / provides, and transmits this information via Bluetooth, where it can be viewed by the user (and where some settings can be amended if necessary). This information includes:
Battery voltage: Displayed for the main battery / battery bank, and also for an optional auxiliary battery which can be connected via the secondary input.
Battery midpoint voltage monitoring: For battery banks constructed of several individual batteries, the SmartShunt is able to maintain balance by taking the voltage measurements from the midpoint within the bank, and if the voltage deviates from this point of balance, an alarm will be generated. For such battery banks, the voltage value is also displayed for the battery bank as a whole, and additionally, for the 'top section' and 'bottom section' (i.e. 1st half and 2nd half) of the battery bank.
Battery state of charge: Indicated as a percentage value from 0-100%.
Battery charging / discharging current and power: The current (A) and power (W) flowing out of the battery (load consumption) are displayed as negative values, while the current and power flowing into the battery are displayed as positive values.
Battery temperature: The SmartShunt can be connected to an optional Victron battery temperature sensor (sold separately). This temperature measurement can be used to adjust available battery capacity as the temperature varies. An alarm will be activated when battery temperature falls outside of the safe range.
Amp hours consumed: For example, if 12A is drawn from a fully charged battery during a period of 3 hours, the app will show -36.0Ah consumed by the battery.
Time-to-go: The SmartShunt is able to estimate the approximate length of time that the battery will continue to support the current load, before the battery requires re-charging.
An in-depth data log also records historical data to enable the user to evaluate usage patterns and determine overall battery health. This includes values such as the highest/ lowest recorded voltages (for the main battery and auxiliary battery), deepest recorded discharge, time since last full discharge, cumulative Amp hours drawn, time since last full charge, total energy charged/discharged and many more.
Customisation
The user can set high/low thresholds for battery voltage (either battery), battery state of charge (main battery) or the battery temperature (additional sensor required). If any of the above parameters fall outside of this specified range, the battery shunt will activate an alarm on the connected mobile app.
Advanced communication
This smart battery shunt features inbuilt Bluetooth, enabling the user to wirelessly connect their mobile device to the monitor. Then, using the Victron Connect App on a smartphone or tablet, you will unlock numerous possibilities for advanced programming and remote monitoring of your battery system. A wide range of features are made available, including real-time data transmission, as well as the option to amend battery storage information, program alarms, and set up or join an existing VE.Smart network. Alternatively, the VE Direct USB Cable can be used to establish a connection to a non-Bluetooth-enabled PC/laptop.
The VictronConnect app is compatible with most mobile devices and computers, including Android and iOS smartphones, tablets, iPads, MacBooks, Windows PCs/laptops.
Compatibility
This SmartShunt is suitable for use with any 12V, 24V or 48V Lead Acid / Gel / AGM / Lithium battery or battery bank. The maximum admissible nominal current through the shunt is 2000A.
Additional items
The shunt is also supplied with 2 x 1.5m positive supply cables with a fuse to connect the battery shunt to up to two battery banks.
If you are looking for different size Victron SmartShunts:
Victron Energy SmartShunt 500A/50mV – SHU050150050
Victron 1000A 12V/24V/48V Battery Monitoring Smartshunt With Bluetooth - SHU050210050
Victron 2000A 12V/24V/48V Battery Monitoring Smartshunt With Bluetooth - SHU050220050
Datasheet
Victron Smartshunt Datasheet
Video
...Read more
View Product
£166.99

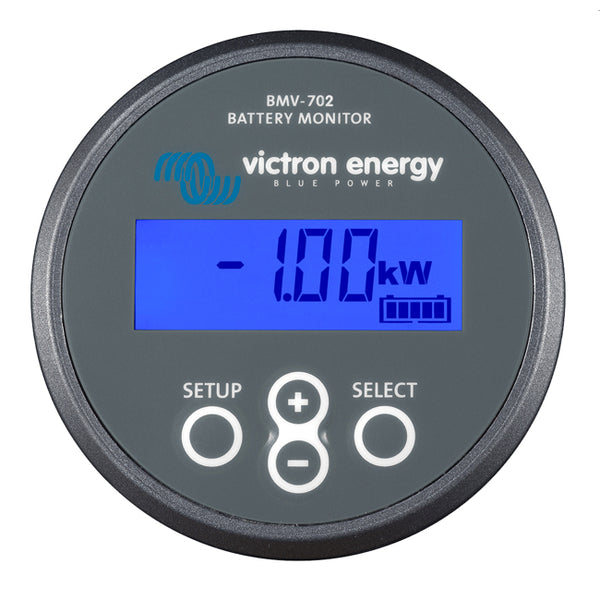

Victron BMV-702 Precision Battery monitor 9-90VDC - BAM010702000
Victron BMV-702 Precision Battery monitor 9-90VDC
Battery ‘fuel gauge’, time-to-go indicator, and much more
The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.
Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts.
The BMV-702 features an additional input which can be programmed to measure the voltage (of a second battery), temperature or midpoint voltage (see below).
Easy to install
All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.
Also included are a separate front bezel for a square or round display appearance; a securing ring for the rear mounting and screws for the front mounting.
Easy to program
A quick install menu and a detailed setup menu with scrolling texts assists the user when going through the various settings. Please consult the manual for details.
New: midpoint voltage monitoring (BMV-702 only)
This feature which is often used in industry to monitor large and expensive battery banks, is now for the first time made available at a low cost, to monitor any battery bank.
A battery bank consists of a string of series connected cells. The midpoint voltage is the voltage halfway along the string. Ideally, the midpoint voltage would be exactly half of the total voltage. In practice, however, deviations will be seen, dependent on many factors such as a different state of charge for new batteries or cells, different temperatures, internal leakage currents, capacities and much more.
Large or increasing deviation of the midpoint voltage, points to improper battery care or a failed battery or cell. Corrective action following a midpoint voltage alarm can prevent severe damage to an expensive battery. Please consult the BMV manual for more information.
Standard features
Battery voltage, current, power, ampere-hours consumed and state of charge
Time to go at the current rate of discharge
Programmable visual and audible alarm
Programmable relay, to turn off non critical loads or to run a generator when needed.
500 Amp quick connect shunt and connection kit
Shunt selection capability up to 10.000 Amps
VE.Direct communication port
Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
Wide input voltage range: 9,5 – 95 V
High current measurement resolution: 10 mA (0,01A)
Low current consumption: 2,9 Ah per month (4 mA) @12V and 2,2 Ah per month (3mA) @ 24V
BMV-702 additional features
Additional input to measure voltage (of a second battery), temperature or midpoint voltage, andcorresponding alarm and relay settings.
Installation: Flush mountFront: 63 mm diameterFront bezel: 69 x 69 mm (2.7 x 2.7 inch)Body diameter: 52mm (2.0 inch)Body depth: 31mm (1.2 inch)
Shunt (included): 500 A / 50 mVCables (included): 10 meter 6 core UTP with RJ12 connectors, and cable with fuse for ‘+’ connection
...Read more
View Product
£402.00

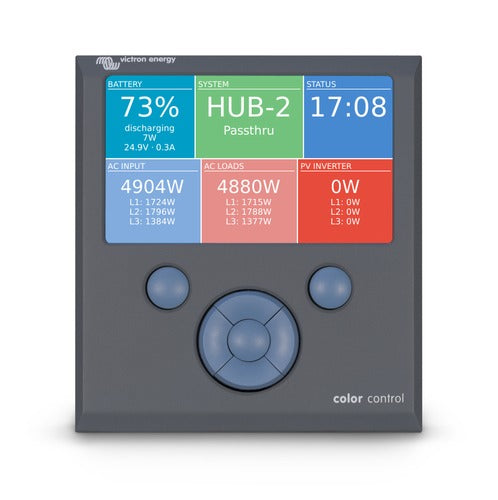

Victron Energy Color Control GX – BPP010300100R
The Color Control GX is the communication-centre of your installation. It offers at-a-glance live information, and lets you control all products connected to it. Full system control is gained – almost anywhere in the world – by accessing your Color Control GX using our free-to-use Victron Remote Management Portal
Intuitive system overview – all you need to know
At a single touch, Color Control GX provides an instant overview of your system: battery state of charge; present power consumption; power harvest from PV; power provision from mains/generator.
The full power of Victron Remote Management
Victron Remote Management (VRM) provides you with full access to the very extensive controls and settings of all system-components which are connected to either your CCGX or Venus GX. It allows remote user and installer login – from anywhere, at anytime. This powerful application also provides for hassle-free diagnostic checks and analysis of archived information.
Automatic Generator start/stop
The Color Control GX can be programmed to auto-start your generator – triggered by low-voltage; high-demand; or battery state of charge. It can be further tailored to delay ignition until the end of ‘quiet’ periods – avoiding accidental nuisance at dead of night.
Remote Console – control everything from anywhere…
A Remote Console feature is available. It’s like carrying the front face of your CCGX control panel around on your phone, or other device.
Energy Storage Systems – 24 hour Monitoring
The Color Control GX manages Energy Storage Systems. It keeps back-up batteries at 100% ; kicks-in during power-cuts; and diverts excess (solar) power to self-consumption – saving you money. For examples and more detailed information see the ESS (Energy Storage System) manual.
Remotely monitor your boat or motorhome electrics
Planning a trip? Remote monitoring of your Color Control GX allows you to make sure your boat or motorhome are ready to go. Color Control GX also allows you to talk to connected equipment from other manufacturers.
Brand
Victron Energy
Manufacturer Part Number
BPP010300100R
Power Supply Voltage Range
8-70 V DC
Dimensions
H130 x W120 x D28mm
Weight (kg)
0.3
Warranty
5 Years
Country of Manufacture
Hungary
...Read more
View Product
0 Kits Selected✕
Recommended Full Kits
Loading...
£2,798.31
£3,231.11
£2,798.31
£3,448.11
£3,231.11
Loading...
£3,559.58
£3,508.58
£2,798.31
£3,231.11
Loading...
£3,960.58
£3,610.58
£3,610.58
£3,460.58
£3,610.58
£3,448.11
£3,460.58
Loading...
£1,287.58
£1,019.18
£1,543.99
£2,086.26
£2,408.61
£2,036.61
£1,287.58
£1,019.18
£1,543.99
£2,086.26
