Circuit Breakers
Rugged thermal circuit breakers are designed for the protection and isolation of high current circuits up to 200A. They are fully waterproof to IP67 and ignition protected for safe marine use. The manual trip can be used to switch off and isolate the circuit if required, is easily re-settable and provides an easy-to-see indication that the breaker has tripped. Well suited for use in engine compartments and bilge areas for protection of high current accessory and auxiliary circuits (examples include high current audio and battery charging applications).
The terminal studs are stainless steel and feature locking washers and rubber insulation covers.
Ideal for use on boats, trucks, agricultural vehicles, motorhomes, buses etc.
14 Products Found
£27.99

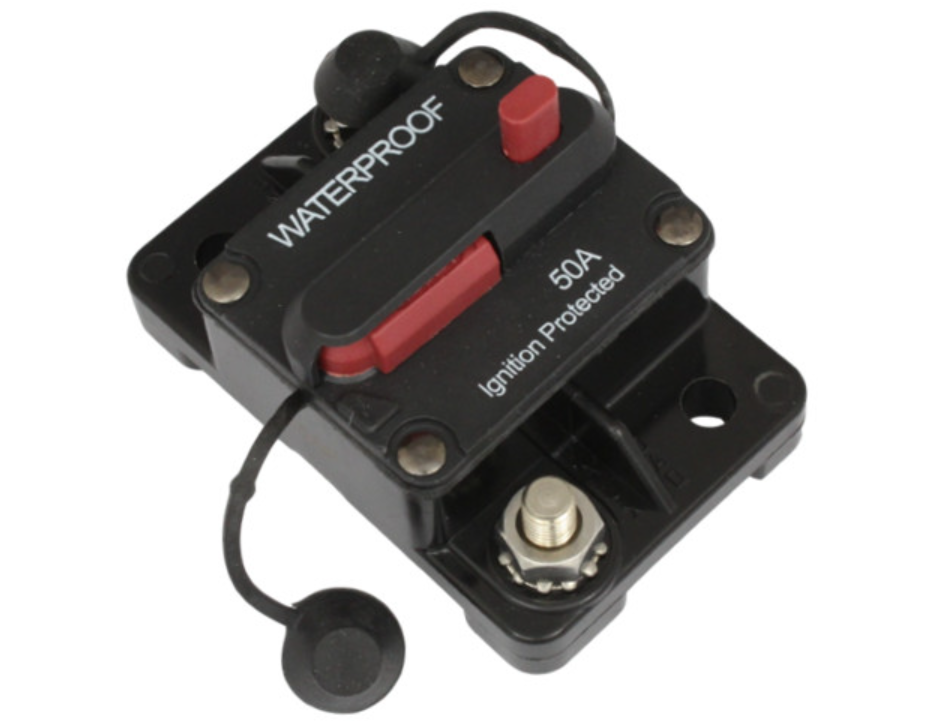

Switchable Surface Mount Waterproof Circuit Breaker 50 Amps – HCB50S
Product Description
Switchable Surface Mount Circuit Breaker 50 Amps – HCB50S
Typically used in auxiliary and accessory circuits in trucks, buses, RV’s and marine systems. Sealed for engine compartment and bilge area applications.
Rating (amps) 50
Stud Size 1/4″
Pack Size 1
Protective Stud Insulators included
Waterproof (IP67)
Surface mounting
Specification:
Specification:-
Voltage
48vdc
Interrupt rating
3000A @ 30vdc
Operating temp.
-32°C – 82°C
Storage temp.
-34°C – 149°C
Material
Black UL rated 94V0 thermo plastic
Ingress protection rating
IP67
Compliances
SAE J1171 (ignition protected) SAE J1625
View all Circuit Breakers
...Read more
View Product
£51.95

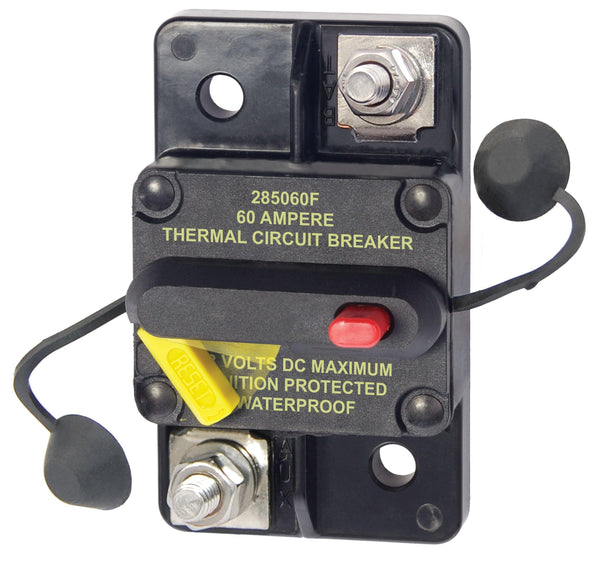

Blue Sea 7184 BS7184 Circuit Breaker, Bus 285 Surface Mount 60A
285-Series Circuit Breaker - Surface Mount 60A BS7184 Blue Sea 7184
Drop in replacement for 185-Series Circuit Breakers
Visible reset lever shows open condition
Ignition protected - Safe for installation aboard gasoline powered boats
Meets SAE J1171 external ignition protection requirements
Weather Resistant
Combines switching and circuit breaker function into one unit*
"Trip Free" - cannot be held closed after trip
* Do not use as a switch where high inrush currents are expected.
...Read more
View Product
£51.95
Blue Sea 7182 BS7182 Circuit Breaker, Bus 285 Surface Mount 40A
285-Series Circuit Breaker - Surface Mount 40A BS7182 Blue Sea 7182
Drop in replacement for 185-Series Circuit Breakers
Visible reset lever shows open condition
Ignition protected - Safe for installation aboard gasoline powered boats
Meets SAE J1171 external ignition protection requirements
Weather Resistant
Combines switching and circuit breaker function into one unit*
"Trip Free" - cannot be held closed after trip
* Do not use as a switch where high inrush currents are expected.
...Read more
View Product
Out of Stock
£26.99

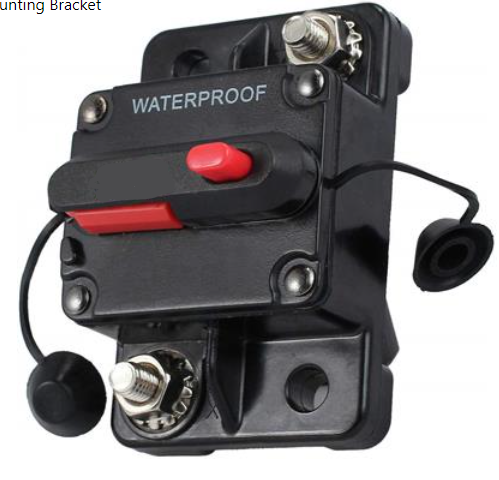

Switchable Surface Mount Waterproof Circuit Breaker 60 Amps – HCB60S
Product Description
Switchable Surface Mount Circuit Breaker 60 Amps – HCB60S
Typically used in auxiliary and accessory circuits in trucks, buses, RV’s and marine systems. Sealed for engine compartment and bilge area applications.
Rating (amps) 60
Stud Size 1/4″
Pack Size 1
Protective Stud Insulators included
Waterproof (IP67)
Surface mounting
Specification:
Specification:-
Voltage
48vdc
Interrupt rating
3000A @ 30vdc
Operating temp.
-32°C – 82°C
Storage temp.
-34°C – 149°C
Material
Black UL rated 94V0 thermo plastic
Ingress protection rating
IP67
Compliances
SAE J1171 (ignition protected) SAE J1625
View all Circuit Breakers
...Read more
Out of Stock
£28.99
Switchable Surface Mount Waterproof Circuit Breaker 200 Amps – HCB200S
Product Description
Switchable Surface Mount Circuit Breaker 200 Amps – HCB200S
Typically used in auxiliary and accessory circuits in trucks, buses, RV’s and marine systems. Sealed for engine compartment and bilge area applications.
Rating (amps) 200
Stud Size 1/4″
Pack Size 1
Protective Stud Insulators included
Waterproof (IP67)
Surface mounting
Specification:
Specification:-
Voltage
48vdc
Interrupt rating
3000A @ 30vdc
Operating temp.
-32°C – 82°C
Storage temp.
-34°C – 149°C
Material
Black UL rated 94V0 thermo plastic
Ingress protection rating
IP67
Compliances
SAE J1171 (ignition protected) SAE J1625
View all Circuit Breakers
...Read more
Out of Stock
£25.99
Switchable Surface Mount Waterproof Circuit Breaker 150 Amps – HCB150S
Product Description
Switchable Surface Mount Circuit Breaker 150 Amps – HCB150S
Typically used in auxiliary and accessory circuits in trucks, buses, RV’s and marine systems. Sealed for engine compartment and bilge area applications.
Rating (amps) 150
Stud Size 1/4″
Pack Size 1
Protective Stud Insulators included
Waterproof (IP67)
Surface mounting
Specification:
Specification:-
Voltage
48vdc
Interrupt rating
3000A @ 30vdc
Operating temp.
-32°C – 82°C
Storage temp.
-34°C – 149°C
Material
Black UL rated 94V0 thermo plastic
Ingress protection rating
IP67
Compliances
SAE J1171 (ignition protected) SAE J1625
View all Circuit Breakers
...Read more
Out of Stock
£25.99
Switchable Surface Mount Waterproof Circuit Breaker 100 Amps – HCB100S
Product Description
Switchable Surface Mount Circuit Breaker 100 Amps – HCB100S
Typically used in auxiliary and accessory circuits in trucks, buses, RV’s and marine systems. Sealed for engine compartment and bilge area applications.
Rating (amps) 100
Stud Size 1/4″
Pack Size 1
Protective Stud Insulators included
Waterproof (IP67)
Surface mounting
Specification:
Specification:-
Voltage
48vdc
Interrupt rating
3000A @ 30vdc
Operating temp.
-32°C – 82°C
Storage temp.
-34°C – 149°C
Material
Black UL rated 94V0 thermo plastic
Ingress protection rating
IP67
Compliances
SAE J1171 (ignition protected) SAE J1625
View all Circuit Breakers
...Read more
Out of Stock
£28.99
Switchable Surface Mount Waterproof Circuit Breaker 80 Amps – HCB80S
Product Description
Switchable Surface Mount Circuit Breaker 80 Amps – HCB80S
Typically used in auxiliary and accessory circuits in trucks, buses, RV’s and marine systems. Sealed for engine compartment and bilge area applications.
Rating (amps) 80
Stud Size 1/4″
Pack Size 1
Protective Stud Insulators included
Waterproof (IP67)
Surface mounting
Specification:
Specification:-
Voltage
48vdc
Interrupt rating
3000A @ 30vdc
Operating temp.
-32°C – 82°C
Storage temp.
-34°C – 149°C
Material
Black UL rated 94V0 thermo plastic
Ingress protection rating
IP67
Compliances
SAE J1171 (ignition protected) SAE J1625
View all Circuit Breakers
...Read more
Out of Stock
£5.22
Blue Sea 7052 BS7052 Circuit Breaker Push Button QC 5A
Push Button Reset Only Quick Connect Circuit Breaker - 5 Amps BS7052 Blue Sea 7052
Branch circuit breakers (can also be used for 24-hour circuit protection)
Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
Compact design enables high density circuit protection configurations
Push-to-reset operation
“Trip Free” design cannot be held “ON” during fault current condition
Ignition protected - Safe for installation aboard gasoline powered boats
Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
...Read more
Out of Stock
£43.99

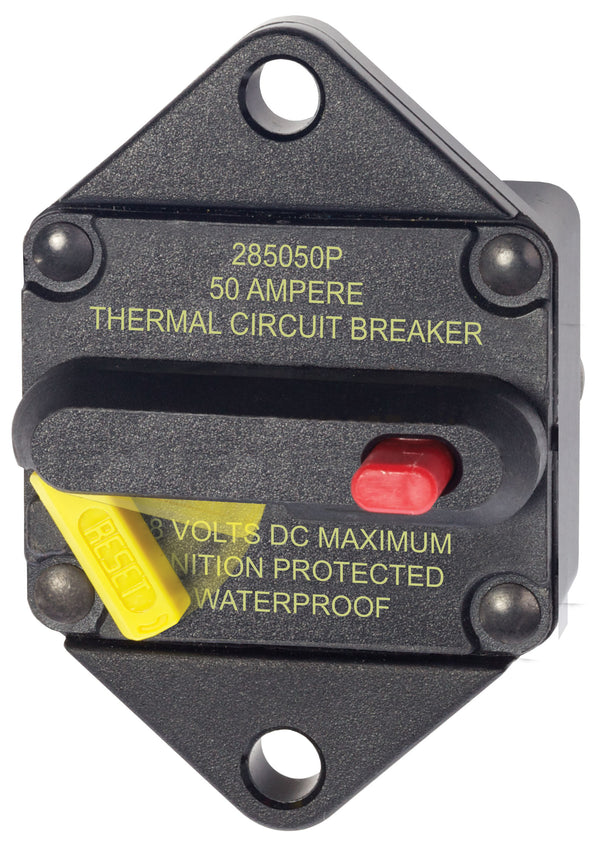

285-Series Circuit Breaker - Panel Mount 50A
285-Series Circuit Breaker - Panel Mount 50A
Drop in replacement for 185-Series Circuit Breakers
Visible reset lever shows open condition
Ignition protected - Safe for installation aboard gasoline powered boats
Meets SAE J1171 external ignition protection requirements
Weather Resistant
Combines switching and circuit breaker function into one unit*
"Trip Free" - cannot be held closed after trip
* Do not use as a switch where high inrush currents are expected.
Specifications
Amperage
50A
Maximum Voltage
48V DC
Mounting
Panel Mount
Circuit Breaker Type
Thermally responsive Bi-metal blade
Terminal Stud
M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque
50 in-lb (5.65 Nm)
Interrupt Capacity
3000A @ 48V
Minimum Operating Temperature
-40° C
Maximum Operating Temperature
85° C
Circuit Breaker Class
Type III - switchable/manual reset - trip free
Weight
0.50lb (0.23 kg)
...Read more
£76.99
Blue Sea 7136 - BS7136 187-Series Circuit Breaker - Surface Mount 30A
Combines switching and circuit protection into a single device*
Clear, single lever operation
"Trip Free" design cannot be held "ON" during fault current condition
Waterproof
Recessed mounting holes for clean appearance
Large Clearance around terminal studs accept heavy gauge wire lugs
Robust 5/16 M8 terminals provide high torque connections
Large lever with vertical/horizontal orientation provides indication of trip status
Ignition protected - Safe for installation aboard gasoline powered boats
Meets SAE J1171 external ignition protection requirements
Amperage
30A
Maximum Voltage
48V DC
Mounting
Surface Mount
Circuit Breaker Type
Thermally responsive Bi-metal blade
Terminal Stud Torque
75 in-lb (8.47 Nm)
Interrupt Capacity
5000A @ 14VDC3000A @ 28VDC1500A @ 48VDC
Minimum Operating Temperature
-40° C
Maximum Operating Temperature
85° C
Case Material
Thermoset Polyester
Circuit Breaker Class
Type III - switchable/manual reset - trip free
Mounting Hole
Accept #10 (M5) Screw
Terminal Stud Size
5/16" - 18
Weight
0.58lb (0.26 kg)
Weight
0.58lb (0.26 kg)
...Read more
View Product
£74.49
Blue Sea 7039 - BS7039 187-Series Circuit Breaker - Panel Mount 50A
Blue Sea187-Series Circuit Breaker - Panel Mount 50A
7039
Combines switching and circuit protection into a single device*
Clear, single lever operation
"Trip Free" design cannot be held "ON" during fault current condition
Waterproof
Recessed mounting holes for clean appearance
Large Clearance around terminal studs accept heavy gauge wire lugs
Robust 5/16 M8 terminals provide high torque connections
Large lever with vertical/horizontal orientation provides indication of trip status
Ignition protected - Safe for installation aboard gasoline powered boats
Specifications
Amperage
50A
Maximum Voltage
48V DC
Mounting
Panel Mount
Circuit Breaker Type
Thermally responsive Bi-metal blade
Terminal Stud Torque
75 in-lb (8.47 Nm)
Interrupt Capacity
5000A @ 14VDC3000A @ 28VDC1500A @ 48VDC
Minimum Operating Temperature
-40° C
Maximum Operating Temperature
85° C
Case Material
Thermoset Polyester
Circuit Breaker Class
Type III - switchable/manual reset - trip free
Mounting Hole
Accept #10 (M5) Screw
Terminal Stud Size
5/16" - 18
Weight
0.5lb (0.23 kg)
Weight
0.50lb (0.23 kg)
...Read more
View Product
Out of Stock
£8.80
Blue Sea 7054 BS7054 Circuit Breaker Push Button QC 10A
Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps BS7054 Blue Sea 7054
Branch circuit breakers (can also be used for 24-hour circuit protection)
Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
Compact design enables high density circuit protection configurations
Push-to-reset operation
“Trip Free” design cannot be held “ON” during fault current condition
Ignition protected - Safe for installation aboard gasoline powered boats
Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
...Read more
Out of Stock
£5.22

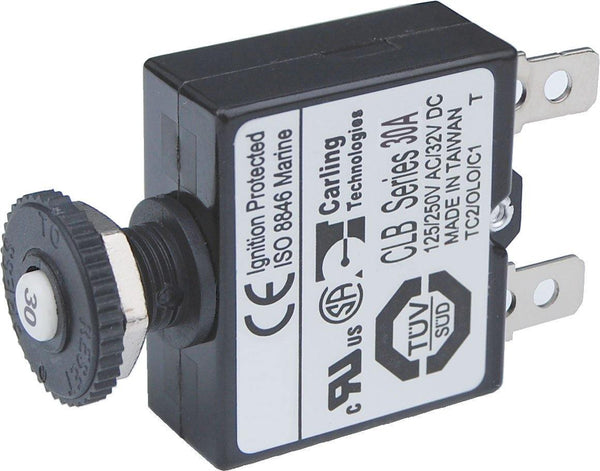

Blue Sea 7059 BS7059 Circuit Breaker Push Button QC 30A
Push Button Reset Only Quick Connect Circuit Breaker - 30 Amps BS7059 Blue Sea 7059
Branch circuit breakers (can also be used for 24-hour circuit protection)
Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
Compact design enables high density circuit protection configurations
Push-to-reset operation
“Trip Free” design cannot be held “ON” during fault current condition
Ignition protected - Safe for installation aboard gasoline powered boats
Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
...Read more
0 Kits Selected✕
Recommended Full Kits
Loading...
£2,798.31
£3,231.11
£2,798.31
£3,448.11
£3,231.11
Loading...
£3,559.58
£3,508.58
£2,798.31
£3,231.11
Loading...
£3,960.58
£3,610.58
£3,610.58
£3,460.58
£3,610.58
£3,448.11
£3,460.58
Loading...
£1,287.58
£1,019.18
£1,543.99
£2,086.26
£2,408.61
£2,036.61
£1,287.58
£1,019.18
£1,543.99
£2,086.26
