Combined Solar & Battery to Battery Charging Kits
Unlocking the Potential of Combined Solar and Battery-to-Battery Charging Units
Combined solar and battery-to-battery charging units are advanced devices that facilitate efficient energy flow and storage by acting as intermediaries between solar panels, batteries, and electrical systems. These units are designed to maximize the benefits of solar power while ensuring seamless energy distribution. Let's delve into their key components and features:
1. Solar Power Integration
At their core, these units are designed to capture solar power efficiently. They can be easily connected to solar panels to harness sunlight and convert it into usable electricity. Most of these units incorporate Maximum Power Point Tracking (MPPT) technology to optimize solar panel performance and energy collection.
2. Battery-to-Battery Charging
One of the standout features of these units is their capability to transfer energy between different battery banks. This is particularly useful in applications where multiple battery systems are employed, such as in marine, RV, or off-grid scenarios. The units intelligently manage energy flow between primary and auxiliary battery banks to ensure optimal charge levels.
4 Products Found
£365.00
NDS Power Service Gold 25amp 3-in-1 B2B‚ MPPT + Mains Battery Charger
The Powerservice Gold fully automatically recharges leisure batteries installed on campers, boats, ambulances and special vehicles. The plus and gold versions integrate a charge regulator for the management of solar panels, and (for the gold version) a 230V mains charger, combining 3 different charging devices in a single device! The device, controlled by a microprocessor, guarantees a full recharge in half the time compared to the alternator, thus offering more autonomy during your stops. This is also possible thanks to the optimization of the 4 charging curves, selectable through a switch that permits to choose the type of battery to be recharged between Lithium, AGM, Gel, Flooded Acid. Each charging curve is divided into 5 stages, including the Desulphation that, besides guaranteeing a perfect charge, improves the overall performance of the battery by helping to restore the efficiency after long stops, extending its life.
Why choose POWERSERVICE?
Full charge in less time, to have full autonomy during your stops.
Extend the life of your batteries with specific charging curves for all battery technologies.
GOLD
Main Features:
Three different supply sources
Microprocessor charge management
5-stage charge with desulfation
Lithium, AGM, Gel, Flooded Acid, battery switch
Up to 40 Ampère recharge each travel hour
Powered by:
Alternator
Solar Panel
Main power supply
For use with 12V systems
Compatible with smart alternator (Euro 5 and 6) vehicles
25A charging current from B2B
Supports up to 250W, 20A solar array
Integrated 230V shore hook up charger
...Read more
View Product
£537.50
Combined Solar & Split Charge kit (Victron 185w Panel & Sterling BBS1230)
Combined Solar & Split Charge kit (Victron 185w Panel & Sterling BBS1230)
The new combined battery-to-battery charger and solar regulator from Sterling Power maximizes the operational usage of the battery-to-battery charger. It does this by adding a solar operation to the product both when the vehicle is in motion and moreover when the vehicle is stationary. This makes it, in effect, also a free 350W solar regulator when the vehicle is stationary. This product has all the benefits of the standard 30A Battery to Battery charger when the engine is on.

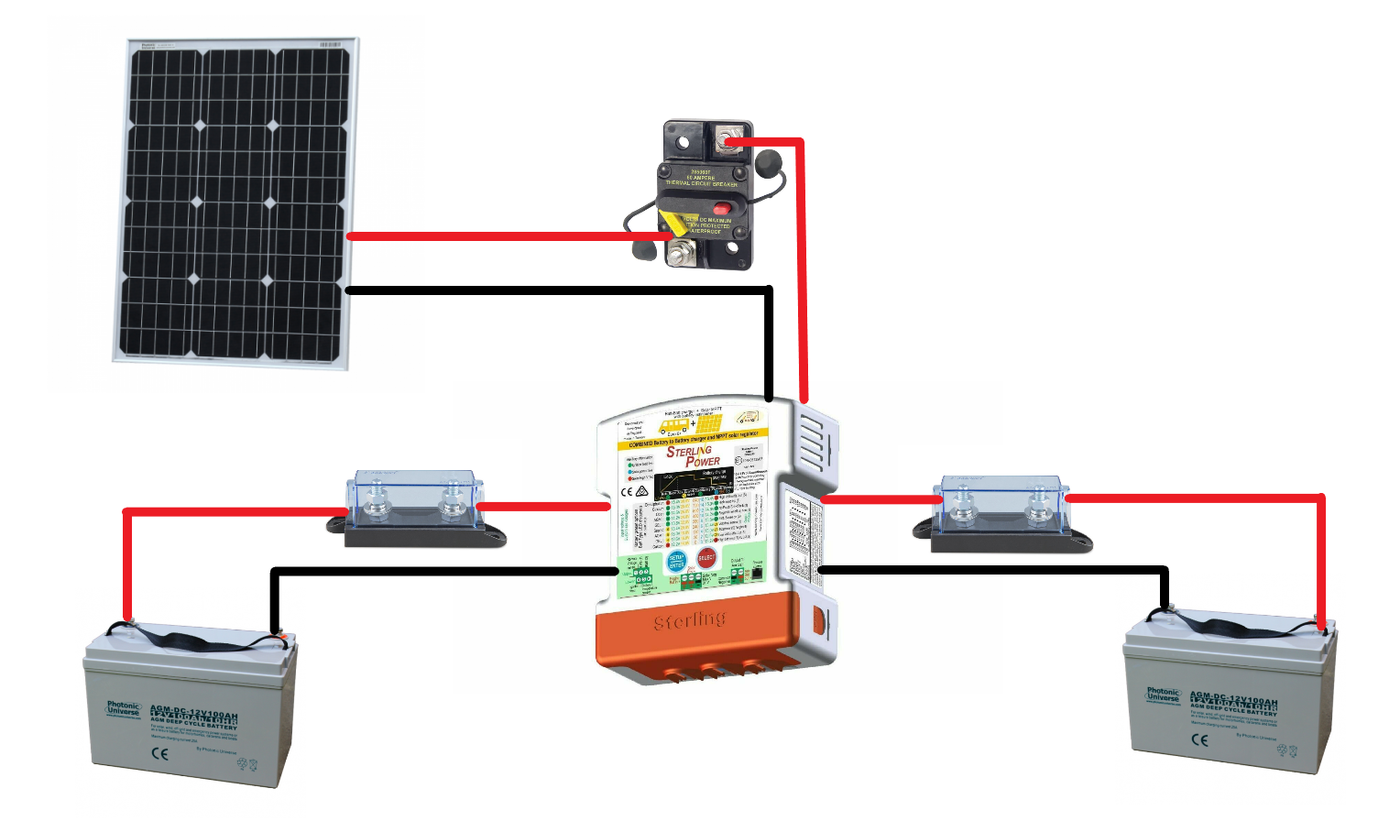

This kit comprises of the following:
Sterling BBS1230 combined B2B Split charger / Solar MMPTVictron 185w Monocrystalline Solar PanelSolar Panel Z Bracket Mount (Call if you require other mount types)6mm (5m) Solar Extension Cables with MC4 connectorsDouble Entry Roof GlandResettable Circuit Breaker16mm Battery Cable ( 1 to 10m ) Red & Black2 x Victron Mega Fuse Holders2 x 60amp Mega FusesCable Terminal Lugs
Features
1) Multiple Activation Modes: Automatic for most non-vehicle applications,
Manual for remote activation.
Regenerative braking (requiring ignition feed),
Automatic regenerative braking, requiring no ignition feed.
2) Current is NOT taken from the input battery and given to the output battery. The B2B uses alternator power to charge the output battery. Manual mode and regenerative braking mode allows you to override this.
3) Safety features:
100% fire proof plastic box.
No screws to corrode.
Thermal power reduction.
Multi-stage fan cooling
4) Night Time Setting: Allows the unit to ran at half the power so the fan noise is kept down.
5) Boost / Reduce Charging: The B2Bs ensure batteries get the correct charging profile irrespective of high or low input voltages.
6) B2B turns on at 13.3V and turns off at 13.0V (x 2 for 24V). Thus, does not drain input battery. Regenerative braking mode allows the input voltage to drop to 12.2V (x 2 for 24V).
7) Customizable Profile: Choose your own charging profile on the front panel.
8) 9 preset battery chemistry options: Including AGM, LiFePO4, Gel, Flooded and sealed lead acid.
9) 4-stage battery charging: The B2B charges batteries between 5-20 times faster than a stand-alone alternator.
10) Very Simple to install: No electronic Control Unit (ECU) issues. No complex wiring. No warranty issues. Fully prepared for smart alternators (regenerative braking).
Remote control is optional.
Brand
Sterling Power
Manufacturer Part Number
BBS1230
DC V (in)
12V
DC V (out)
12V
Current (A)
30A input, 350W solar
Dimensions
L190 x W160 x D50mm
Weight (kg)
1.5Kg
Warranty
2 Years
...Read more
View Product
£909.99
Combined Solar & Split Charge kit (Pro 270w Flex Panel & Sterling BBS1230)
Combined Solar & Split Charge kit (Pro 270w Flexible Panel & Sterling BBS1230)
The new combined battery-to-battery charger and solar regulator from Sterling Power maximizes the operational usage of the battery-to-battery charger. It does this by adding a solar operation to the product both when the vehicle is in motion and moreover when the vehicle is stationary. This makes it, in effect, also a free 350W solar regulator when the vehicle is stationary. This product has all the benefits of the standard 30A Battery to Battery charger when the engine is on.
This kit comprises of the following:
Sterling BBS1230 combined B2B Split charger / Solar MMPT1 x 270w Pro Semi-Flexible Monocrystalline Solar Panel - 5 year warranty6mm (5m) Solar Extension Cables with MC4 connectorsDouble Entry Roof GlandResettable Circuit Breaker16mm Battery Cable ( 1 to 10m ) Red & Black2 x Victron Mega Fuse Holders2 x 60amp Mega FusesCable Terminal LugsSikaflex 522
Features
1) Multiple Activation Modes: Automatic for most non-vehicle applications,
Manual for remote activation.
Regenerative braking (requiring ignition feed),
Automatic regenerative braking, requiring no ignition feed.
2) Current is NOT taken from the input battery and given to the output battery. The B2B uses alternator power to charge the output battery. Manual mode and regenerative braking mode allows you to override this.
3) Safety features:
100% fire proof plastic box.
No screws to corrode.
Thermal power reduction.
Multi-stage fan cooling
4) Night Time Setting: Allows the unit to ran at half the power so the fan noise is kept down.
5) Boost / Reduce Charging: The B2Bs ensure batteries get the correct charging profile irrespective of high or low input voltages.
6) B2B turns on at 13.3V and turns off at 13.0V (x 2 for 24V). Thus, does not drain input battery. Regenerative braking mode allows the input voltage to drop to 12.2V (x 2 for 24V).
7) Customizable Profile: Choose your own charging profile on the front panel.
8) 9 preset battery chemistry options: Including AGM, LiFePO4, Gel, Flooded and sealed lead acid.
9) 4-stage battery charging: The B2B charges batteries between 5-20 times faster than a stand-alone alternator.
10) Very Simple to install: No electronic Control Unit (ECU) issues. No complex wiring. No warranty issues. Fully prepared for smart alternators (regenerative braking).
Remote control is optional.
Brand
Sterling Power
Manufacturer Part Number
BBS1230
DC V (in)
12V
DC V (out)
12V
Current (A)
30A input, 350W solar
Dimensions
L190 x W160 x D50mm
Weight (kg)
1.5Kg
Warranty
2 Years
...Read more
View Product
£671.50
Combined Solar & Split Charge kit (Victron 370w Panels & Sterling BBS1230)
Combined Solar & Split Charge kit (Victron 370w Panels & Sterling BBS1230)
The new combined battery-to-battery charger and solar regulator from Sterling Power maximizes the operational usage of the battery-to-battery charger. It does this by adding a solar operation to the product both when the vehicle is in motion and moreover when the vehicle is stationary. This makes it, in effect, also a free 350W solar regulator when the vehicle is stationary. This product has all the benefits of the standard 30A Battery to Battery charger when the engine is on.
This kit comprises of the following:
Sterling BBS1230 combined B2B Split charger / Solar MMPT2 x Victron 185w Monocrystalline Solar Panel Solar Panel Z Bracket Mount (Call if you require other mount types)6mm (5m) Solar Extension Cables with MC4 connectorsDouble Entry Roof GlandResettable Circuit Breaker16mm Battery Cable ( 1 to 10m ) Red & Black2 x Victron Mega Fuse Holders2 x 60amp Mega FusesCable Terminal Lugs
Features
1) Multiple Activation Modes: Automatic for most non-vehicle applications,
Manual for remote activation.
Regenerative braking (requiring ignition feed),
Automatic regenerative braking, requiring no ignition feed.
2) Current is NOT taken from the input battery and given to the output battery. The B2B uses alternator power to charge the output battery. Manual mode and regenerative braking mode allows you to override this.
3) Safety features:
100% fire proof plastic box.
No screws to corrode.
Thermal power reduction.
Multi-stage fan cooling
4) Night Time Setting: Allows the unit to ran at half the power so the fan noise is kept down.
5) Boost / Reduce Charging: The B2Bs ensure batteries get the correct charging profile irrespective of high or low input voltages.
6) B2B turns on at 13.3V and turns off at 13.0V (x 2 for 24V). Thus, does not drain input battery. Regenerative braking mode allows the input voltage to drop to 12.2V (x 2 for 24V).
7) Customizable Profile: Choose your own charging profile on the front panel.
8) 9 preset battery chemistry options: Including AGM, LiFePO4, Gel, Flooded and sealed lead acid.
9) 4-stage battery charging: The B2B charges batteries between 5-20 times faster than a stand-alone alternator.
10) Very Simple to install: No electronic Control Unit (ECU) issues. No complex wiring. No warranty issues. Fully prepared for smart alternators (regenerative braking).
Remote control is optional.
Brand
Sterling Power
Manufacturer Part Number
BBS1230
DC V (in)
12V
DC V (out)
12V
Current (A)
30A input, 350W solar
Dimensions
L190 x W160 x D50mm
Weight (kg)
1.5Kg
Warranty
2 Years
...Read more
View Product
