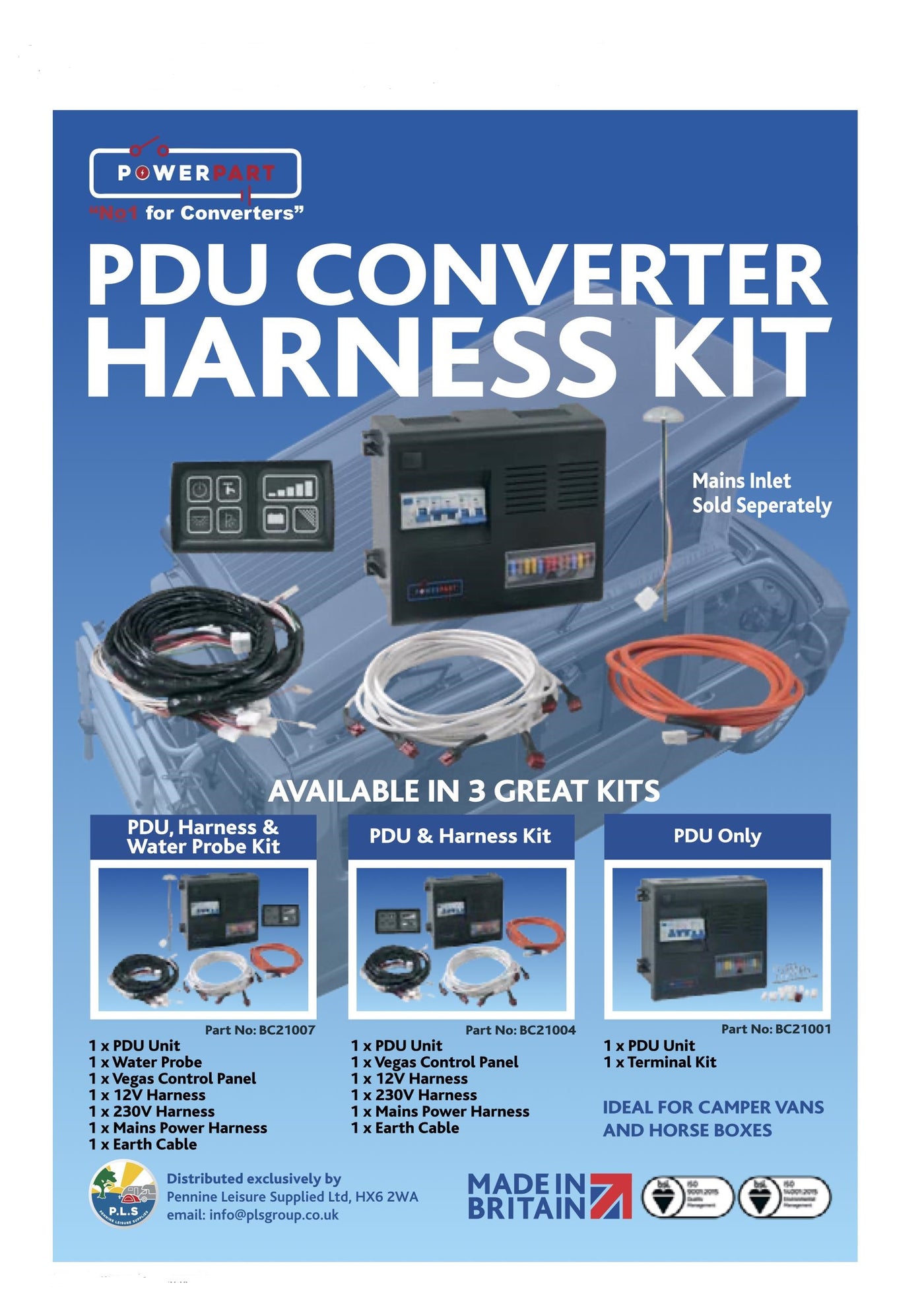

Powerpart Power Distribution Unit Converter Kits
New for 2021 and specially put together for van conversions
Powerpart PDU & Harness kits
These units are designed to run almost all your electric needs in a van conversion
Powerpart have made every effort to make these user friendly for DIY converters and provide a very detailed installation booklet
7 Products Found
£3.99
Water Pump Extension Harness - BC17003
Water Pump Extension Harness - BC17003
Water Pump Extension loom to connect the water pump to the Relay Housing on the BCA Electrical converters wiring harness system.
12 volt, 3 core cable with VL03 connector to fit direct to the Relay Housing socket.
3 core provides +ve and -ve connection as well as "pump running" signal return to the relay housing.
3m Cable with 3 x 1mm2 conductors
This product is part of the BCA Electrical converters' wiring harness system which vastly simplifies the process of installing or replacing an electrical system in a caravan or motorhome.
All the major components of the electrical system are pre-wired with plug and play connectors making it far simpler to build and install the electrical system in a van conversion project.
...Read more
View Product
Out of Stock
£10.99
Control Panel Connection Harness - BC17002
Control Panel Connection Harness - BC17002
Wiring harness to connect the Switch Control Panel to Relay Housing as part of BCA Electrical converters wiring system.
3m long harness allows you to site the control panel where you want it in your van or caravan. Pre-wired with male connectors to fit to the Relay Housing and Switch Control Panel.
This product is part of the BCA Electrical converters' wiring harness system which vastly simplifies the process of installing or replacing an electrical system in a caravan or motorhome.
All the major components of the electrical system are pre-wired with plug and play connectors making it far simpler to build and install the electrical system in a van conversion project.
...Read more
Out of Stock
£314.00
Powerpart Converter PDU & Harness Kit with Water Probe - BC21007
PowerPart Converter PDU & Harness Kit with Water Probe.
The converter PDU harness kit is the ideal solution for converting your van into a camper. With a complete plug and play system, compact yet powerful PDU unit, Sleek Control panel and Water probe (for onboard water tanks) carrying out a conversion couldn’t be easier.
Included in Kit:
PDU, Wiring Harness, Vegas Control Panel (With Water level indicator) &Water probe.
The PDU has a 230V input to a 25amp RCD that provides 4 230V outputs for sockets and appliances through a 16-amp MCB.
It also has a 6amp MCB for the 10amp power supply which converters 230V to 12V.
There are 12 separate fuse protected outputs for:
Auxiliary, Lights, Hob/Oven, Heater, Pump/toilet, Control Panel Ignition, Control Panel Perm, Fridge, Fridge 3S, Permanent, Leisure Battery, Vehicle Battery.
PDU Dimensions – Width: 307mm Depth: 93mm Height: 262mm The Wiring Harness has 300mm Ignition, permanent and water probe options from the PDU and a 1m length from the PDU breaking out into separate 1m lengths to feeds for: x2 lights, x2 Auxiliary, 12V fridge, Heater, Hob/Oven, Toilet, Pump and a 2M length to the Control Panel. Vegas control Panel is a x2 C-Line in size.
The Button Panel has a master switch, Lights switch and Awning light switch, 2amp rated (Connection to awning light from Control Panel) and the meter panel has a voltmeter and water level indicator. Water level probe has a maximum of 335mm that can be cut down to correct depth of water tank.
...Read more
£3.99
Heater Ignition Extension Harness - BC17008
Heater Ignition Extension Harness - BC17008
Heater Extension loom to connect the heater ignition to the Relay Housing on the BCA Electrical converters wiring harness system.
12 volt, 2 core cable with VL02 connector to fit direct to the Relay Housing socket.
3m Cable with 2 x 2.5mm2 conductors
This product is part of the BCA Electrical converters' wiring harness system which vastly simplifies the process of installing or replacing an electrical system in a caravan or motorhome.
All the major components of the electrical system are pre-wired with plug and play connectors making it far simpler to build and install the electrical system in a van conversion project
...Read more
View Product
Out of Stock
£5.50
Vent Fan Extension Harness - BC17004
Vent Fan Extension Harness - BC17004
Roof fan Extension loom to connect the roof light fan to the Relay Housing on the BCA Electrical converters wiring harness system.
12 volt, 2 core cable with VL02 connector to fit direct to the Relay Housing socket.
3m Cable with 2 x 2.5mm2 conductors
This product is part of the BCA Electrical converters' wiring harness system which vastly simplifies the process of installing or replacing an electrical system in a caravan or motorhome.
All the major components of the electrical system are pre-wired with plug and play connectors making it far simpler to build and install the electrical system in a van conversion project.
...Read more
Out of Stock
£258.00
Powerparts BCA Converter Power Distribution & Harness Kit - BC21004
Power Distribution and Harness Kit For Campervans
The converter PDU harness kit is the ideal solution for converting your van into a camper.
With a complete plug and play system, compact yet powerful PDU unit, the sleek control panel makes carrying out a conversion easier.
Included in Kit:
PDU
Wiring Harness
Vegas Control Panel
The PDU has a 230V input to a 25amp RCD that provides 4 230V outputs for sockets and appliances through a 16-amp MCB.
It also has a 6amp MCB for the 10amp power supply which converters 230V to 12V.
There are 12 separate fuse protected outputs for
Auxiliary
Lights
Hob/Oven
Heater
Pump/toilet
Control Panel Ignition
Control Panel Perm
Fridge, Fridge 3S
Permanent
Leisure Battery
Vehicle Battery.
PDU Dimensions – Width: 307mm Depth: 93mm Height: 262mm
The Wiring Harness has 300mm Ignition, permanent and water probe options from the PDU and a 1m length from the PDU breaking out into separate 1m lengths to feeds for: x2 lights, x2 Auxiliary, 12V fridge, Heater, Hob/Oven, Toilet, Pump and a 2M length to the Control Panel.
Vegas control Panel is x2 C-Line in size.
The Button Panel has a master switch, Lights switch and Awning light switch, 2amp rated (Connection to awning light from Control Panel) and the meter Panel has a voltmeter and water level indicator.
...Read more
Out of Stock
£181.99
Powerparts BCA Converter Power Distribution Unit - BC21001
Powerparts BCA Converter Power Distribution Unit BC21001
Similar to Sargent EC155The connector PDU harness kit is the ideal solution for converting your van into a camper.
A compact yet powerful PDU unit, and everything you’ll need to connect to the PDU.
The Perfect complement if you wish to carrying out all your own wiring and choose your control panel, carrying out a conversion couldn’t be easier.
Included in Kit:
PDU, Connector Kit
The PDU has a 230V input to a 25amp RCD that provides 4 230V outputs for sockets and appliances through a 16-amp MCB.
It also has a 6amp MCB for the 10amp power supply which converters 230V to 12V.
There are 12 separate fuse protected outputs for: Auxiliary, Lights, Hob/Oven, Heater, Pump/toilet, Control Panel Ignition, Control Panel Perm, Fridge, Fridge 3S, Permanent, Leisure Battery, Vehicle Battery.
PDU Dimensions – Width: 307mm Depth: 93mm Height: 262mm
This Kit also comes with all the Connectors and terminals needed to connect to the PDU
...Read more
