Leisure Batteries for Campervans & Caravans | Van Junkies
Van Junkies are able to recommend and supply a range of Leisure Batteries suitable for any Caravan, Motorhome or Camper van. AGM, Lead Acid or Lithium are all available in various capacities from the UK’s top manufacturers including Mastervolt, Rolls, Victron Energy and Varta.
Leisure batteries are a type of deep cycle battery that is designed for use in recreational vehicles (RVs) campervans, motorhomes, yachts and other leisure applications. They are commonly used to power appliances and other equipment in RVs, such as lighting, heating, and refrigeration.
Leisure batteries are different from car batteries, which are designed to start the engine and provide a short burst of power. Leisure batteries are designed to provide a steady supply of power for longer periods of time, and they can be discharged to a much lower level without damaging the battery.
Leisure batteries are available in various sizes and capacities, and they can be connected in parallel or in series to provide more power. They are also available in different chemistries, such as lead-acid, lithium-ion, and gel.
Overall, leisure batteries are an essential component of any RV or leisure vehicle, as they provide the power needed to enjoy the outdoors and stay comfortable.
What is an AGM battery?
AGM stands for Absorbed Glass Mat - this is a battery in which all electrolyte is absorbed into a special sponge made of glass fibre. This advanced technology ensures that AGM batteries are non-spillable, completely sealed and maintenance free - they are one of the safest batteries you can find. They have a much longer service life compared to standard wet-cell batteries due to less degradation and corrosion inside the battery. AGM batteries hold charge very well and have a low self-discharge rate.
Other important benefits of AGM batteries include:
Better recovery from deep discharge
Their position doesn't have to be upright all the time
These batteries have better resistance to shock and vibration
Deep cycle means that this battery has been specially designed for applications which involve regular deep discharge. Such applications include using it as a leisure battery in caravans, motorhomes, campervans and boats, or energy storage in lighting systems, telecommunications, networking equipment and various types of off-grid power systems. This battery is also great for back up, emergency power storage and UPS systems.
This battery is a perfect choice for our solar charging kits due to its excellent solar charge acceptance. It is also ideal for various wind power systems or for combined solar and wind energy storage.
The service life of this battery is typically 3-5 years, but if treated well the battery can last up to 6-8 years.
The battery comes packaged in a carton box with a user manual and bolts/washers for terminals.
Specifications:
Nominal voltage: 12V
Nominal capacity: 100Ah (10h rate) / 105Ah (20h rate)
Maximum charging current: 25A
Self-discharging rate: <3% per month
Cycle lifetime at 30% D.O.D.: 1000-1100
Pressure control: safety valve installed
Terminal type: F13 (bolts and washers included)
Operating temperature: from +10C to +40C
Size: 331 x 173 x 217 mm
Weight: 30.0 kg
Lithium Leisure Battery - Fogstar Drift 12v 300Ah
The Fogstar Drift 12V 300Ah Lithium Leisure Battery can be used across a wide range of applications, from solar energy to camper and caravans, golf carts to electric wheelchairs, marine and boating.
The UK-designed leisure batteries offer a phenomenal cycle life (>4500 cycles at 80% DOD), low environmental impact and a superb 10 year warranty.
Manufactured using Grade A EVE LiFePO4 Lithium cells, high discharge JBD BMS, built in Bluetooth and Heating as standard - our Lithium leisure battery collection offers everything you’d expect in a premium product.
Thanks to the development of our JBD BMS, you can safely connect up to 4 batteries in series or parallel.
All batteries come with access to our Fogstar Drift App, enabling you to access leisure battery data at all times. The Fogstar Drift app is free to download on both Android and iOS.
Nominal Capacity 300Ah
Nominal Voltage 12.8V
Recommended Charge Voltage 14.4V
Max Cont. Discharge 250A
Dimensions L(380mm) x W (190mm) x H (245mm)
Weight 26Kg
IP67 Rated
The Fogstar Drift terminals are all M8 in size, 1.25 pitch, 12mm. All of our Drift Leisure batteries come with bolts as standard.
The Fogstar Drift 12V 300Ah is suitable for use with inverters up to 3000W in size.
What is a Gel battery?
A gel battery is a type of Valve Regulated Lead Acid (VRLA) battery filled with special gel-type electrolyte. Gel batteries are non-spillable, completely sealed and maintenance free - one of the safest batteries you can find. They have a much longer service life compared to standard wet-cell batteries due to less degradation and corrosion inside the battery. Gel batteries hold charge very well and have a much lower self-discharge rate.
Other important benefits of gel batteries include:
Better recovery from deep discharge
Wider working temperature range (gel batteries work well even in cold temperatures as low as -10C)
Their position doesn't have to be upright all the time
These batteries have better resistance to shock and vibration
Deep cycle means that this battery has been specially designed for applications which involve regular deep discharge. Such applications include using it as a leisure battery in caravans, motorhomes, campervans and boats, or energy storage in lighting systems, telecommunications, networking equipment and various types of off-grid power systems. This battery is also great for emergency power storage and UPS systems.
This battery is a perfect choice for our solar charging kits due to its excellent solar charge acceptance. It is also ideal for various wind power systems or for combined solar and wind energy storage.
The service life of this battery is more than 5 years, but if treated well the battery can last up to 10 years.
The battery comes packaged in a carton box with a user manual and bolts/washers for terminals.
Specifications:
Nominal voltage: 12V
Nominal capacity: 100Ah (10h rate) / 108Ah (20h rate)
Maximum charging current: 20A
Self-discharging rate: <1% per month
Cycle lifetime at 30% D.O.D.: 1200-1300
Pressure control: safety valve installed
Terminal type: F13 (bolts and washers included)
Operating temperature: from -10C to +50C
Size: 331 x 173 x 217 mm
Weight: 30.3 kg
Lucas LSLC125-12 Sealed Lead Acid Battery, with Absorbent Glass Mat (AGM) technology.
These quality manufactured batteries are capable of delivering up to 30% more deep cycling, making them a reliable source of power for more trips, longer journeys and longer battery life.
Features:
AGM technology
Extra deep cycle capability
Totally sealed – no spillage
Completely maintenance-free
Stand-by
CCTV
Fire, security and smoke alarms
Alarm panels
UPS
Data storage
Weight
32.5 kg
Dimensions
330 × 171 × 224 mm
100Ah AGM Deep Cycle Leisure Battery
TNE Series, TN’s most powerful products, are specially designed for deep cycle application. With numbers of national patent technologies, the cycle life reaches 400-600 cycles at 100% DOD, highly suitable for golf carts, electric wheelchairs, low-speed electric vehicles etc. Maintenance free technology reduce the complexity with water adding during use and become more and more popular in the market.
Features
Maintenance Free VRLA battery, no need to add water or acid during application.
Longer cycle life: 400-600 cycles at 100%DOD.
Higher capacity: Patented structure design with high utilization of active material, maximum improve the utilization rate of active material and the utilization ratio of battery internal space, 5%-10% higher capacity than similar products in the market.
High performance for large current discharge. New structure for plate grid, greatly reduced resistance of the battery, uniform internal electrochemical reaction under large current discharge, excellent capacity recovery from deep discharge
Good corrosion resistance of grid. Unique patent alloy with rare earth material, the grid has super corrosion resistance and creep resistance
High performance under low temperature. With added conductive material and cryogenic expansion agent of high activity to the plate, the product is of strong accept ability under low temperature.
Safety & reliability. Independent designed automatic anti-dry and removable safety valve for convenient common check as well as the sealing function to reduce water loss in the process of charge and discharge and to improve reaction efficiency of sealing.
Application
Electric Tricycle
Low speed electric vehicles
Golf trolleys and golf cart
Patrol cars
Electric Sight-seeing Tour Bus
Sweeper
Electric Wheelchairs
Lawn mowers etc
Campervans
Motorhomes
Caravans
Brand
TN Power
Manufacturer Part Number
TNE12-100
Voltage
12
Capacity (C20)
100
Terminal Type
I3
Terminal Layout
LH+
Dimensions (Including Terminals)
L260 x W168 x H210mm
Weight
26Kg
Warranty
2 Years
Battery Technology
AGM
Battery Application
Deep Cycle
Country of Manufacture
China
Exide EP800 Dual AGM Battery (017) 95Ah 850cca
Exide DUAL AGM battery range is designed for boats and caravans with one battery bank for all consumers. It is also suitable for additional batteries applied directly to electrical winches, thrusters and trolling motors. The batteries are partially discharged during use. DUAL AGM’s reinforced design, combined with a good recharging procedure, is key to providing the best result and service life.
The DUAL AGM battery range, with Wh* performance from 450-2100 Wh, is the ideal choice to cover all dual-supply needs for the most popular recreational boats.
BENEFITS
Ideal for most popular range of motorhomes & caravans
High mounting flexibility
Maintenance free
High vibration & tilt resistant, spill-proof, leak-proof
With AGM technology (absorbed glass mat flat plate or orbital) with VRLA venting (valve regulated) , Wh* performance range coverage goes from 450Wh to 2100Wh
Manufacturer: ExidePart Number: EP800Weight: 26.5kgLength: 353mmWidth: 175mmHeight: 190mmVoltage: 12VCapacity (AH): 95Cold Cranking (EN): 850Terminal Layout: + rightBattery Type: AGMWarranty: 12 MonthsApplication: Engine Start
The AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches.VRLA AGM: design life 7-10 yearsFeaturesVRLA technologyVRLA stands for Valve Regulated Lead Acid, which means that the batteries are sealed. Gas will escape through the safety valves only in case of overcharging or cell failure.VRLA batteries are maintenance free for life.Sealed (VRLA) AGM BatteriesAGM stands for Absorbent Glass Mat. In these batteries the electrolyte is absorbed into a glass-fibre mat between the plates by capillary action. As explained in our book ‘Energy Unlimited’, AGM batteries are more suitable for short-time delivery of high currents than gel batteries.Low Self-DischargeBecause of the use of lead calcium grids and high purity materials, Victron VRLA batteries can be stored during long periods of time without recharge. The rate of self-discharge is less than 2% per month at 20°C. The self-discharge doubles for every increase in temperature by 10°C.Victron VRLA batteries can therefore be stored for up to a year without recharging, if kept under cool conditions.Exceptional Deep Discharge RecoveryVictron VRLA batteries have exceptional discharge recovery, even after deep or prolonged discharge.Nevertheless repeatedly deep and prolonged discharge has a very negative effect on the service life of all lead acid batteries, Victron batteries are no exception.Battery Discharging CharacteristicsThe rated capacity of Victron AGM and Gel Deep Cycle batteries refers to 20 hour discharge, in other words: a discharge current of 0,05 C. The rated capacity of Victron Tubular Plate Long Life batteries refers to 10 hours discharge. The effective capacity decreases with increasing discharge current (see table 1). Please note that the capacity reduction will be even faster in case of a constant power load, such as an inverter.
GTIN
8719076037040
Voltage
12V
Battery Capacity (C20)
165Ah
Cold Cranking
600CCA
Terminal Type
M8
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
L485 x W172 x H240mm
Weight
47Kg
Warranty
2 Years
Country of Manufacture
Vietnam
Battery Technology
AGM
Battery Application
Dual Purpose
Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls S Series S12-128 AGM Deep Cycle AGM battery features thick plates with a high density active material. This design allows for reserve energy to be stored deep within the battery plates and released during slow discharge. The Rolls AGM range are sealed, non hazardous and completely maintenance free and?will suit the customer looking for a long reliable, maintenance free service life.
Rolls has designed a Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are the smart choice for demanding renewable applications.They are designed and built differently than standard batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specifications
Weight
32 kg
70.5 lbs
Length
32.8 cm
12.91"
Width
17.5 cm
6.89"
Height Inc. Term.
23.7 cm
9.33"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Nylon Strap
Series
AGM-S
Warranty
See Warranty Terms
Volts
12
BCI
Grp 31
Cells
6
Terminal Type
DT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
DT
Charge
Charge Voltage Range
14.5-14.9 V/cell @ 25°C (77°F)
Float Voltage Range
13.6-13.8 V/cell @ 25°C (77°F)
Recommended Charge Current
25 A
Maximum Charge Current
35 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
5 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
800
Marine Crank Amps (MCA) 32°F / 0°C
1000
Reserve Capacity (RC @ 25A)
220 Minutes
Reserve Capacity (RC @ 75A)
70 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
128 AH
1.28 A
@ 20 Hour Rate
115 AH
5.75 A
@ 10 Hour Rate
105 AH
10.5 A
@ 5 Hour Rate
97 AH
19.3 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
62.1
33
27
18.2
11.9
10.5
View all Rolls Batteries
What is a Gel battery?
A gel battery is a type of Valve Regulated Lead Acid (VRLA) battery filled with special gel-type electrolyte. Gel batteries are non-spillable, completely sealed and maintenance free - one of the safest batteries you can find. They have a much longer service life compared to standard wet-cell batteries due to less degradation and corrosion inside the battery. Gel batteries hold charge very well and have a much lower self-discharge rate.
Other important benefits of gel batteries include:
Better recovery from deep discharge
Wider working temperature range (gel batteries work well even in cold temperatures as low as -10C)
Their position doesn't have to be upright all the time
These batteries have better resistance to shock and vibration
Deep cycle means that this battery has been specially designed for applications which involve regular deep discharge. Such applications include using it as a leisure battery in caravans, motorhomes, campervans and boats, or energy storage in lighting systems, telecommunications, networking equipment and various types of off-grid power systems. This battery is also great for emergency power storage and UPS systems.
This battery is a perfect choice for our solar charging kits due to its excellent solar charge acceptance. It is also ideal for various wind power systems or for combined solar and wind energy storage.
The service life of this battery is more than 5 years, but if treated well the battery can last up to 10 years.
The battery comes packaged in a carton box with a user manual and bolts/washers for terminals.
Specifications:
Nominal voltage: 12V
Nominal capacity: 200Ah (10h rate) / 205Ah (20h rate)
Maximum charging current: 40A
Self-discharging rate: <1% per month
Cycle lifetime at 30% D.O.D.: 1200-1300
Pressure control: safety valve installed
Terminal type: F24 (bolts and washers included)
Operating temperature: from -10C to +50C
Size: 523 x 239 x 243 mm
Weight: 61.5 kg
The AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches.
VRLA AGM: design life 7-10 years
Features
A truly innovative battery
The AGM Super Cycle batteries are the result of recent battery electrochemistry developments.
The paste of the positive plates is less sensitive to softening, even in case of repeated 100% discharge of the battery, and new additives to the electrolyte reduce sulfation in case of deep discharge.
Exceptional 100% depth of discharge (DoD) performance
Tests have shown that the Super Cycle battery does withstand at least three hundred 100% DoD cycles.
The tests consist of a daily discharge to 10,8V with I = 0,2C20, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0,2C20.
The two hours rest period in discharged condition will damage most batteries within 100 cycles, but not the Super Cycle battery.
We recommend the Super Cycle battery for applications where an occasional discharge to 100% DoD, or frequent discharge to 60- 80% DoD is expected.
Smaller and lighter
An additional advantage of the new chemistry is a slightly smaller size and less weight compared to our standard deep cycle AGM batteries.
Low internal resistance
The internal resistance is also slightly lower compared to our standard deep cycle AGM batteries
Brand
Victron Energy
Manufacturer Part Number
BAT412112081
GTIN
8719076041832
Voltage
12V
Battery Capacity (C20)
125Ah
Cold Cranking
550CCA
Terminal Type
M8 Insert
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
L330 x W171 x H214mm
Weight
33Kg
Warranty
2 Years
Country of Manufacture
China
Battery Technology
AGM
Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls S Series S12-160 AGM Deep Cycle AGM battery features thick plates with a high density active material. This design allows for reserve energy to be stored deep within the battery plates and released during slow discharge. The Rolls AGM range are sealed, non hazardous and completely maintenance free and?will suit the customer looking for a long reliable, maintenance free service life.
Rolls has designed a Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are the smart choice for demanding renewable applications.They are designed and built differently than standard batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specifications
Weight
44 kg
97 lbs
Length
34.1 cm
13.43"
Width
17.2 cm
6.77"
Height Inc. Term.
30.9 cm
12.17"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Nylon Strap
Series
AGM-S
Warranty
See Warranty Terms
Volts
12
BCI
SPEC
Cells
6
Terminal Type
DT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
DT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
30 A
Maximum Charge Current
40 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
3.6 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
795
Marine Crank Amps (MCA) 32°F / 0°C
950
Reserve Capacity (RC @ 25A)
260 Minutes
Reserve Capacity (RC @ 75A)
75 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
160 AH
1.6 A
@ 20 Hour Rate
145 AH
7.25 A
@ 10 Hour Rate
126 AH
12.6 A
@ 5 Hour Rate
115 AH
23 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
76.9
44.3
31.8
22.7
15.3
12.6
View all Rolls Batteries
The Victron Energy 100Ah Smart Battery
With integrated cell balancing
Can be parallel and series connected
Bluetooth app available to monitor cell voltage and temperature
Requires one of these BMS-es:
VE.Bus BMS – recommended for systems with our inverter/chargers.
smallBMS – recommended for use in small systems.
Battery Management System BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS CL 12/100 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Lynx Smart BMS – recommended for use in large systems.
Features of the 100Ah Smart Battery
RuggedA lead-acid battery will fail prematurely due to sulfation:• If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).• If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime).A LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid.Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below).
LFP is therefore the chemistry of choice for demanding applications.
EfficientIn several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance.The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead acid battery is 80%.The round-trip energy efficiency of a LFP battery is 92%.The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state).In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.
Size and weightSaves up to 70% in spaceSaves up to 70% in weight
Expensive?LFP batteries are expensive when compared to lead-acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.
BluetoothWith Bluetooth cell voltages, temperature and alarm status can be monitored.Very useful to localize a (potential) problem, such as cell imbalance.
The 100Ah Smart battery is equipped with Bluetooth and uses this to communicate with the VictronConnect app.
The VictronConnect app can be used for:• Monitoring the battery status• Monitoring the battery voltage• Monitoring the battery temperature• To find out when the battery was last fully charged• Monitoring the cell balancing status• Monitoring the individual cell voltages• To view or change the battery settings• To update the battery firmware
Brand
Victron Energy
Manufacturer Part Number
BAT512110610
GTIN
8719076043041
Voltage
12.8V
Battery Capacity (C20)
100Ah
Terminal Type
M8
Terminal Layout
Right Hand Positive
Dimensions (Including Terminals)
H197 x W321 x D152mm
Weight
14Kg
Warranty
3 Years
Country of Manufacture
China
Battery Technology
Lithium
Battery Application
Deep Cycle
230Ah AGM Deep Cycle Leisure Battery
TNE Series, TN’s most powerful products, are specially designed for deep cycle application. With numbers of national patent technologies, the cycle life reaches 400-600 cycles at 100% DOD, highly suitable for golf carts, electric wheelchairs, low-speed electric vehicles etc. Maintenance free technology reduce the complexity with water adding during use and become more and more popular in the market.
Features
Maintenance Free VRLA battery, no need to add water or acid during application.
Longer cycle life: 400-600 cycles at 50% DOD.
Higher capacity: Patented structure design with high utilization of active material, maximum improve the utilization rate of active material and the utilization ratio of battery internal space, 5%-10% higher capacity than similar products in the market.
High performance for large current discharge. New structure for plate grid, greatly reduced resistance of the battery, uniform internal electrochemical reaction under large current discharge, excellent capacity recovery from deep discharge
Good corrosion resistance of grid. Unique patent alloy with rare earth material, the grid has super corrosion resistance and creep resistance
High performance under low temperature. With added conductive material and cryogenic expansion agent of high activity to the plate, the product is of strong accept ability under low temperature.
Safety & reliability. Independent designed automatic anti-dry and removable safety valve for convenient common check as well as the sealing function to reduce water loss in the process of charge and discharge and to improve reaction efficiency of sealing.
Application
Electric Tricycle
Low speed electric vehicles
Golf trolleys and golf cart
Patrol cars
Electric Sight-seeing Tour Bus
Sweeper
Electric Wheelchairs
Lawn mowers etc
Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls S Series S12-116 AGM Deep Cycle AGM battery features thick plates with a high density active material. This design allows for reserve energy to be stored deep within the battery plates and released during slow discharge. The Rolls AGM range are sealed, non hazardous and completely maintenance free and?will suit the customer looking for a long reliable, maintenance free service life.
Rolls has designed a Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are the smart choice for demanding renewable applications.They are designed and built differently than standard batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specifications
Weight
30 kg
66 lbs
Length
30.7 cm
12.09"
Width
16.9 cm
6.65"
Height Inc. Term.
23.7 cm
9.33"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope / Plastic Handle
Series
AGM-S
Warranty
See Warranty Terms
Volts
12
BCI
Grp 27
Cells
6
Terminal Type
DT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
DT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
20 A
Maximum Charge Current
35 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
4 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
680
Marine Crank Amps (MCA) 32°F / 0°C
900
Reserve Capacity (RC @ 25A)
180 Minutes
Reserve Capacity (RC @ 75A)
43 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
116 AH
1.16 A
@ 20 Hour Rate
105 AH
5.25 A
@ 10 Hour Rate
95 AH
9.5 A
@ 5 Hour Rate
86 AH
17.2 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
59.6
31.6
23.7
17.2
11.4
9.5
View all Rolls Batteries
The Drift 24V 230Ah LiFePO4 Leisure Battery offers an incredible 5888Wh, great cycle life, low environmental impact, and a superb 10 year warranty.
Manufactured using Grade A EVE LiFePO4 Lithium cells, high discharge JBD BMS, built in Bluetooth and Heating as standard - our new Lithium Leisure Battery collection offers everything you’d expect in a premium product.
Download the Fogstar Drift App, this enables you to access real-time data about your Lithium Leisure Battery at all times. The Fogstar Drift app is free to download on both Android and iOS.The new Fogstar Drift 24v 230Ah Lithium Leisure Battery can be used across a wide range of applications, from solar energy storage to campers and caravans, marine and boating.
TECHNICAL SPECIFICATION
Nominal Capacity 230Ah
Nominal Voltage 25.6V
Recommended Charge Voltage 29.2V
Max Cont. Discharge 200A
L(522mm) x H (218mm) x W (245mm)
Cell Assembly 8S1P
Weight 39.5Kg
The Fogstar Drift terminals are all M8 in size, 1.25 pitch, 12mm. All of our Drift Leisure batteries come with bolts and terminal posts as standard.
The Victron Energy 330Ah Smart Battery
With integrated cell balancing
Can be parallel and series connected
Bluetooth app available to monitor cell voltage and temperature
Requires one of these BMS-es:
VE.Bus BMS – recommended for systems with our inverter/chargers.
smallBMS – recommended for use in small systems.
Battery Management System BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS CL 12/100 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Lynx Smart BMS – recommended for use in large systems.
Features of the 330Ah Smart Battery
RuggedA lead-acid battery will fail prematurely due to sulfation:• If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).• If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime).A LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid.Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below).
LFP is therefore the chemistry of choice for demanding applications.
EfficientIn several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance.The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead acid battery is 80%.The round-trip energy efficiency of a LFP battery is 92%.The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state).In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.
Size and weightSaves up to 70% in spaceSaves up to 70% in weight
Expensive?LFP batteries are expensive when compared to lead acid But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.
BluetoothWith Bluetooth cell voltages, temperature and alarm status can be monitored.Very useful to localize a (potential) problem, such as cell imbalance.
The 330Ah Smart battery is equipped with Bluetooth and uses this to communicate with the VictronConnect app.
The VictronConnect app can be used for:• Monitoring the battery status• Monitoring the battery voltage• Monitoring the battery temperature• To find out when the battery was last fully charged• Monitoring the cell balancing status• Monitoring the individual cell voltages• To view or change the battery settings• To update the battery firmware
Brand
Victron Energy
Manufacturer Part Number
BAT512132410
GTIN
8719076054849
Voltage
12.8V
Battery Capacity (C20)
330Ah
Terminal Type
M10
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
H347 x W425 x D274mm
Weight
51Kg
Warranty
3 Years
Country of Manufacture
China
Battery Technology
Lithium
Battery Application
Deep Cycle
Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls S Series S12-95 AGM Deep Cycle AGM battery features thick plates with a high density active material. This design allows for reserve energy to be stored deep within the battery plates and released during slow discharge. The Rolls AGM range are sealed, non hazardous and completely maintenance free and?will suit the customer looking for a long reliable, maintenance free service life.
Rolls has designed a Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are the smart choice for demanding renewable applications.They are designed and built differently than standard batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specifications
Weight
23 kg
50.5 lbs
Length
26 cm
10.24"
Width
16.9 cm
6.65"
Height Inc. Term.
23.7 cm
9.33"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope / Plastic Handle
Series
AGM-S
Warranty
See Warranty Terms
Volts
12
BCI
Grp 24
Cells
6
Terminal Type
DT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
DT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
15 A
Maximum Charge Current
25 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
5.5 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
500
Marine Crank Amps (MCA) 32°F / 0°C
800
Reserve Capacity (RC @ 25A)
155 Minutes
Reserve Capacity (RC @ 75A)
34 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
95 AH
0.95 A
@ 20 Hour Rate
85 AH
4.25 A
@ 10 Hour Rate
77 AH
7.7 A
@ 5 Hour Rate
70 AH
14 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
43.8
25.6
19.2
13.9
9.2
7.7
Specifications
Weight
23 kg
50.5 lbs
Length
26 cm
10.24"
Width
16.9 cm
6.65"
Height Inc. Term.
23.7 cm
9.33"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope / Plastic Handle
View all Rolls Batteries
84Ah Lithium Leisure Battery
A huge advantage to lithium technology is the life cycle rating which far surpasses alternative technologies. This specific item has 7000 charge and discharge cycles at a depth of 50%
Features
Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions
Built-in automatic protection for over-charge, over discharge, over current and over temperature
Free of maintenance
Internal cell balancing
Lighter weight: About 40% -50% of the weight of a comparable lead acid battery
Can be charged using most standard lead-acid charges (set)
Wider temperature range:-20°C-60°C
Support for Series application expansion (up to 51.2V) and two in parallel
Applications
UPS
Solar &Wind Power System
Golf Cart
Electric Vehicle , E-bike, E-rickshaw etc.
Lighting
Motorhomes
Caravans
Campervans
Brand
TN Power
Manufacturer Part Number
TN84
Voltage
12V
Capacity (C20)
84Ah
Terminal Type
M8
Terminal Layout
LH+
Dimensions (Including Terminals)
L260 x W169 x H218mm
Weight
10.2Kg
Warranty
4 Years
Battery Technology
Lithium
Battery Application
Deep Cycle
Country of Manufacture
China
Elevate your off-grid adventures with the industry-leading Fogstar Drift 24V 280Ah Lithium Leisure Battery, a powerhouse that delivers an exceptional 7,168Wh of energy.
This remarkable battery boasts an astounding cycle life of 8,000 cycles at 80% depth of discharge (DOD), ensuring years of reliable performance. Further solidifying its position as a premier choice, the Fogstar Drift 24V battery features a generous 10-year warranty, a testament to our commitment to quality and durability.
Crafted with premium Grade A EVE V3 LF280K Cells, and incorporating a high-discharge 200A JBD BMS, the Fogstar Drift 24V 280Ah Lithium Leisure Battery sets a new benchmark for performance, reliability and efficiency.
The integrated heating capabilities provide enhanced control and protection, while the user-friendly Fogstar Drift App, available free for Android and iOS devices, offers real-time access to battery data, ensuring complete monitoring and control.
This versatile power solution seamlessly caters to a wide range of applications, including solar energy storage, campervans and caravans, marine and boating, and golf carts. Its scalability allows you to connect up to 4 Drift batteries in series or parallel, effortlessly expanding your power capacity to meet your specific needs.
TECHNICAL SPECIFICATION
Nominal Capacity 280Ah
Nominal Voltage 25.6V
Recommended Charge Voltage 29.2V
Max Cont. Discharge 200A
L(640mm)*W(245mm)*H(220mm)
Cell Assembly 8S1P
Weight 50Kg
The Fogstar Drift terminals are all M8 in size, 1.25 pitch, 12mm. All of our Drift Leisure batteries come with bolts and terminal posts as standard.
Victron Energy Lithium SuperPack 12,8V 100Ah (M8) High Current – BAT512110710
The SuperPack batteries are extremely easy to install, not needing any additional components.The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
The batteries can be connected in parallel. Series connection is not allowed.
Features
Integrated BMS and safety switch
The SuperPack batteries are extremely easy to install, needing no additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
Abuse proof
A lead-acid battery will fail prematurely due to sulfation:
If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
If it is left partially charged or worse, fully discharged.
A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion compared to lead-acid.
The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are exceeded.
Efficient
In several applications (especially off-grid solar), energy efficiency can be of crucial importance.
The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%.
The round-trip energy efficiency of a Li-ion battery is 92%.
The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state).
In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions.
Can be connected in parallel
The batteries can be connected in parallel. Series connection is not allowed. Use in upright position only.
Brand
Victron Energy
Manufacturer Part Number
BAT512110710
gtin
8719076053019
Voltage
12.8V
Battery Capacity (C20)
100Ah
Terminal Type
M8
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
H220 x W330 x D172mm
Weight
14Kg
Warranty
3 Years
Battery Technology
Lithium
Battery Application
Deep Cycle
Country of Manufacture
China
Victron Energy Lithium SuperPack 12.8V 20Ah (M5) - BAT512020705
The SuperPack batteries are extremely easy to install, not needing any additional components.The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
The batteries can be connected in parallel. Series connection is not allowed.
Features
Integrated BMS and safety switch
The SuperPack batteries are extremely easy to install, needing no additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
Abuse proof
A lead-acid battery will fail prematurely due to sulfation:
If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
If it is left partially charged or worse, fully discharged.
A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion compared to lead-acid.
The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are exceeded.
Efficient
In several applications (especially off-grid solar), energy efficiency can be of crucial importance.
The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%.
The round-trip energy efficiency of a Li-ion battery is 92%.
The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state).
In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions.
Can be connected in parallel
The batteries can be connected in parallel. Series connection is not allowed. Use in upright position only.
Brand
Victron Energy
Manufacturer Part Number
BAT512020705
gtin
8719076047537
Voltage
12.8V
Battery Capacity (C20)
20Ah
Terminal Type
M6
Terminal Layout
Right Hand Positive
Dimensions (Including Terminals)
H167 x W181 x D77mm
Weight
3.5Kg
Warranty
3 Years
Battery Technology
Lithium
Battery Application
Deep Cycle
Country of Manufacture
China
LithiumPro 150AH ARCTICXTREME Lithium Leisure Battery
Introducing the 12v 150AH Lithium Battery from LithiumPro Energy:
The premium range from Lithium Pro Energy, the ARCTICXTREME with SmartIQ technology. The 12V 150AH Lithium Battery has been designed for power hungry devices and applications. The ARCTICXTREME is the UK’S most powerful lithium battery in a standard DIN H8 case. Using Advanced BMS technology the ARCTICXTREME can deliver up to 200 amps of continuous power, enabling you to run up to a 2500W inverter continuously with only a single battery. The next most lithium powerful battery in this size case is 110AH and it can only run a maximum of 1400W before the BMS will shut down the system.
Our Premium SmartIQ Series features the latest Bluetooth 5.0 technology, enabling you to monitor your batteries’ health in real-time. You can track the state of charge level, voltage, power, current, temperature, and much more. All our Premium SmartIQ Series batteries come with a full 5-year warranty and have an expected lifespan exceeding 10+ years.
The ARCTICXTREME battery comprises traceable Grade A LiFePO4 prismatic cells of the highest quality. We ONLY use traceable Grade A Prismatic cells in all of our range.Designed and engineered in the UK specifically for the UK market we have retained the standard SAE Automotive style DIN battery size with familiar brass terminal posts. In terms of size, this battery is a like-for-like replacement. This battery is a Plug & play replacement, meaning you do not need to replace your existing battery cables or connecting leads. Just remove your old lead acid battery and replace it with the smaller, lighter, and more powerful lithium ULTRAVOLT weighing only 10kgs.
The battery has the same base rail, allowing it to be secured into position just like before. It’s ideal for motorhomes, caravans, or camper vans.
You can fit two SMARTIQ SERIES batteries perfectly under the seat of a Fiat Ducato’s, Peugeot Boxers, Citroen Relays, Merc Sprinter, VW Crafter, T5, T6 and Transit Custom.
All our Premium Smart IQ range batteries come with a full 5-year warranty, with an expected lifespan exceeding 10+ years.
All LithiumPro batteries have undergone rigorous testing procedures to ensure they comply fully with all UK & EU Legal Product Certification. The batteries demonstrate compliance with UKCA, CE, ROHS, EMC & RED
ELECTRICAL SPECIFICATIONS
Nominal Voltage
12.8V
Nominal Capacity
150Ah
Energy
1920Wh
Internal Resistance
≤10 mΩ
Efficiency
≥99%
Self Discharge
<3% per month
MECHANICAL SPECIFICATIONS
Dimensions (LxWxH) DIN H6
280x178x189mm
Weight
10 Kgs
Cycles
≥5000 @ 80% DOD
Case Material
ABS
Enclosure Protection
IP67
Terminal Type
SAE Brass Post
Cell Chemistry (EVE-LF105)
LiFePO4
BMS SAFETY SPECIFICATIONS
Max Continuous Charge Current
200A Recommended (75A)
Max Continuous Discharge Current
200A
Peak Discharge
260A (10Secs)
Discharge Protection cut-off
10V
Over Charge Protection cut-off
14.5V
Passive Cell Balancing Voltage
3.5V
Short Circuit Protection
900<500uS
RECOMMENDED CHARGING SPECIFICATIONS
Charging Voltage (CCCV)
14.4V
Float Voltage
13.8V
Charging Current
≤ 75A
Parallel & Series Connections
Max 4 (48V)
Datasheet
LithiumPro 150AH ARCTICXTREME Lithium Leisure Battery Datasheet
Quick Start Guide
LithiumPro 150AH ARCTICXTREME Lithium Leisure Battery Guide
Victron Energy AGM Dual Purpose Battery 12V 110Ah – BAT412101084
The AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches.
VRLA AGM: design life 7-10 years
Features
VRLA technology
VRLA stands for Valve Regulated Lead Acid, which means that the batteries are sealed. Gas will escape through the safety valves only in case of overcharging or cell failure.
VRLA batteries are maintenance free for life.
Sealed (VRLA) AGM Batteries
AGM stands for Absorbent Glass Mat. In these batteries the electrolyte is absorbed into a glass-fibre mat between the plates by capillary action. As explained in our book ‘Energy Unlimited’, AGM batteries are more suitable for short-time delivery of high currents than gel batteries.
Low Self-Discharge
Because of the use of lead calcium grids and high purity materials, Victron VRLA batteries can be stored during long periods of time without recharge. The rate of self-discharge is less than 2% per month at 20°C. The self-discharge doubles for every increase in temperature by 10°C.
Victron VRLA batteries can therefore be stored for up to a year without recharging if kept under cool conditions.
Exceptional Deep Discharge Recovery
Victron VRLA batteries have exceptional discharge recovery, even after deep or prolonged discharge.
Nevertheless repeatedly deep and prolonged discharge has a very negative effect on the service life of all lead acid batteries, Victron batteries are no exception.
Battery Discharging Characteristics
The rated capacity of Victron AGM and Gel Deep Cycle batteries refers to 20 hour discharge, in other words: a discharge current of 0,05 C. The rated capacity of Victron Tubular Plate Long Life batteries refers to 10 hours discharge. The effective capacity decreases with increasing discharge current (see table 1). Please note that the capacity reduction will be even faster in case of a constant power load, such as an inverter.
Brand
Victron Energy
Manufacturer Part Number
BAT412101084
GTIN
8719076036968
Voltage
12V
Battery Capacity (C20)
110Ah
Cold Cranking
500CCA
Terminal Type
M8
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
L330 x W171 x H220mm
Weight
32Kg
Warranty
2 Years
Country of Manufacture
Vietnam
Battery Technology
AGM
Battery Application
Dual Purpose
Exide EP2100 Dual AGM Battery (625) 240Ah 1200cca
Exide DUAL AGM battery range is designed for boats and caravans with one battery bank for all consumers. It is also suitable for additional batteries applied directly to electrical winches, thrusters and trolling motors. The batteries are partially discharged during use. DUAL AGM’s reinforced design, combined with a good recharging procedure, is key to providing the best result and service life.
The DUAL AGM battery range, with Wh* performance from 450-2100 Wh, is the ideal choice to cover all dual-supply needs for the most popular recreational boats.
BENEFITS
Ideal for most popular range of motorhomes & caravans
High mounting flexibility
Maintenance free
High vibration & tilt resistant, spill-proof, leak-proof
With AGM technology (absorbed glass mat flat plate or orbital) with VRLA venting (valve regulated) , Wh* performance range coverage goes from 450Wh to 2100Wh
Weight
72 kg
Dimensions
518 × 279 × 240 mm
Brand
Exide
Battery Type
AGM/EFB
Battery by Application
All Batteries, Leisure, Marine
Battery Voltage (V)
12V
Battery Warranty
2 Years
100Ah Heated Lithium Leisure Battery
Features
Using the technology of lithium iron phosphate cell, superior safety
Thousands of cycles, 100% DOD, under normal conditions
Built-in automatic protection for over-charge, discharge and tempertature
Built in heater maintaining battery at over 5 °C when charging
Maintenance Free
Internal cell balancing
About 40% ~50% of the weight of a comparable lead acid battery.
Can be charged using most standard lead-acid charges (set)
Wider temperature range:-20OC ~60OC
Support for Series application expansion (up to 51.2V) and two in parallel
Application
Recreational Vehicles
Motorhomes
Marine
Renewable Energy
Medical / Mobility
Electric Vehicles
Golf Cart
Brand
TN Power
Manufacturer Part Number
TN12.8-100(LT)
Warranty
5 Years
Country of Manufacture
China
Terminal Type
M8
Weight
13.1Kg
Dimensions
L328 x W172 x H220mm
Cycle Life
>2000 Cycles @ 0.2C Charging/Discharging at 100%DOD,Until 70% Capacity
Nominal Voltage
12.8V
Energy 1075.2Wh
1280Wh
Nominal Capacity
100Ah@0.2C
Discharging Current
20A
Max Continuous Current
100A
Casing
ABS
Discharging Cut-off Voltage
10.0V
Max Pulse Current
200A (<3S°C)
Max Charging Current
50A
Charging Current
20A
Charging Voltage
14.6±0.2V
Bluetooth
Built-In
Water Dust Resistance
IP55
Victron Energy LiFePO4 Battery 12.8V 50Ah Smart – BAT512050610
The Victron Energy 50Ah Smart Battery
With integrated cell balancing
Can be parallel and series connected
Bluetooth app available to monitor cell voltage and temperature
Requires one of these BMS-es:
VE.Bus BMS – recommended for systems with our inverter/chargers.
smallBMS – recommended for use in small systems.
Battery Management System BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS 12/200 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS CL 12/100 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
Lynx Smart BMS – recommended for use in large systems.
Features of the 50Ah Smart Battery
RuggedA lead-acid battery will fail prematurely due to sulfation:• If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).• If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime).A LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid.Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below).
LFP is therefore the chemistry of choice for demanding applications.
EfficientIn several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance.The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead acid battery is 80%.The round-trip energy efficiency of a LFP battery is 92%.The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state).In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.
Size and weightSaves up to 70% in spaceSaves up to 70% in weight
Expensive?LFP batteries are expensive when compared to lead acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.
BluetoothWith Bluetooth cell voltages, temperature and alarm status can be monitored.Very useful to localize a (potential) problem, such as cell imbalance.
The 50Ah Smart battery is equipped with Bluetooth and uses this to communicate with the VictronConnect app.
The VictronConnect app can be used for:• Monitoring the battery status• Monitoring the battery voltage• Monitoring the battery temperature• To find out when the battery was last fully charged• Monitoring the cell balancing status• Monitoring the individual cell voltages• To view or change the battery settings• To update the battery firmware
Brand
Victron Energy
Manufacturer Part Number
BAT512050610
gtin
8719076051633
Voltage
12V
Battery Capacity (C20)
50Ah
Terminal Type
M8
Terminal Layout
Right Hand Positive
Dimensions (Including Terminals)
H199 x W188 x D147mm
Weight
7Kg
Warranty
3 Years
Battery Technology
Lithium
Battery Application
Deep Cycle
Country of Manufacture
China
LithiumPro Energy ULTRAVOLT 105AH Lithium Leisure battery
The premium 12v LITHIUM BATTERY range from Lithium Pro Energy, the ULTRAVOLT with SmartIQ technology. The 12V 105AH Lithium Battery has been designed for power-hungry devices and applications. Using Advanced BMS technology the ULTRAVOLT delivers up to 150 amps of continuous power, allowing you to run up to a 2000W inverter continuously with only a single battery. All other 100AH batteries on the market can only run at a maximum 0f 1200W ( not necessarily continuously) before the BMS shuts down the battery.
Our Premium SmartIQ Series features the latest Bluetooth 5.0 technology, enabling you to monitor your batteries’ health in real time. You can track the state of charge level, voltage, power, current, temperature, and much more. All our Premium SmartIQ Series batteries come with a full 5-year warranty and have an expected lifespan exceeding 10+ years.
The ULTRAVOLT battery comprises 105ah EVE LiFePO4 prismatic cells of the highest quality. We ONLY use traceable Grade A cells in all of our range.Designed and engineered in the UK specifically for the UK market we have retained the standard SAE Automotive style DIN battery size with familiar brass terminal posts. In terms of size this battery is a like-for-like replacement. its a Plug-and-play replacement, Meaning you do not need to replace your existing battery cables. Just remove your old lead acid battery and replace it with the smaller, lighter, and more powerful lithium ULTRAVOLT weighing only 10kgs.
The battery has the same base rail, allowing it to be secured into position just like before. It’s ideal for motorhomes, caravans, or camper vans.
You can fit two SMARTIQ SERIES batteries perfectly under the seat in Fiat Ducato’s, Peugeot Boxers, Citroen Relays, Merc Sprinter, VW Crafter, T5, T6, and Transit Custom.
All our Premium Smart IQ range batteries come with a full 5-year warranty, with an expected lifespan exceeding 10+ years.
All LithiumPro batteries have undergone rigorous testing procedures to ensure they comply fully with all UK & EU Legal Product Certification. The batteries demonstrate compliance with UN38.3, UKCA, CE, ROHS, EMC & RED
Monitor Real-Time Battery Data from your Phone
Using the latest Bluetooth 5 technology on your IOS or Android device you can pair to a SMARTIQ SERIES battery for real-time data monitoring.
Check Battery Status, Faults & Alarms
The BMS Battery Management System controls all battery parameters, logging and logs the faults when it has had to intervene for safety and help you use your battery more efficiently.
Multiple Battery Connections
Whether your system is connected in SERIES or PARALLEL with our APP you can now monitor all your battery data on a single screen
RealState-of-Charge
No more guessing - Get live data showing the % State of Charge SOC of your battery and how long till your battery will be to fully charged or completely discharged
ELECTRICAL SPECIFICATIONS
Nominal Voltage
12.8V
Nominal Capacity
105Ah
Energy
1344Wh
Internal Resistance
≤10 mΩ
Efficiency
≥99%
Self Discharge
<3% per month
MECHANICAL SPECIFICATIONS
Dimensions (LxWxH) DIN H6
280x178x189mm
Weight
10 Kgs
Cycles
≥5000 @ 80% DOD
Case Material
ABS
Enclosure Protection
IP67
Terminal Type
SAE Brass Post
Cell Chemistry (EVE-LF105)
LiFePO4
BMS PROTECTION SPECIFICATIONS
Max Continuous Charge Current
150A Recommended (75A)
Max Continuous Discharge Current
150A
Peak Discharge
200A (10 Secs)
Discharge Protection cut-off
10V
Over Charge Protection cut-off
14.5V
Passive Cell Balancing Voltage
3.5V
Short Circuit Protection
900<500uS
RECOMMENDED CHARGING SPECIFICATIONS
Charging Voltage (CCCV)
14.4V
Float Voltage
13.8V
Charging Current
≤ 75A
Parallel & Series Connections
Max 4 (48V)
Datasheet
LithiumPro Energy ULTRAVOLT 105AH Lithium Leisure battery Datasheet
Quick Start Guide
LithiumPro Energy ULTRAVOLT 105AH Lithium Leisure battery Guide
LithiumPro Energy COMPACT Lite 100AH Lithium Leisure battery
LithiumPro Energy presents the 100AH Lithium Leisure battery, the COMPACT Lite, our 'Entry-Level' Lithium Leisure Battery designed with affordability and reliability in mind. We have designed this lithium battery using 'traceable' Advanced A-grade prismatic cell technology to deliver consistent and stable power, meeting even the most demanding off-grid applications at a competitive price.
This 100AH battery is lightest in the UK, weighing a mere 9kgs, and boasts a compact size while delivering a powerful 100A continuous discharge and charging capability. You can safely and continuously run a 1200W inverter with the COMPACT Lite thanks to its advanced 100A BMS.
The Compact Lite is an ideal battery to fit under your seat base of your motorhome of campervan. It fits under the seat base of all Fiat-Ducatos, Citroen-Relays, Peugeot-Boxers, Merc Sprinter, VW Crafters, VW T4/T5/T6 and Ford Customs.
This 100ah lithium leisure battery is the ideal 'Entry-Level' priced product. But don't think quality or safety has been overlooked. Safety is of paramount importance to LithiumPro Energy, this is why our products are put through a rigorous testing program to guarantee compliance with UKCA, CE, ROHS & UN38.3 standards and it are backed by our comprehensive 3-year warranty, and comes with an expected 10-year lifespan.
All LithiumPro batteries have undergone rigorous testing procedures to ensure they comply fully with all UK & EU Legal Product Certification. The batteries demonstrate compliance with UKCA, CE, ROHS, EMC & RED
ELECTRICAL SPECIFICATIONS
Nominal Voltage
12.8V
Nominal Capacity
100Ah
Energy
1280Wh
Internal Resistance
≤10 mΩ
Efficiency
≥99%
Self Discharge
<3% per month
MECHANICAL SPECIFICATIONS
Dimensions (LxWxH)
260x168x209mm
Weight
9.9 kgs
Cycles
≥3000 @ 80% DOD
Case Material
ABS
Enclosure Protection
IP65
Terminal Type
M8 Internal Thread
Cell Chemistry
LiFePO4
SAFETY & PROTECTION SPECIFICATIONS
Max Continuous Charge Current
100A Recommended (50A)
Max Continuous Discharge Current
100A
Peak Discharge
160A (10 Secs)
Discharge Protection cut-off
10V
Over Charge Protection cut-off
14.5V
Passive Cell Balancing Voltage
3.5V
Short Circuit Protection
600<500uS
100ah Lithium Pro Datasheet
LithiumPro Energy COMPACT Lite 100AH Lithium Leisure battery Datasheet
Quick Start Guide
LithiumPro Energy COMPACT Lite 100AH Lithium Leisure battery Quick Start Guide
Solar lithium storage of the latest generation, which offers maximum safety and a long service life even with regular deep discharge. The solar storage has an integrated battery management system (BMS) in each individual module.
The Pylontech can be mounted in 19 inch cabinets or with the accessory holders on top of each other or standing side by side. The system is modular and can therefore be individually adapted to the needs of your household or commercial operation. The memory can be connected to a total of 16 pieces.
Technical specifications:
Technology: Lithium iron phosphate LiFePo4 Service
Life: 6000 cycles at 90% depth of discharge
Rated voltage: 48V Rated
Capacity: 2400Wh Charge
Voltage range: 52.5 - 53.2V
Recommended charge current / discharge current: 25A
Maximum charge current / discharge current: 50A (peak 100A for 15 seconds)
Lenght: 442mm
Width: 410mm
Height: 89mm
Capacity: 50Ah
Warranty: 7 years
Scope of delivery: 1x PylonTech LiFePo4 module 48V 2.4 kWh US2000C with BMS 1 x battery module connection cable (1x+ and 1x-)
PylonTech is a leading manufacturer of lithium battery energy storage systems and has been for over 10 years. PylonTech specialise in BMS, EMS and system integration, with a wide range of products suitable for domestic micro-grids, commercial energy storage, photovoltaic power plants and base stations.
Exide EP600 Dual AGM Battery (067) 70Ah 760cca
Exide DUAL AGM battery range is designed for boats and caravans with one battery bank for all consumers. It is also suitable for additional batteries applied directly to electrical winches, thrusters and trolling motors. The batteries are partially discharged during use. DUAL AGM’s reinforced design, combined with a good recharging procedure, is key to providing the best result and service life.
The DUAL AGM battery range, with Wh* performance from 450-2100 Wh, is the ideal choice to cover all dual-supply needs for the most popular recreational boats.
BENEFITS
Ideal for most popular range of motorhomes & caravans
High mounting flexibility
Maintenance free
High vibration & tilt resistant, spill-proof, leak-proof
With AGM technology (absorbed glass mat flat plate or orbital) with VRLA venting (valve regulated) , Wh* performance range coverage goes from 450Wh to 2100Wh
Manufacturer: ExidePart Number: EP600Weight: 21kgLength: 278mmWidth: 175mmHeight: 190mmVoltage: 12VCapacity (AH): 70Cold Cranking (EN): 760Terminal Layout: + rightBattery Type: AGMWarranty: 12 MonthsApplication: Engine Start
Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls Series 5 S12-290 AGM Deep Cycle AGM battery features thick plates with a high density active material. This design allows for reserve energy to be stored deep within the battery plates and released during slow discharge. The Rolls AGM range are sealed, non hazardous and completely maintenance free and will suit the customer looking for a long reliable, maintenance free service life.

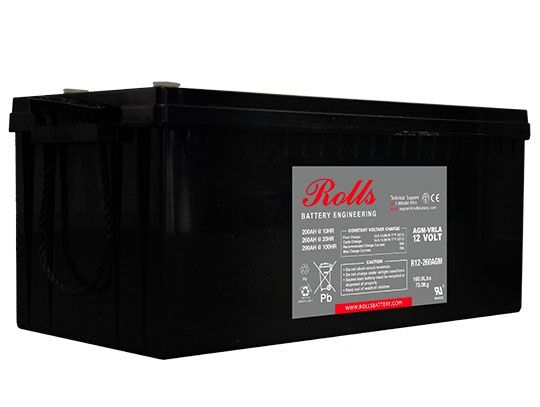

Rolls has designed a Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are the smart choice for demanding renewable applications.They are designed and built differently than standard batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specifications
Weight
74 kg
163 lbs
Length
52.1 cm
20.51"
Width
26.9 cm
10.59"
Height Inc. Term.
24.5 cm
9.65"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope
Series
AGM-S
Warranty
See Warranty Terms
Volts
12
BCI
8D
Cells
6
Terminal Type
LT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
LT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
50 A
Maximum Charge Current
80 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
1.8 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
1525
Marine Crank Amps (MCA) 32°F / 0°C
1830
Reserve Capacity (RC @ 25A)
578 Minutes
Reserve Capacity (RC @ 75A)
145 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
290 AH
2.9 A
@ 20 Hour Rate
260 AH
13 A
@ 10 Hour Rate
234 AH
23.4 A
@ 5 Hour Rate
214 AH
42.8 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
148
78.3
58.9
42.3
28.3
23.4
View all Rolls Batteries
Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls S Series S12-230 AGM Deep Cycle AGM battery features thick plates with a high density active material. This design allows for reserve energy to be stored deep within the battery plates and released during slow discharge. The Rolls AGM range are sealed, non hazardous and completely maintenance free and?will suit the customer looking for a long reliable, maintenance free service life.

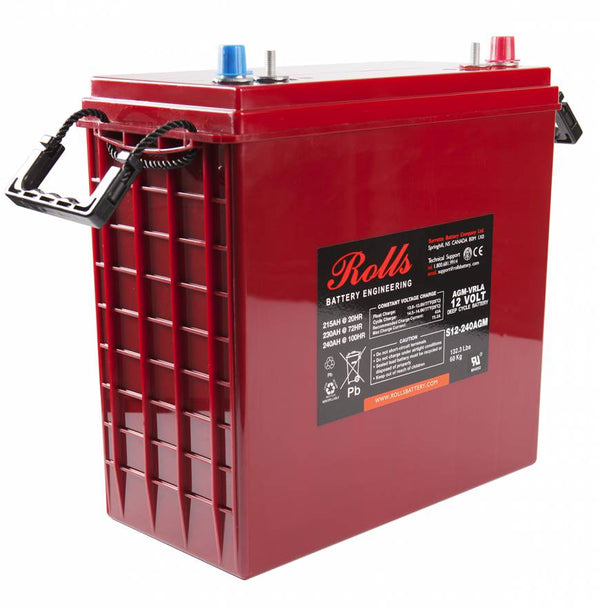

Rolls has designed a Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are the smart choice for demanding renewable applications.They are designed and built differently than standard batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specifications
Weight
61.5 kg
135.5 lbs
Length
53 cm
20.87"
Width
20.9 cm
8.23"
Height Inc. Term.
23.9 cm
9.41"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope / Plastic Handle
Series
AGM-S
Warranty
See Warranty Terms
Volts
12
BCI
4D
Cells
6
Terminal Type
LT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
LT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
40 A
Maximum Charge Current
65 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
2.3 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
1200
Marine Crank Amps (MCA) 32°F / 0°C
1425
Reserve Capacity (RC @ 25A)
400 Minutes
Reserve Capacity (RC @ 75A)
105 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
230 AH
2.3 A
@ 20 Hour Rate
210 AH
21 A
@ 10 Hour Rate
189 AH
18.9 A
@ 5 Hour Rate
172 AH
34.4 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
116
64.3
47.6
33.3
22.9
18.9
View all Rolls Batteries
What is the PS10?
The PS10 or Power Stack 10 is TBB Power's latest 48V lithium battery packs, designed to deliver high energy density and exceptional performance for residential and commercial applications. With a compact design and long cycle life, this battery pack offers an ideal solution for your energy storage needs.
Key features:
High capacity and power output: Engineered to provide large capacity and high-power output, making them suitable for a variety of energy-intensive applications.
Safe and reliable: Utilises lithium iron phosphate (LiFePO4) cells known for their safety and high energy density, ensuring reliable performance over time.
Modular design: The PS5 supports up to 32 units in parallel, allowing for flexible capacity expansion to meet diverse energy demands.
Space-saving installation: Supports both floor-mounted and wall-mounted installations, optimizing your available space and enhancing convenience.
Cost-effective integration: High integration design reduces installation costs and simplifies wiring processes for easier setup.
User-friendly features: Each battery pack comes with a mounting bracket for easy installation and handles on both sides for convenient transportation.
Built-in safety mechanisms: Equipped with a built-in circuit breaker for over-current protection, ensuring safe operation.
IP65 protection rating: Suitable for both indoor and outdoor use, providing durability and reliability in various environments.
Compatibility: Features perfect compatibility with mainstream inverters, supporting CAN and RS485 communication for seamless integration.
Real-time monitoring: Monitor battery status remotely through the NOVA APP & Web and locally via the optional TBB E4 Monitor (sold separately) and, ensuring you stay informed about your energy usage.
Applications:
The Power Stack 5 is ideal for a range of residential and commercial applications. It's advanced features make it perfect for energy storage systems that require high capacity and flexibility, including solar power systems, backup power solutions, and off-grid setups.
This battery pack is designed to provide long-lasting performance, with a focus on safety, efficiency, and user convenience.
This battery pack comes securely packaged with a user manual and installation accessories.
Specifications:
Nominal voltage: 48V
Work voltage range: 42 – 54.75V
Nominal capacity: 105Ah
Maximum power: 5.04kW
Peak current: 120A
Maximum charge and discharge current: 105A
Recommended charge and discharge current: 52.5A
Self-discharging rate: <3% per month
Cycle life: 6000 (90% DoD, 70% SoH), @25°C, 0.5C
Operating discharge temperature: from -20°C to +55°C
Operating charge temperature: from 0°C to +55°C
Altitude: <2000m
Humidity: 95% (without condensation)
Protection: IP65
Size: 484 x 725.5 x 195 mm
Weight: 54.0 kg
This product is covered by a 5 year warranty
What is the PS10?
The PS10 or Power Stack 10 is TBB Power's latest 48V lithium battery packs, designed to deliver high energy density and exceptional performance for residential and commercial applications. With a compact design and long cycle life, this battery pack offers an ideal solution for your energy storage needs.
Key features:
High capacity and power output: Engineered to provide large capacity and high-power output, making them suitable for a variety of energy-intensive applications.
Safe and reliable: Utilises lithium iron phosphate (LiFePO4) cells known for their safety and high energy density, ensuring reliable performance over time.
Modular design: The PS10 supports up to 16 units in parallel, allowing for flexible capacity expansion to meet diverse energy demands.
Space-saving installation: Supports both floor-mounted and wall-mounted installations, optimizing your available space and enhancing convenience.
Cost-effective integration: High integration design reduces installation costs and simplifies wiring processes for easier setup.
User-friendly features: Each battery pack comes with a mounting bracket for easy installation and handles on both sides for convenient transportation.
Built-in safety mechanisms: Equipped with a built-in circuit breaker for over-current protection, ensuring safe operation.
IP65 protection rating: Suitable for both indoor and outdoor use, providing durability and reliability in various environments.
Compatibility: Features perfect compatibility with mainstream inverters, supporting CAN and RS485 communication for seamless integration.
Real-time monitoring: Monitor battery status remotely through the NOVA APP & Web and locally via the optional TBB E4 Monitor (sold separately) and, ensuring you stay informed about your energy usage.
Applications:
The Power Stack 10 is ideal for a range of residential and commercial applications. It's advanced features make it perfect for energy storage systems that require high capacity and flexibility, including solar power systems, backup power solutions, and off-grid setups.
This battery pack is designed to provide long-lasting performance, with a focus on safety, efficiency, and user convenience.
This battery pack comes securely packaged with a user manual and installation accessories.
Specifications:
Nominal voltage: 48V
Work voltage range: 42 – 54.75V
Nominal capacity: 210Ah
Maximum power: 10.08kW
Peak current: 240A
Maximum charge and discharge current: 105A
Recommended charge and discharge current: 52.5A
Self-discharging rate: <3% per month
Cycle life: 6000 (90% DoD, 70% SoH), @25°C, 0.5C
Operating discharge temperature: from -20°C to +55°C
Operating charge temperature: from 0°C to +55°C
Altitude: <2000m
Humidity: 95% (without condensation)
Protection: IP65
Size: 484 x 968 x 195 mm
Weight: 94.0 kg
What is the ES100 II lithium battery module?
The ES100 II is a state-of-the-art 48V 105Ah lithium battery module from TBB Renewable, designed for backup power systems, solar off-grid applications, and residential energy storage. This module features a high energy density and a sleek, compact design, ensuring safe and efficient energy storage with a long cycling life. With its advanced technology, the ES100 II simplifies installation and enhances overall system performance.
Key features:
Safe and reliable: Utilises lithium iron phosphate (LiFePO4) cells, providing superior safety and longevity compared to traditional battery technologies.
Scalable capacity: Supports the connection of up to 32 modules in parallel, allowing for customizable energy solutions to meet varying demands.
Easy installation: Automatically assigns communication addresses to slave modules, making the parallel connection process straightforward and efficient.
High performance: Capable of short-time high-current charge and discharge with an impressive 90% depth of discharge (DoD) and a lifespan of up to 6,000 cycles.
Versatile compatibility: Features external CAN communication and an RS485 communication port for seamless integration with leading inverter brands, including TBB inverters.
User-friendly design: Equipped with universal positive and negative terminals for hassle-free installation and comes standard with a 300A parallel bus bar.
Durable protection: The modules are IP20 protected as standard and can be easily fitted to a mounting bracket or rack cabinet (both sold separately). The cabinet meets IP65 protection standards, ensuring reliability in various environments.
Intelligent management system: Each battery pack includes an advanced Battery Management System (BMS) for effective monitoring and management of modules.
Convenient handling: Designed with practical pull bars for enhanced ease of operation.
Applications:
The ES100 II is ideal for backup power systems, solar energy storage, and off-grid applications. Its advanced features make it an excellent choice for residential energy solutions, emergency power storage, and integration with renewable energy sources.
The expected service life of the ES100 II is over 6,000 cycles, ensuring long-lasting performance for your energy needs.
The battery module comes packaged securely with a user manual and necessary installation hardware.
Battery specifications:
Nominal voltage: 48V
Work voltage range: 42 – 54.75V
Nominal capacity: 105Ah
Peak current: 120A
Maximum charge and discharge current: 105A
Recommened charge and discharge current: 52.5A
Self-discharging rate: <3% per month
Cycle life: 6000 (90% DoD, 70% SoH), @25°C, 0.5C
Operating discharge temperature: from -20°C to +55°C
Operating charge temperature: from 0°C to +55°C
Altitude: <2000m
Humidity: 95% (without condensation)
Protection: IP20
Size: 482.6 x 133.4 x 450 mm
Weight: 40.0 kg
Topband battery makes our products available through the best knowledge-based distribution and service organizations for the people and businesses who rely on batteries to work, live, or get away.
Topband battery makes our products available through the best knowledge-based distribution and service organizations for the people and businesses who rely on batteries to work, live, or get away.
Topband battery provides advanced LiFePO4 batteries for lead acid drop-in battery solution, light and compact drop-in replacement
Features
Optimal cost performance
Standard design, mature and stable
3500+Cycle Life
Support multiple series or parallel connections
Low temperature operation - Can discharge at temperatures down to -20-65°C
Energy density is twice that of lead-acid battery
Nominal Voltage
12.8V
Battery Capacity
200Ah
Recommended Charge Current
100A
Recommended Discharge Current
≤100A
Max Continuous Charge Current
200A
Max Continuous Discharge Current
200A
Cycle Life
≥3500
Dimensions
L484 x W170 x H241mm
Weight
26Kg
Warranty
5 Years
Battery Technology
Lithium
Battery Application
Deep Cycle
Victron Energy Lithium SuperPack 25.6V 50Ah (M8) – BAT524050705
The SuperPack batteries are extremely easy to install, not needing any additional components.The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
The batteries can be connected in parallel. Series connection is not allowed.
Features
Integrated BMS and safety switch
The SuperPack batteries are extremely easy to install, needing no additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
Abuse proof
A lead-acid battery will fail prematurely due to sulfation:
If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
If it is left partially charged or worse, fully discharged.
A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion compared to lead-acid.
The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are exceeded.
Efficient
In several applications (especially off-grid solar), energy efficiency can be of crucial importance.
The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%.
The round-trip energy efficiency of a Li-ion battery is 92%.
The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state).
In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions.
Can be connected in parallel
The batteries can be connected in parallel. Series connection is not allowed. Use in upright position only.
Brand
Victron Energy
Manufacturer Part Number
BAT524050705
Voltage
25.6V
Battery Capacity (C20)
50Ah
Terminal Type
M8
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
H220 x W330 x D172mm
Weight
14Kg
Warranty
3 Years
Battery Application
Deep Cycle
Battery Technology
Lithium
Country of Manufacture
China
Victron Energy Lithium SuperPack 12.8V 60Ah (M6) – BAT512060705
The SuperPack batteries are extremely easy to install, not needing any additional components.The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
The batteries can be connected in parallel. Series connection is not allowed.
Features
Integrated BMS and safety switch
The SuperPack batteries are extremely easy to install, needing no additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
Abuse proof
A lead-acid battery will fail prematurely due to sulfation:
If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
If it is left partially charged or worse, fully discharged.
A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion compared to lead-acid.
The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are exceeded.
Efficient
In several applications (especially off-grid solar), energy efficiency can be of crucial importance.
The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%.
The round-trip energy efficiency of a Li-ion battery is 92%.
The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state).
In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions.
Can be connected in parallel
The batteries can be connected in parallel. Series connection is not allowed. Use in upright position only.
Brand
Victron Energy
Manufacturer Part Number
BAT512060705
gtin
8719076047544
Voltage
12.8V
Battery Capacity (C20)
60Ah
Terminal Type
M6
Terminal Layout
Left Hand Positive
Dimensions (Including Terminals)
H213 x W229 x D138mm
Weight
9.5Kg
Warranty
3 Years
Battery Technology
Lithium
Battery Application
Deep Cycle
Country of Manufacture
China
Victron Energy Peak Power Pack 12.8V 30Ah – PPP012030000
The Victron Energy Peak 12.8V 30Ah Power Pack is a complete substitute for heavy lead acid batteries in applications where high currents occur for short time. Being primarily meant for caravan movers, it is equipped with a built-in charger allowing charging from the vehicle electrical system whilst travelling with the caravan. This way the pack will be fully charged upon arrival to the camping site. If necessary, the charging is possible using the supplied adapter via a grid outlet. Charging from a solar panel is also possible.
Features Peak Power Pack 12.8V 30Ah
Lightweight and easy to install– Ideal for mobile applications.
Effective protection against improper use– Ideal for solar power and other applications where excessive discharge might quickly cause damage to lead acid batteries.
Storage mode– Reduces power consumption to almost zero. Prevents damage due to excessive discharge of the battery during storage.
Remote control with status indicator
– Push button (supplied) with a dual-colour LED status indicator:
Short push of the button: high capacity output activated for 30 minutes (mover applications), red LED
Hold down for 2 seconds: high capacity output always activated, slow flashing red LED.
Hold down for 5 seconds: storage mode, blue LED flashes 10 times
Battery is charged via input 1: slow flashing blue LED
Battery fully charged: blue LED
Overload or overheating: flashing red LED
VE.Direct port: can be connected to a PC or smartphone(VE.Direct to USB or VE.Direct Bluetooth Smart dongle required)
Operation:
Output 1: on / 30-minute timer / off
Output 2: on/off
Input 1: on/off
Monitoring:
Battery voltage
Temperature and alarms
Brand
Victron Energy
Manufacturer Part Number
PPP012030000
gtin
8719076017325
Voltage
12.8V
Battery Capacity (C20)
30Ah
Dimensions (Including Terminals)
H132 x W190 x D172mm
Weight
3.8Kg
Warranty
3 Years
Battery Technology
Lithium
Country of Manufacture
India
The Victron Energy Peak 12.8V 20Ah Power Pack is a complete substitute for heavy lead acid batteries in applications where high currents occur for short time. Being primarily meant for caravan movers, it is equipped with a built-in charger allowing charging from the vehicle electrical system whilst travelling with the caravan. This way the pack will be fully charged upon arrival to the camping site. If necessary, the charging is possible using the supplied adapter via a grid outlet. Charging from a solar panel is also possible.
Features Peak Power Pack 12.8V 20Ah
Lightweight and easy to install– Ideal for mobile applications.
Effective protection against improper use– Ideal for solar power and other applications where excessive discharge might quickly cause damage to lead acid batteries.
Storage mode– Reduces power consumption to almost zero. Prevents damage due to excessive discharge of the battery during storage.
Remote control with status indicator
– Push button (supplied) with a dual-colour LED status indicator:
Short push of the button: high capacity output activated for 30 minutes (mover applications), red LED
Hold down for 2 seconds: high capacity output always activated, slow flashing red LED.
Hold down for 5 seconds: storage mode, blue LED flashes 10 times
Battery is charged via input 1: slow flashing blue LED
Battery fully charged: blue LED
Overload or overheating: flashing red LED
VE.Direct port: can be connected to a PC or smartphone(VE.Direct to USB or VE.Direct Bluetooth Smart dongle required)
Operation:
Output 1: on / 30-minute timer / off
Output 2: on/off
Input 1: on/off
Monitoring:
Battery voltage
Temperature and alarms
Brand
Victron Energy
Manufacturer Part Number
PPP012020000
gtin
8719076017318
Voltage
12.8V
Battery Capacity (C20)
20Ah
Dimensions (Including Terminals)
H132 x W190 x D172mm
Weight
3.8Kg
Warranty
3 Years
Battery Technology
Lithium
Country of Manufacture
India
TOPBAND battery provides an advanced Lithium drop-in battery solution, Widely used in RV, fishing boats, cleaning machines, golf carts, solar energy storage systems and other fields.
Product features
Wide operating temperature range, supports low-temperature heating
Equipped with CAN/RS485 interface, can be compatible with various inverters
UL1973/UN38.3/IEC/62619/CE certified, safety and quality guaranteed
Bluetooth communication function, support Bluetooth APP upgrade firmware
6000+Cycles, 80% DPD 0.2C/0.2C
Support multiple series or parallel connections
Voltage
12.8V
Battery Capacity
200Ah
Rated Energy
2.56kWh
Internal Resistance(@1kHz AC)
≤20mΩ
Charge Voltage
14.0-14.6V
Float Voltage
13.6-13.8V
Recommended Charge Current
100A
Recommended Discharge Current
≤100A
Max Continuous Discharge Current
200A
Cycle Life
≥6000
Dimensions
L505 x W172 x H225mm
Weight
27Kg
Warranty
5 Years
Battery Technology
Lithium
Battery Application
Deep Cycle
RT12100G31 - new to Pylontech. The Pylontech RT12V is an all-purpose 12V Lithium-ion battery. Each battery incorporates its own battery management system with over/undervoltage and high/low temperature protection. Monitoring is available through Bluetooth or a Canbus connection. This battery weighs 12 KG.
For systems of 24 or 48V, batteries can be connected in series. Up to 16 batteries can be connected together to increase the systems capacity. The Pylon RT12 battery has a built-in heating film which automatically heats the battery to enable its use in minus temperature environments. The elements operates via the external charger connection.
ManufacturerPylon Technologies
CommunicationCanbus or Bluetooth
Dimensions (mm) (H x W x D)325 x 173.5 x 226
IP RatingIP67
Nominal Voltage12.8 Volts
Recommended charge/discharge50A
Max charge/discharge100A
Working temperature-40℃ to 60℃
Nominal Capacity100ah
The Varta Professional Dual Purpose battery is designed for motorhomes, caravans and boats with moderate energy demands. Long lasting and maintenance-free, this battery is ideal for seasonal use.Benefits
Designed for standard motorhomes, caravans and boats with less or moderate energy demand
Long lasting ñ up to twice the cyclic stability of conventional flooded batteries (up to 200 cycles @ 50% DOD)
Minimal self-discharge, ideal for seasonal use
Ideal for dual power applications (can be used for both starting and overall energy supply)
Varta Long Code
930 140 080
Voltage
12V
Battery Capacity (C20)
140Ah
Cold Cranking
800CCA
Terminal Type
A, Standard Automotive
Terminal Layout
Side
Dimensions (Including Terminals)
L513 x W189 x W223mm
Weight
36Kg
Warranty
2 Years
Country of Manufacture
Germany
Battery Technology
Sealed Calcium
Battery Application
Dual Purpose
Lithium-iron-phosphate (LiFePO4 or LFP) is the safest of the mainstream li-ion battery types. The nominal voltage of a LFP cell is 3,2V (lead-acid: 2V/cell). A 12,8V LFP battery therefore consists of 4 cells connected in series; and a 25,6V battery consists of 8 cells connected in series.
Features
Rugged
A lead-acid battery will fail prematurely due to sulfation:
If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime).
A LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid. Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below).
LFP is therefore the chemistry of choice for demanding applications.
Efficient
In several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance.
The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average leadacid battery is 80%.
The round-trip energy efficiency of a LFP battery is 92%.
The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state). In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.
Size and weight
Saves up to 70% in space Saves up to 70% in weight
Expensive?
LFP batteries are expensive when compared to lead-acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.
Bluetooth
With Bluetooth cell voltages, temperature and alarm status can be monitored. Very useful to localize a (potential) problem, such as cell imbalance.
BMS
Our LFP batteries have integrated cell balancing and cell monitoring. Up to 5 batteries can be paralleled and up to four 12V batteries or two 24V batteries can be series connected, so that a 48V battery bank of up to 1500Ah can be assembled. The cell balancing/monitoring cables can be daisy-chained and must be connected to a Battery Management System (BMS).
Brand
Victron Energy
Manufacturer Part Number
BAT512116610
GTIN
8719076048930
Voltage
12.8V
Battery Capacity (C20)
160Ah
Terminal Type
M10
Terminal Layout
Right Hand Positive
Dimensions (Including Terminals)
H237 x W321 x D152mm
Weight
33Kg
Warranty
3 Years
Country of Manufacture
China
Battery Technology
Lithium
Battery Application
Deep Cycle
This heavy duty deep cycle battery is designed to meet the needs of leisure and marine vehicles. With its sealed calcium construction which makes it 100% maintenance free this battery is fast becoming a favourite within the industry.
This range is suited to seasonal use such as Caravans Motorhomes Boats RV Camping and much more.
The product is supplied charged and ready to fit.
Features
Excellent design handle – Easy battery replacement
Integrated computer designed and reinforced container – Protection from vibrations and impact
Sealed covers – Prevents acid leaks and minimizes gassing
Totally sealed and spill proof
Maintenance Free – no topping up required
Glass fibre separators
Safety venting system
Sealed water recombination system
Tough polypropylene case design
Exide EP900 Dual AGM Battery (WG31) 100Ah 720cca
Exide DUAL AGM battery range is designed for boats and caravans with one battery bank for all consumers. It is also suitable for additional batteries applied directly to electrical winches, thrusters and trolling motors. The batteries are partially discharged during use. DUAL AGM’s reinforced design, combined with a good recharging procedure, is key to providing the best result and service life.
The DUAL AGM battery range, with Wh* performance from 450-2100 Wh, is the ideal choice to cover all dual-supply needs for the most popular recreational boats.
BENEFITS
Ideal for most popular range of motorhomes & caravans
High mounting flexibility
Maintenance free
High vibration & tilt resistant, spill-proof, leak-proof
With AGM technology (absorbed glass mat flat plate or orbital) with VRLA venting (valve regulated) , Wh* performance range coverage goes from 450Wh to 2100Wh
Manufacturer: ExidePart Number: EP900Weight: 32kgLength: 330mmWidth: 173mmHeight: 240mmVoltage: 12VCapacity (AH): 100Cold Cranking (EN): 720Terminal Layout: + leftBattery Type: AGMWarranty: 12 MonthsApplication: Engine Start
Exide EP500 Dual AGM Battery (027) 60Ah 680cca
Exide DUAL AGM battery range is designed for boats and caravans with one battery bank for all consumers. It is also suitable for additional batteries applied directly to electrical winches, thrusters and trolling motors. The batteries are partially discharged during use. DUAL AGM’s reinforced design, combined with a good recharging procedure, is key to providing the best result and service life.
The DUAL AGM battery range, with Wh* performance from 450-2100 Wh, is the ideal choice to cover all dual-supply needs for the most popular recreational boats.
BENEFITS
Ideal for most popular range of motorhomes & caravans
High mounting flexibility
Maintenance free
High vibration & tilt resistant, spill-proof, leak-proof
With AGM technology (absorbed glass mat flat plate or orbital) with VRLA venting (valve regulated) , Wh* performance range coverage goes from 450Wh to 2100Wh
Manufacturer: ExidePart Number: EP500Weight: 17.9kgLength: 242mmWidth: 175mmHeight: 190mmVoltage: 12VCapacity (AH): 60Cold Cranking (EN): 680Terminal Layout: + rightBattery Type: AGMWarranty: 12 MonthsApplication: Engine Start
Exide EP450 Dual AGM Battery (MAX900DC) 50Ah 750cca
Exide DUAL AGM battery range is designed for boats and caravans with one battery bank for all consumers. It is also suitable for additional batteries applied directly to electrical winches, thrusters and trolling motors. The batteries are partially discharged during use. DUAL AGM’s reinforced design, combined with a good recharging procedure, is key to providing the best result and service life.
The DUAL AGM battery range, with Wh* performance from 450-2100 Wh, is the ideal choice to cover all dual-supply needs for the most popular recreational boats.
BENEFITS
Ideal for most popular range of motorhomes & caravans
High mounting flexibility
Maintenance free
High vibration & tilt resistant, spill-proof, leak-proof
With AGM technology (absorbed glass mat flat plate or orbital) with VRLA venting (valve regulated) , Wh* performance range coverage goes from 450Wh to 2100Wh
Manufacturer: ExidePart Number: EP450Weight: 19kgLength: 260mmWidth: 173mmHeight: 206mmVoltage: 12VCapacity (AH): 50Cold Cranking (EN): 750Terminal Layout: + leftBattery Type: AGMWarranty: 12 MonthsApplication: Engine Start
Exide EP1500 Dual AGM Battery (629) 180Ah 900cca
Exide DUAL AGM battery range is designed for boats and caravans with one battery bank for all consumers. It is also suitable for additional batteries applied directly to electrical winches, thrusters and trolling motors. The batteries are partially discharged during use. DUAL AGM’s reinforced design, combined with a good recharging procedure, is key to providing the best result and service life.
The DUAL AGM battery range, with Wh* performance from 450-2100 Wh, is the ideal choice to cover all dual-supply needs for the most popular recreational boats.
BENEFITS
Ideal for most popular range of motorhomes & caravans
High mounting flexibility
Maintenance free
High vibration & tilt resistant, spill-proof, leak-proof
With AGM technology (absorbed glass mat flat plate or orbital) with VRLA venting (valve regulated) , Wh* performance range coverage goes from 450Wh to 2100Wh
Dimensions
513 × 223 × 223 mm
Brand
Exide
Battery Type
AGM/EFB
Battery by Application
All Batteries, Leisure, Marine
Battery Voltage (V)
12V
Battery Warranty
2 Years Limited Warranty
Exide EP1200 Dual AGM Battery (627) 140Ah 700cca
Exide DUAL AGM battery range is designed for boats and caravans with one battery bank for all consumers. It is also suitable for additional batteries applied directly to electrical winches, thrusters and trolling motors. The batteries are partially discharged during use. DUAL AGM’s reinforced design, combined with a good recharging procedure, is key to providing the best result and service life.
The DUAL AGM battery range, with Wh* performance from 450-2100 Wh, is the ideal choice to cover all dual-supply needs for the most popular recreational boats.
BENEFITS
Ideal for most popular range of motorhomes & caravans
High mounting flexibility
Maintenance free
High vibration & tilt resistant, spill-proof, leak-proof
With AGM technology (absorbed glass mat flat plate or orbital) with VRLA venting (valve regulated) , Wh* performance range coverage goes from 450Wh to 2100Wh
Weight
45 kg
Dimensions
513 × 189 × 223 mm
Brand
Exide
Battery Type
AGM/EFB
Battery by Application
All Batteries, Leisure, Marine
Battery Voltage (V)
12V
Battery Warranty
2 Years Limited Warranty
54Ah Lithium Leisure Battery
A huge advantage to lithium technology is the life cycle rating which far surpasses alternative technologies. This specific item has 7000 charge and discharge cycles at a depth of 50%
Features
Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions
Built-in automatic protection for over-charge, over discharge, over current and over temperature
Free of maintenance
Internal cell balancing
Lighter weight: About 40% -50% of the weight of a comparable lead acid battery
Can be charged using most standard lead-acid charges (set)
Wider temperature range:-20°C-60°C
Support for Series application expansion (up to 51.2V) and two in parallel
Applications
UPS
Solar &Wind Power System
Golf Cart
Electric Vehicle , E-bike, E-rickshaw etc.
Lighting
Motorhomes
Campervans
Caravans
100Ah Lithium LiFePO4 Leisure Battery
A huge advantage to lithium technology is the life cycle rating which far surpasses alternative technologies. This specific item has 7000 charge and discharge cycles at a depth of 50%
Features
Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions
Built-in automatic protection for over-charge, over discharge, over current and over temperature
Free of maintenance
Internal cell balancing
Lighter weight: About 40% -50% of the weight of a comparable lead acid battery
Can be charged using most standard lead-acid charges (set)
Wider temperature range:-20°C-60°C
Support for Series application expansion (up to 51.2V) and two in parallel
Applications
UPS
Solar &Wind Power System
Golf Cart
Electric Vehicle , E-bike, E-rickshaw etc.
Lighting
Motorhomes
Camper vans
Caravans
Brand
TN Power
Manufacturer Part Number
TN100
Voltage
12V
Capacity (C20)
100Ah
Terminal Type
M8
Terminal Layout
LH+
Dimensions (Including Terminals)
L328 x W172 x H220mm
Weight
13.1Kg
Warranty
4 Years
Battery Technology
Lithium
Battery Application
Deep Cycle
Country of Manufacture
China
Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls S Series S12-240 AGM Deep Cycle AGM battery features thick plates with a high density active material. This design allows for reserve energy to be stored deep within the battery plates and released during slow discharge. The Rolls AGM range are sealed, non hazardous and completely maintenance free and?will suit the customer looking for a long reliable, maintenance free service life.
Rolls has designed a Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are the smart choice for demanding renewable applications.They are designed and built differently than standard batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specifications
Weight
63.5 kg
140 lbs
Length
38.1 cm
15"
Width
17.8 cm
7.01"
Height Inc. Term.
37.1 cm
14.61"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope / Plastic Handle
Series
AGM-S
Warranty
See Warranty Terms
Volts
12
BCI
J185
Cells
6
Terminal Type
DT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
DT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
45 A
Maximum Charge Current
65 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
2.3 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
1000
Marine Crank Amps (MCA) 32°F / 0°C
1200
Reserve Capacity (RC @ 25A)
420 Minutes
Reserve Capacity (RC @ 75A)
110 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
240 AH
2.4 A
@ 20 Hour Rate
215 AH
10.75 A
@ 10 Hour Rate
193 AH
19.3 A
@ 5 Hour Rate
172 AH
34.4 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
112
66.1
50.6
33.7
22.7
19.3
View all Rolls Batteries
