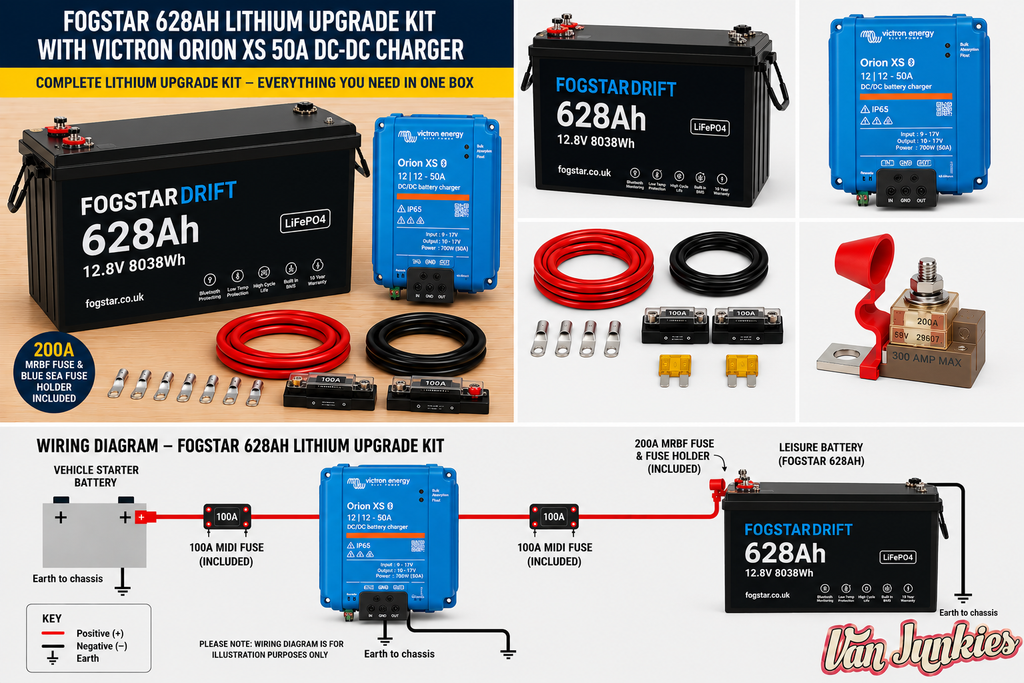

Complete Campevan/Motorhome Lithium Upgrade Kit - Fogstar 628ah Victron Orion XS 50A DC-DC Charger
Upgrade your campervan or motorhome leisure battery system to lithium with this complete Fogstar 628Ah Lithium Upgrade Kit, featuring the Fogstar Drift 628Ah LiFePO4 leisure battery, Victron Orion XS 50A DC-DC charger, complete 7m DC-DC installation kit and Blue Sea Systems 200A MRBF battery fuse and fuse holder.
Designed to take the guesswork out of upgrading from a traditional AGM, lead-acid or gel leisure battery to lithium, we've brought together the key components required for a powerful, reliable and correctly protected lithium battery and alternator charging system.
Rather than simply supplying a battery and charger, this kit includes the correctly sized 25mm² DC-DC charging cable, MIDI fuse protection, cable terminals and dedicated high-current MRBF battery protection.
Why Choose This Lithium Upgrade Kit?
Converting a campervan or motorhome to lithium isn't simply a case of swapping the old leisure battery for a lithium one.
Lithium batteries have different charging requirements and are capable of delivering significantly higher currents than conventional lead-acid batteries. A properly designed upgrade should therefore consider both how the lithium battery is charged and how the battery itself is protected.
This kit combines three key elements:
628Ah of LiFePO4 battery capacity
A high-capacity Fogstar Drift lithium leisure battery provides 8038Wh of nominal stored energy, making it an excellent upgrade for campervans and motorhomes with increasing electrical demands.
50A alternator charging
The Victron Orion XS allows the leisure battery to be charged at up to 50A while driving and provides the controlled lithium charging profile required when charging from the vehicle alternator.
Dedicated high-current battery protection
A Blue Sea Systems 200A MRBF fuse and terminal fuse block provide compact high-current protection close to the leisure battery.
The result is a carefully matched lithium upgrade package rather than a collection of unrelated components.
What's Included?

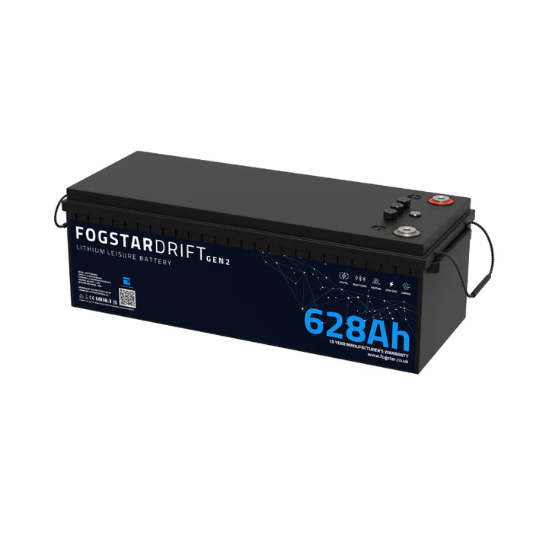

1 × Fogstar Drift 628Ah 12V LiFePO4 Leisure Battery (Generation 2)
The Fogstar Drift 628Ah is a powerful lithium leisure battery designed for campervans, motorhomes, boats and off-grid applications.
Key features include:
- 628Ah nominal capacity
- 8038Wh nominal energy storage
- LiFePO4 lithium battery chemistry
- Integrated Battery Management System (BMS)
- Bluetooth battery monitoring
- Integrated low-temperature heating
- IP67 rating
- EVE Grade A lithium cells
- 14.4V recommended charge voltage
- Suitable for high-demand campervan electrical systems
The large 628Ah capacity makes this an excellent choice for customers looking to significantly increase usable battery capacity without installing multiple traditional leisure batteries.

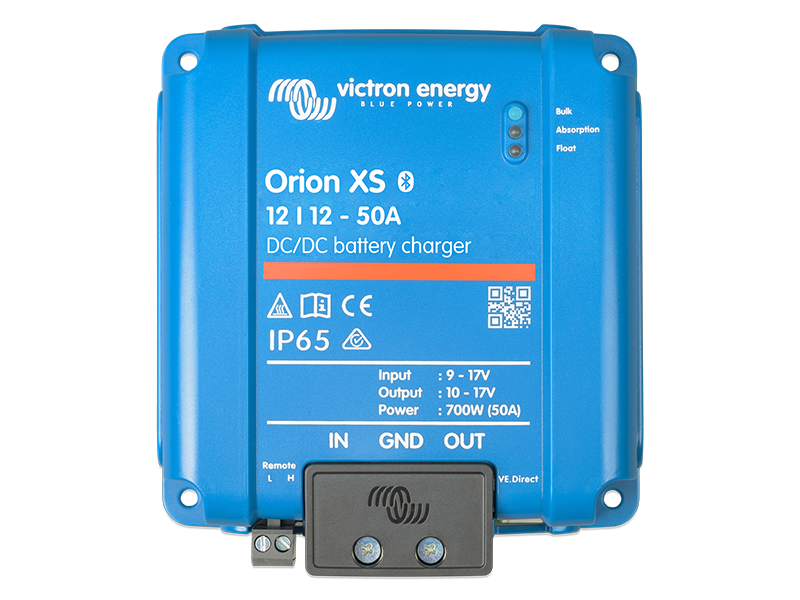

Victron Orion XS 50A DC-DC Battery Charger
The Victron Orion XS 12/12-50A provides intelligent battery-to-battery charging between your vehicle starter/alternator system and the Fogstar lithium leisure battery.
Capable of delivering up to 50A / 700W, the Orion XS is particularly well suited to modern campervans and motorhomes, including vehicles equipped with smart alternators.
Features include:
- Up to 50A charging current
- Up to 700W charging power
- Buck-boost technology
- Suitable for lithium batteries
- Compatible with smart alternators
- Configurable charging parameters
- Automatic engine shutdown detection
- Intelligent charging algorithms
- Bluetooth configuration and monitoring using VictronConnect
- Compact, efficient design
- Non-isolated configuration
A 50A DC-DC charger can theoretically replace around 50Ah of battery capacity for every hour of driving when operating at full output, although actual charging will depend on battery state of charge, charger settings, alternator conditions and other factors.
Complete 7m DC-DC Installation Kit
We've included the cabling, fuse protection and terminals required for a typical DC-DC charger installation.
The DC-DC installation kit includes:
- Victron Orion XS 50A non-isolated DC-DC charger
- 7 metres of 25mm² heavy-duty flexible positive battery cable
- 2 metres of 25mm² heavy-duty flexible negative battery cable
- 2 × Victron MIDI fuse holders
- 2 × 100A MIDI fuses
- 8 × 25mm² M6 battery cable lugs
The non-isolated Orion XS allows the charger negative connection to be grounded locally to a suitable chassis earth or negative busbar, which is why only 2m of negative cable is supplied.
Blue Sea Systems 200A MRBF Battery Protection
We've also included a Blue Sea Systems 200A Marine Rated Battery Fuse (MRBF) together with the appropriate Blue Sea terminal fuse holder.
Unlike a conventional fuse positioned further along a cable run, an MRBF terminal fuse can be installed directly at the battery connection using the appropriate fuse block, providing compact high-current circuit protection close to the power source.
The kit includes:
- 1 × Blue Sea Systems 200A MRBF fuse
- 1 × Blue Sea Systems MRBF terminal fuse block
- Protective insulating cover
This is particularly important when installing lithium batteries because of the high fault currents that LiFePO4 batteries are capable of supplying.
Ideal for Campervan & Motorhome Lithium Upgrades
This kit is particularly suited to upgrading existing leisure battery systems in:
- Campervans
- Motorhomes
- Van conversions
- Self-build campervans
- Expedition vehicles
- 4x4 and overland vehicles
- Other 12V leisure electrical systems
It is ideal for replacing existing AGM, lead-acid or gel leisure batteries where the existing alternator charging arrangement also needs upgrading for lithium compatibility.
How Much Power Does 628Ah Give Me?
At a nominal 12.8V, the Fogstar 460Ah battery stores approximately:
628Ah × 12.8V = 8038Wh
That's 8kWh of nominal stored energy.
This makes the 628Ah system an excellent choice for campervans running equipment such as:
- Compressor fridges
- Lighting
- Water pumps
- USB and USB-C charging
- Phones and tablets
- Laptops
- TVs
- Diesel heaters
- Roof fans
- Large kitchen appliances via an inverter
- Other 12V and 230V equipment
Actual running times will depend on the appliances being used, inverter efficiency and other electrical loads.
Why Use a DC-DC Charger With Lithium?
Many older campervan electrical systems use a split-charge relay or voltage-sensitive relay (VSR) to connect the starter and leisure batteries while the engine is running.
This approach isn't ideal when upgrading to lithium.
The Victron Orion XS DC-DC charger controls the charging current and voltage delivered to the leisure battery, allowing the Fogstar lithium battery to be charged using an appropriate lithium charging profile while also controlling the load placed on the vehicle charging system.
It also makes this kit suitable for many modern Euro 5 and Euro 6 vehicles equipped with variable-voltage or smart alternators.
Designed as a Complete System
One of the biggest challenges when carrying out a DIY lithium upgrade is working out which additional parts are required.
What cable size do you need?
What fuse should protect the DC-DC charger?
Which terminals fit the equipment?
How should the lithium battery itself be protected?
Rather than leaving you to source these parts individually, Van Junkies has put together the battery, charging equipment, cable, fuses and terminals into one complete lithium upgrade package.
Our electrical systems and kits are put together by campervan electrical specialists, so you get components that have been selected to work together.
Other Lithium Upgrade Kits
Need Help With Your Lithium Upgrade?
Not sure whether the Fogstar 230Ah and Victron Orion XS 50A combination is right for your campervan or motorhome?
Speak to the Van Junkies team.
We specialise in campervan and motorhome electrical systems and can help with battery capacity, DC-DC charging, solar, mains charging, inverters and complete off-grid electrical systems.
Technical Specification

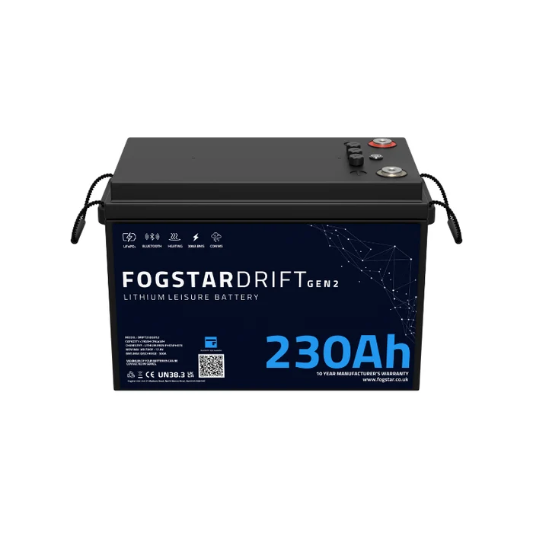

Battery: Fogstar Drift 230Ah LiFePO4 (Generation 2)
Nominal battery voltage: 12.8V
Battery capacity: 230Ah
Nominal stored energy: 2,944Wh
Battery monitoring: Bluetooth
Low-temperature heating: Yes
DC-DC charger: Victron Orion XS 12/12-50A
Maximum DC-DC charge current: 50A
Maximum DC-DC power: 700W
DC-DC configuration: Non-isolated
Positive DC-DC cable: 7m × 25mm²
Negative DC-DC cable: 2m × 25mm²
DC-DC protection: 2 × 100A MIDI fuses and holders
Battery protection: Blue Sea Systems 200A MRBF
MRBF fuse holder: Blue Sea Systems terminal fuse block
System voltage: 12V
