Rolls Batteries
Rolls product lines offer premium deep cycle batteries in a wide range of voltage and capacity options. The Rolls brand and distinctly red cases are well-recognized around the world and represent our longstanding commitment to deliver outstanding quality, dependability and support. Rolls flooded & sealed batteries are chosen by industry professionals and customers time and time again.
13 Products Found
£355.99
Rolls Series 5 S12-160 AGM Deep Cycle Battery
Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls S Series S12-160 AGM Deep Cycle AGM battery features thick plates with a high density active material. This design allows for reserve energy to be stored deep within the battery plates and released during slow discharge. The Rolls AGM range are sealed, non hazardous and completely maintenance free and?will suit the customer looking for a long reliable, maintenance free service life.
Rolls has designed a Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are the smart choice for demanding renewable applications.They are designed and built differently than standard batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specifications
Weight
44 kg
97 lbs
Length
34.1 cm
13.43"
Width
17.2 cm
6.77"
Height Inc. Term.
30.9 cm
12.17"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Nylon Strap
Series
AGM-S
Warranty
See Warranty Terms
Volts
12
BCI
SPEC
Cells
6
Terminal Type
DT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
DT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
30 A
Maximum Charge Current
40 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
3.6 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
795
Marine Crank Amps (MCA) 32°F / 0°C
950
Reserve Capacity (RC @ 25A)
260 Minutes
Reserve Capacity (RC @ 75A)
75 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
160 AH
1.6 A
@ 20 Hour Rate
145 AH
7.25 A
@ 10 Hour Rate
126 AH
12.6 A
@ 5 Hour Rate
115 AH
23 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
76.9
44.3
31.8
22.7
15.3
12.6
View all Rolls Batteries
...Read more
View Product
£297.99
Rolls Series 5 S12-128 AGM Deep Cycle Battery
Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls S Series S12-128 AGM Deep Cycle AGM battery features thick plates with a high density active material. This design allows for reserve energy to be stored deep within the battery plates and released during slow discharge. The Rolls AGM range are sealed, non hazardous and completely maintenance free and?will suit the customer looking for a long reliable, maintenance free service life.
Rolls has designed a Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are the smart choice for demanding renewable applications.They are designed and built differently than standard batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specifications
Weight
32 kg
70.5 lbs
Length
32.8 cm
12.91"
Width
17.5 cm
6.89"
Height Inc. Term.
23.7 cm
9.33"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Nylon Strap
Series
AGM-S
Warranty
See Warranty Terms
Volts
12
BCI
Grp 31
Cells
6
Terminal Type
DT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
DT
Charge
Charge Voltage Range
14.5-14.9 V/cell @ 25°C (77°F)
Float Voltage Range
13.6-13.8 V/cell @ 25°C (77°F)
Recommended Charge Current
25 A
Maximum Charge Current
35 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
5 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
800
Marine Crank Amps (MCA) 32°F / 0°C
1000
Reserve Capacity (RC @ 25A)
220 Minutes
Reserve Capacity (RC @ 75A)
70 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
128 AH
1.28 A
@ 20 Hour Rate
115 AH
5.75 A
@ 10 Hour Rate
105 AH
10.5 A
@ 5 Hour Rate
97 AH
19.3 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
62.1
33
27
18.2
11.9
10.5
View all Rolls Batteries
...Read more
View Product
£242.99

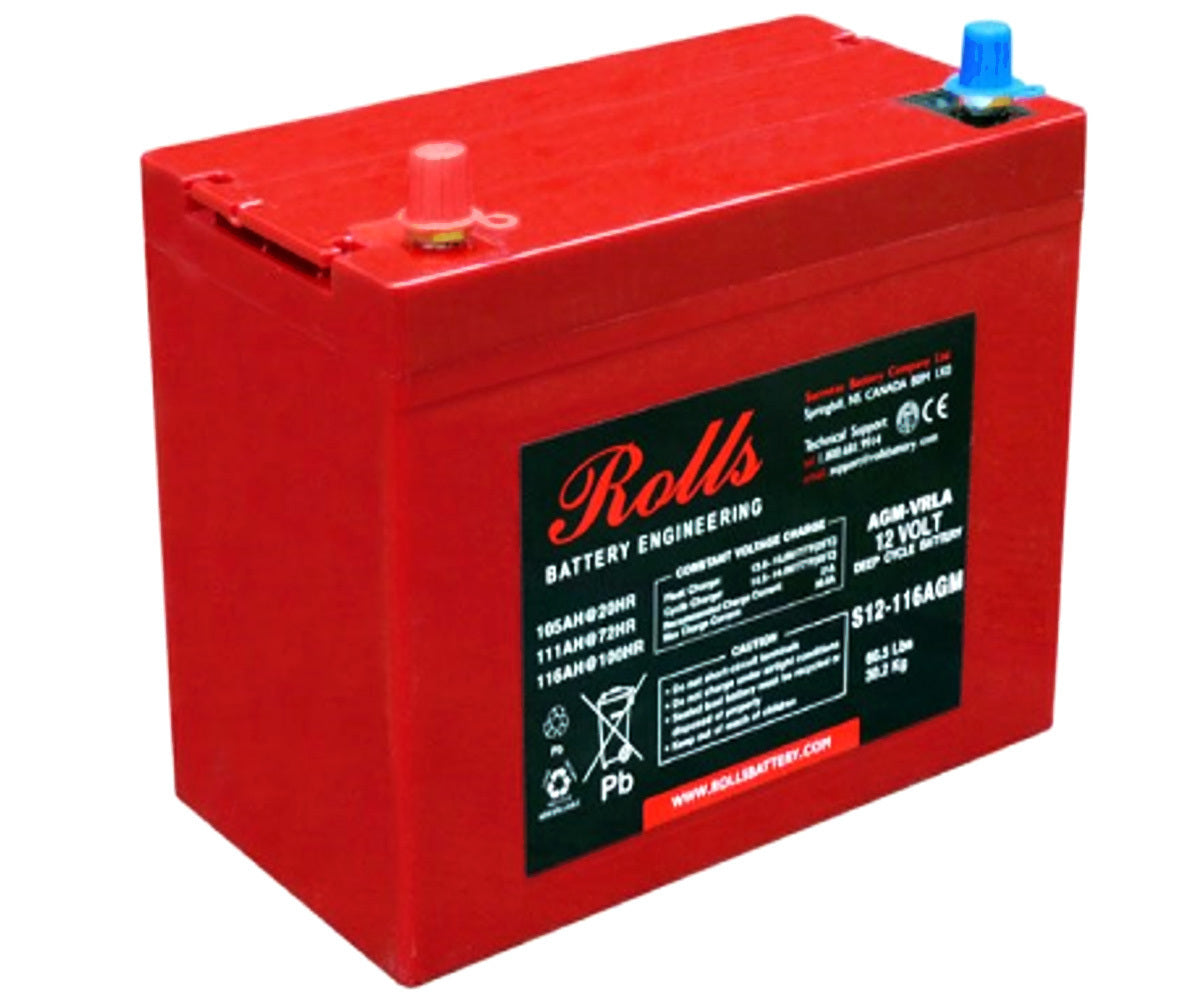

Rolls Series 5 S12-116 AGM Deep Cycle Battery
Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls S Series S12-116 AGM Deep Cycle AGM battery features thick plates with a high density active material. This design allows for reserve energy to be stored deep within the battery plates and released during slow discharge. The Rolls AGM range are sealed, non hazardous and completely maintenance free and?will suit the customer looking for a long reliable, maintenance free service life.
Rolls has designed a Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are the smart choice for demanding renewable applications.They are designed and built differently than standard batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specifications
Weight
30 kg
66 lbs
Length
30.7 cm
12.09"
Width
16.9 cm
6.65"
Height Inc. Term.
23.7 cm
9.33"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope / Plastic Handle
Series
AGM-S
Warranty
See Warranty Terms
Volts
12
BCI
Grp 27
Cells
6
Terminal Type
DT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
DT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
20 A
Maximum Charge Current
35 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
4 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
680
Marine Crank Amps (MCA) 32°F / 0°C
900
Reserve Capacity (RC @ 25A)
180 Minutes
Reserve Capacity (RC @ 75A)
43 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
116 AH
1.16 A
@ 20 Hour Rate
105 AH
5.25 A
@ 10 Hour Rate
95 AH
9.5 A
@ 5 Hour Rate
86 AH
17.2 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
59.6
31.6
23.7
17.2
11.4
9.5
View all Rolls Batteries
...Read more
View Product
£348.99
Rolls AGM Battery R12-200AGM
Specifications
Weight
60 kg
132.5 lbs
Length
52.2 cm
20.55"
Width
24.0 cm
9.45"
Height Inc. Term.
22.4 cm
8.82"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope
Series
AGM-R
Warranty
See Warranty Terms
Volts
12
BCI
4D
Cells
6
Terminal Type
F8
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
M8
Charge
Recommended Charge Current
40 A
Maximum Charge Current
60 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
1100
Marine Crank Amps (MCA) 32°F / 0°C
1380
Reserve Capacity (RC @ 25A)
380 Minutes
Reserve Capacity (RC @ 75A)
100 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
220 AH
2.2 A
@ 20 Hour Rate
200 AH
10 A
@ 10 Hour Rate
162 AH
16.2 A
@ 5 Hour Rate
144 AH
28.8 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
103
55.1
40.8
28.8
19.6
16.2
...Read more
View Product
£214.99
Rolls Series 5 S12-95 AGM Deep Cycle Battery
Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls S Series S12-95 AGM Deep Cycle AGM battery features thick plates with a high density active material. This design allows for reserve energy to be stored deep within the battery plates and released during slow discharge. The Rolls AGM range are sealed, non hazardous and completely maintenance free and?will suit the customer looking for a long reliable, maintenance free service life.
Rolls has designed a Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are the smart choice for demanding renewable applications.They are designed and built differently than standard batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specifications
Weight
23 kg
50.5 lbs
Length
26 cm
10.24"
Width
16.9 cm
6.65"
Height Inc. Term.
23.7 cm
9.33"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope / Plastic Handle
Series
AGM-S
Warranty
See Warranty Terms
Volts
12
BCI
Grp 24
Cells
6
Terminal Type
DT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
DT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
15 A
Maximum Charge Current
25 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
5.5 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
500
Marine Crank Amps (MCA) 32°F / 0°C
800
Reserve Capacity (RC @ 25A)
155 Minutes
Reserve Capacity (RC @ 75A)
34 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
95 AH
0.95 A
@ 20 Hour Rate
85 AH
4.25 A
@ 10 Hour Rate
77 AH
7.7 A
@ 5 Hour Rate
70 AH
14 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
43.8
25.6
19.2
13.9
9.2
7.7
Specifications
Weight
23 kg
50.5 lbs
Length
26 cm
10.24"
Width
16.9 cm
6.65"
Height Inc. Term.
23.7 cm
9.33"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope / Plastic Handle
View all Rolls Batteries
...Read more
View Product
Out of Stock
£208.99
Rolls AGM Battery R12-110AGM
Specifications
Weight
30 kg
66 lbs
Length
32.8 cm
12.91"
Width
17.2 cm
6.77"
Height Inc. Term.
22 cm
8.66"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope / Plastic Handle
Series
AGM-R
Warranty
See Warranty Terms
Volts
12
BCI
Grp 31
Cells
6
Terminal Type
DT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
DT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
20 A
Maximum Charge Current
35 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
9 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
760
Marine Crank Amps (MCA) 32°F / 0°C
910
Reserve Capacity (RC @ 25A)
205 Minutes
Reserve Capacity (RC @ 75A)
65 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
120 AH
1.2 A
@ 20 Hour Rate
110 AH
5.5 A
@ 10 Hour Rate
90 AH
9 A
@ 5 Hour Rate
82 AH
16.4 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
60.6
32.5
28
16.4
10.6
9
...Read more
£218.99
Rolls Battery AGM R12-100AGM
Specifications
Weight
27 kg
59.5 lbs
Length
30.6 cm
12.05"
Width
16.9 cm
6.65"
Height Inc. Term.
23.7 cm
9.33"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope / Plastic Handle
Series
AGM-R
Warranty
See Warranty Terms
Volts
12
BCI
Grp 27
Cells
6
Terminal Type
DT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
DT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
20 A
Maximum Charge Current
30 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
600
Marine Crank Amps (MCA) 32°F / 0°C
850
Reserve Capacity (RC @ 25A)
170 Minutes
Reserve Capacity (RC @ 75A)
40 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
110 AH
1.1 A
@ 20 Hour Rate
100 AH
5 A
@ 10 Hour Rate
90 AH
9 A
@ 5 Hour Rate
82 AH
16.40 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
60
30.1
25.1
15.8
10.4
8.6
...Read more
View Product
£178.99
Rolls AGM Battery R12-80AGM
Specifications
Weight
23 kg
50.5 lbs
Length
26 cm
10.24"
Width
16.9 cm
6.65"
Height Inc. Term.
23.7 cm
9.33"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope / Plastic Handle
Series
AGM-R
Warranty
See Warranty Terms
Volts
12
BCI
Grp24
Cells
6
Terminal Type
DT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
DT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
15 A
Maximum Charge Current
25 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
500
Marine Crank Amps (MCA) 32°F / 0°C
750
Reserve Capacity (RC @ 25A)
145 Minutes
Reserve Capacity (RC @ 75A)
30 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
90 AH
0.9 A
@ 20 Hour Rate
81 AH
4.05 A
@ 10 Hour Rate
73 AH
7.3 A
@ 5 Hour Rate
67 AH
13.40 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
4 hr
5 hr
8 hr
10 hr
40.6
22.8
17.1
13.4
11.2
8.2
6.8
...Read more
View Product
£535.99
Rolls S Series S12-290 AGM 12V 260Ah 1830CCA (EN) Deep Cycle AGM Battery
Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls Series 5 S12-290 AGM Deep Cycle AGM battery features thick plates with a high density active material. This design allows for reserve energy to be stored deep within the battery plates and released during slow discharge. The Rolls AGM range are sealed, non hazardous and completely maintenance free and will suit the customer looking for a long reliable, maintenance free service life.
Rolls has designed a Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are the smart choice for demanding renewable applications.They are designed and built differently than standard batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specifications
Weight
74 kg
163 lbs
Length
52.1 cm
20.51"
Width
26.9 cm
10.59"
Height Inc. Term.
24.5 cm
9.65"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope
Series
AGM-S
Warranty
See Warranty Terms
Volts
12
BCI
8D
Cells
6
Terminal Type
LT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
LT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
50 A
Maximum Charge Current
80 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
1.8 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
1525
Marine Crank Amps (MCA) 32°F / 0°C
1830
Reserve Capacity (RC @ 25A)
578 Minutes
Reserve Capacity (RC @ 75A)
145 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
290 AH
2.9 A
@ 20 Hour Rate
260 AH
13 A
@ 10 Hour Rate
234 AH
23.4 A
@ 5 Hour Rate
214 AH
42.8 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
148
78.3
58.9
42.3
28.3
23.4
View all Rolls Batteries
...Read more
View Product
Out of Stock
£434.49
Rolls Series 5 S12-230 AGM Deep Cycle Battery
Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls S Series S12-230 AGM Deep Cycle AGM battery features thick plates with a high density active material. This design allows for reserve energy to be stored deep within the battery plates and released during slow discharge. The Rolls AGM range are sealed, non hazardous and completely maintenance free and?will suit the customer looking for a long reliable, maintenance free service life.
Rolls has designed a Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are the smart choice for demanding renewable applications.They are designed and built differently than standard batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specifications
Weight
61.5 kg
135.5 lbs
Length
53 cm
20.87"
Width
20.9 cm
8.23"
Height Inc. Term.
23.9 cm
9.41"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope / Plastic Handle
Series
AGM-S
Warranty
See Warranty Terms
Volts
12
BCI
4D
Cells
6
Terminal Type
LT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
LT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
40 A
Maximum Charge Current
65 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
2.3 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
1200
Marine Crank Amps (MCA) 32°F / 0°C
1425
Reserve Capacity (RC @ 25A)
400 Minutes
Reserve Capacity (RC @ 75A)
105 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
230 AH
2.3 A
@ 20 Hour Rate
210 AH
21 A
@ 10 Hour Rate
189 AH
18.9 A
@ 5 Hour Rate
172 AH
34.4 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
116
64.3
47.6
33.3
22.9
18.9
View all Rolls Batteries
...Read more
Out of Stock
£899.47
Rolls Low Profile S12-135LFP 135ah Lithium LiFePO4 Battery
Rolls high-performance LiFePO4 batteries offer exceptional cycle life and are up to 50% lighter than equivalent lead-acid models.
Design
standard-size (BCI) low profile ABS container for easy VRLA replacement Fast charge/discharge performance Maintenance-free operation
Battery Management System (BMS)
integrated hardware BMS inside.Independent charge & discharge protectionOver-Voltage Protection (OVP), Low-Voltage Protection (LVP) Over-Current Protection (OCP), Over-Temperature Protection (OTP)
Safety
Prismatic LiFePO4 cells offer longer cycle life & added safety IEC62133, UL, UN38.3 cell certificationUN38.3, CE system certification, IP65 Rating
See Product Image for Specifications
...Read more
Out of Stock
£518.99
Rolls Battery AGM R12-260AGM
Specifications
Weight
73 kg
161 lbs
Length
52.2 cm
20.55"
Width
26.8 cm
10.55"
Height Inc. Term.
22.4 cm
8.82"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope
Series
AGM-R
Warranty
See Warranty Terms
Volts
12
BCI
8D
Cells
6
Terminal Type
F8
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
M8
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
50 A
Maximum Charge Current
60 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
1500
Marine Crank Amps (MCA) 32°F / 0°C
1800
Reserve Capacity (RC @ 25A)
500 Minutes
Reserve Capacity (RC @ 75A)
140 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
290 AH
2.9 A
@ 20 Hour Rate
260 AH
13 A
@ 10 Hour Rate
200 AH
20 A
@ 5 Hour Rate
185 AH
37 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
130
96
56
38
81
21.6
...Read more
Out of Stock
£504.99
Rolls Series 5 S12-240 AGM Deep Cycle Battery
Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls S Series S12-240 AGM Deep Cycle AGM battery features thick plates with a high density active material. This design allows for reserve energy to be stored deep within the battery plates and released during slow discharge. The Rolls AGM range are sealed, non hazardous and completely maintenance free and?will suit the customer looking for a long reliable, maintenance free service life.
Rolls has designed a Deep Cycle VRLA battery with high reserve capacity, long cycle life and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are the smart choice for demanding renewable applications.They are designed and built differently than standard batteries. They use more lead, heavier plates and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specifications
Weight
63.5 kg
140 lbs
Length
38.1 cm
15"
Width
17.8 cm
7.01"
Height Inc. Term.
37.1 cm
14.61"
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.
Container
ABS
Cover
ABS
Handles
Rope / Plastic Handle
Series
AGM-S
Warranty
See Warranty Terms
Volts
12
BCI
J185
Cells
6
Terminal Type
DT
Included Hardware
Stainless Steel Nuts & Bolts
Size & Thread
DT
Charge
Charge Voltage Range
14.7V @ 25°C (77°F)
Float Voltage Range
13.8V @ 25°C (77°F)
Recommended Charge Current
45 A
Maximum Charge Current
65 A
Self-Discharge Rate
Less than 2% per month at 25°C (77°F)
Internal Resistance
2.3 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -18°C
1000
Marine Crank Amps (MCA) 32°F / 0°C
1200
Reserve Capacity (RC @ 25A)
420 Minutes
Reserve Capacity (RC @ 75A)
110 Minutes
Capacity Affect by Temperature
40°C(104°F)
25°C(77°F)
0°C(32°F)
-15°C(5°F)
102%
100%
85%
65%
Hour Rate
Capacity / AMP Hour
Current / AMPs
@ 100 Hour Rate
240 AH
2.4 A
@ 20 Hour Rate
215 AH
10.75 A
@ 10 Hour Rate
193 AH
19.3 A
@ 5 Hour Rate
172 AH
34.4 A
Cut Off Voltage
Constant Current Discharge
VPC
1 hr
2 hr
3 hr
5 hr
8 hr
10 hr
112
66.1
50.6
33.7
22.7
19.3
View all Rolls Batteries
...Read more
0 Kits Selected✕
Recommended Full Kits
Loading...
£3,096.12
£2,658.96
£2,576.49
£2,409.49
Loading...
£2,576.49
£2,409.49
£2,438.68
£2,223.66
£1,392.64
£2,129.28
£2,316.26
£2,223.66
Loading...
£3,096.12
£2,658.96
£2,576.49
£2,409.49
Loading...
£1,287.58
£1,019.18
£1,543.99
£2,373.90
£1,681.63
£1,287.58
£1,019.18
£1,543.99
