Blue Sea Manual Battery Switches e-Series
350 Amps continuous rating for inboard gasoline or diesel engines.
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Accepts up to 4/0 AWG battery cables
- Studs accepts 3/8" (M10) ring terminals
- 7/8" (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Fits most Perko and Guest low amperage battery switch hole patterns
- Case design allows surface, rear, or front panel mounting options
- Tactile indicator conveys knob position by feel
- Waterproof – rated IP66 from water projected in powerful jets
6 Products Found
Out of Stock
£39.99
Blue Sea 9003E Switch Battery e-Series ON/OFF BS9003E
Switch Battery e-Series ON/OFF Blue Sea PN 9003E BS9003E
Blue Sea 9003E Series Battery SwitchSwitches a single battery to a single load groupIgnition protected—safe for installation aboard gasoline powered boatsCase design allows surface or rear panel mounting
Cranking Rating: 10 sec.
2,000 Amps
Cranking Rating: 1 min.
1,000 Amps
Intermittent Rating: 5 min.
600 Amps
Continuous Rating
350 Amps
Maximum Voltage Rating
48 Volts DC
Terminal Stud Size
3/8"-16 (M10)
Terminal Stud Torque
140 in-lb (15.82 N m) max.
Mounting Holes
Accept 1/4" (M6) Screw
Cable Size to Meet Ratings
4/0 AWG (120mm )
Cable Clearance For 4/0 AWG Cables
1.10" (27.9mm)
Weight Lb (Kg)
0.95 (0.43)
...Read more
Best Seller
Out of Stock
£49.99

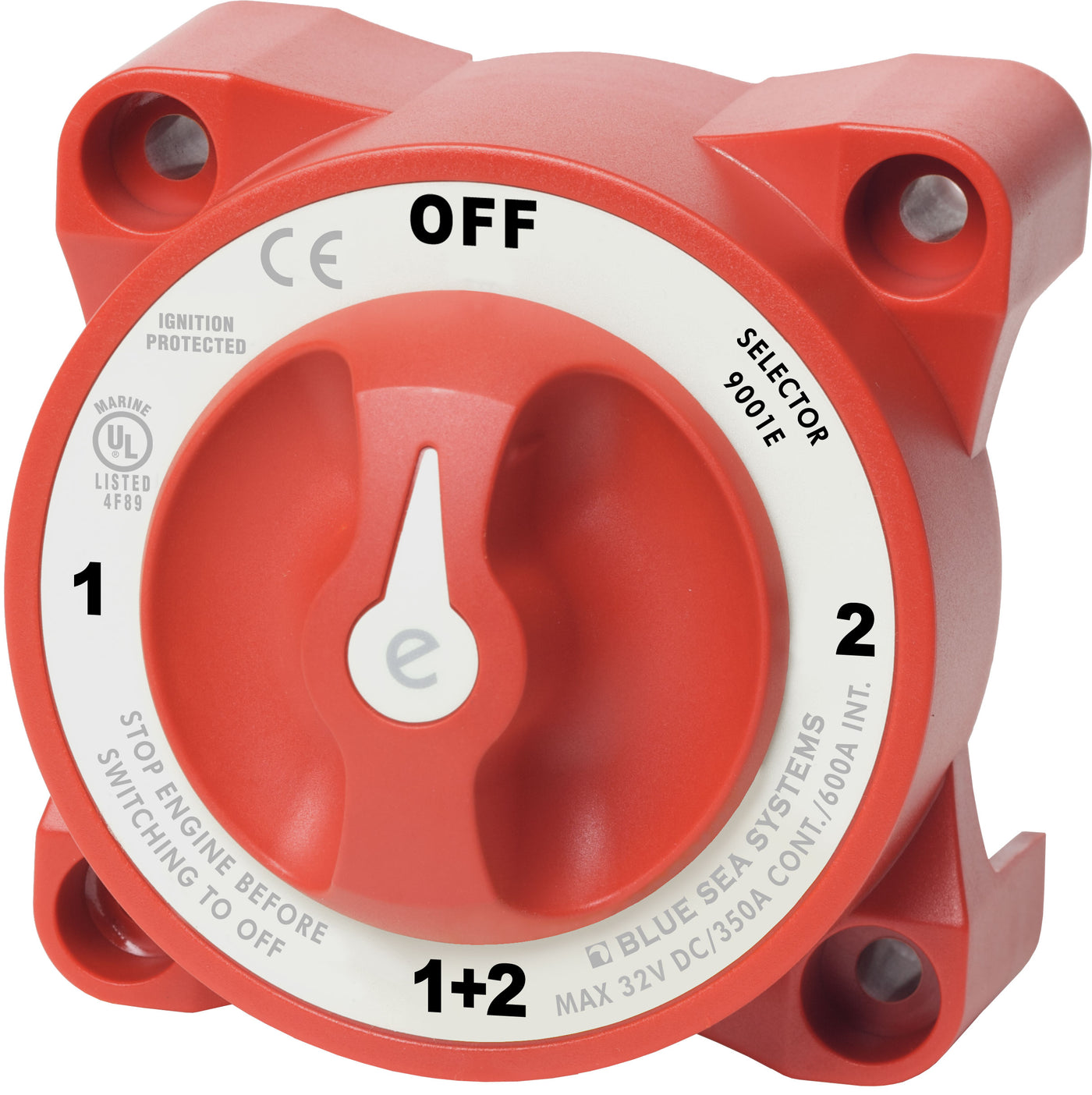

Blue Sea 9001E BS9001E Switch Battery e-Series Selector 4 Position Red
Blue Sea 9001E BS9001E Switch Battery e-Series Selector 4 Position Red
Switches isolated battery banks to all loads or combines battery banks to all loads
Make-before-break contact design allows switching between battery banks without power interruption
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
View all Blue Sea e-Series Battery Switches
...Read more
Out of Stock
£49.99
Blue Sea 9002E BS9002E Switch Battery e-Series Selector 4 Position Red With AFD
e-Series Selector Battery Switch with AFD BS9002e Blue Sea 9002E
Switches isolated battery banks to all loads or combines battery banks to all loads
Includes AFD (Alternator Field Disconnect)
Make-before-break contact design allows switching between battery banks without power interruption
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
View all Blue Sea e-Series Battery Switches
...Read more
Out of Stock
£67.89
Blue Sea 5510E BS5510E Switch Battery e-Series Dual Circuit
e-Series Dual Circuit Battery Switch BS5510e Blue Sea 5510E
Simultaneously switches two isolated battery banks
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
View all Blue Sea e-Series Battery Switches
...Read more
£56.08
Blue Sea 11001 Switch Battery e-Series Selector 3 Position with AFD
Switch Battery e-Series Selector 3 Position with AFD Blue Sea PN 11001
Switches a single battery to a single load group
Includes AFD (Alternator Field Disconnect)
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
View all Blue Sea e-Series Battery Switches
...Read more
View Product
Out of Stock
£63.06
Blue Sea 9004E BS9004e Switch Battery e-Series ON/OFF With AFD
Switch Battery e-Series ON/OFF With AFD Blue Sea PN 9004E BS9004e
Switches a single battery to a single load group
Includes AFD (Alternator Field Disconnect)
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
View all Blue Sea e-Series Battery Switches
...Read more
