Managing 230V alternating current within the metallic confines of a leisure vehicle presents serious engineering challenges. Unlike static domestic electrical installations, a campervan operates in a dynamic, highly variable environment subjected to severe mechanical vibration, fluctuating ambient temperatures, and the necessity to interface with multiple disparate power sources. A campervan rotary changeover switch allows the vehicle owner to safely and manually switch 230V plug sockets between a campsite shore hook-up and an off-grid battery inverter. It completely isolates both alternating current supplies, ensuring they cannot connect simultaneously. This mechanical isolation prevents dangerous backfeeding and protects the entire onboard electrical system from catastrophic faults.

At Van Junkies, a campervan electrical specialist based in Gosport, Hampshire, our engineering team designs robust off-grid systems that rely on these mechanical isolators to maintain compliance and safety. A campervan rotary changeover switch is a mechanical selector component featuring multiple terminals used to safely alternate a single alternating current output circuit between two separate incoming power sources, typically mains hook-up and a 12V battery inverter. For those seeking pre-engineered solutions that eliminate the complexities of AC wiring, integrating these components into our Full Power System Kits provides immediate compliance and peace of mind.

The essentials at a glance:

• Mechanical Isolation: A 3-position rotary changeover switch breaks the physical connection to the previous AC source before making a new connection, preventing dangerous backfeeding between the national grid and the vehicle inverter.
• Regulatory Compliance: BS 7671 UK wiring regulations mandate that any alternating current changeover device in a leisure vehicle must isolate both the live and neutral conductors simultaneously.
• Earth Bonding Rules: Earth cables must never pass through the switching terminals of a rotary switch; all earth conductors must be continuously bonded at a single dedicated earth block.
• Battery Sizing: A 100Ah lithium leisure battery can be safely discharged to around 80 percent to 90 percent of its capacity, roughly double the usable energy of a same-size AGM battery, making it ideal for running a 250W to 500W pure sine wave inverter.
• Downstream Protection: Installing a double-pole 30mA Type A RCD immediately after the changeover switch is a regulatory requirement to protect the entire downstream 230V circuit against earth leakage faults.

1️⃣ The Core Mechanics of Rotary Changeover Switches

To execute a safe transfer between two distinct high-voltage power sources, the mechanical architecture of the switch must be completely fault-tolerant. The standard component utilised in professional campervan conversions is a 3-position, 4-pole, 8-terminal or 12-terminal rotary cam switch, typically rated for 20A or 32A of thermal current. The 8-terminal configuration is the most efficient choice for single-phase dual-source switching where the earth conductors bypass the switch entirely.

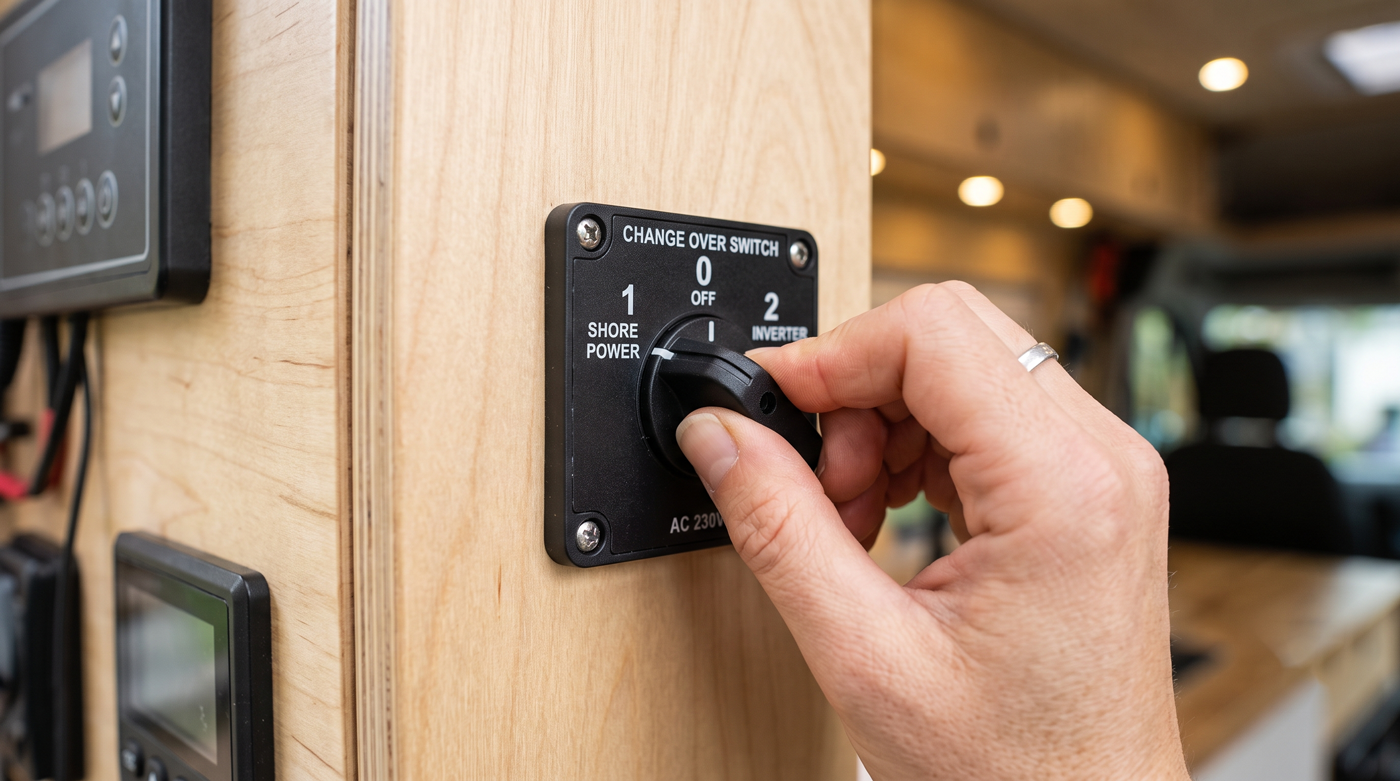

The mechanical intelligence of the switch lies in its central rotating cam mechanism. When the operator turns the selector knob, the internal cam forces spring-loaded silver alloy contacts to either open or close. The standard operational mode is designated as ON-OFF-ON, or 1-0-2. This configuration is defined by the electrical engineering principle known as break-before-make. As the switch transitions from Position 1 to Position 2, it is mechanically forced to pass through Position 0. The physical distance the cam must rotate ensures that the contacts for the first power source are fully separated and any potential electrical arc is extinguished before the contacts for the second power source are allowed to close.

If a make-before-break switch were accidentally utilised, or if an installer attempted to hardwire two AC sources together without a switch, the results would be highly destructive. Connecting the output of a 12V DC to 230V AC pure sine wave inverter directly to the national grid without highly specialised phase-synchronisation equipment causes immediate backfeeding. The grid would attempt to force current backwards through the inverter output stage, instantly destroying the sensitive field-effect transistors within the inverter and potentially initiating an electrical fire. The manual campervan rotary changeover switch physically guarantees this cannot happen.

2️⃣ Regulatory Compliance Under BS 7671 Section 721

The installation of 230V electrical systems in a leisure vehicle operating in the United Kingdom is governed by strict regulatory frameworks. The primary standard is BS 7671, the IET Wiring Regulations, specifically Section 721, which governs electrical installations in caravans and motor caravans. Compliance with BS 7671 is not merely advisory for professional converters. It forms the basis of compliance with Section 17 of the Health and Safety at Work Act, and non-compliant installations can lead to prosecution, invalidated insurance, and rejected DVLA habitation reclassification applications.

The regulations acknowledge that a metal vehicle resting on rubber tyres presents a unique shock hazard profile. Unlike a brick-and-mortar dwelling with a massive copper earth rod driven into the bedrock, a campervan relies entirely on the integrity of the campsite hook-up lead and the onboard protective devices to clear earth faults. Consequently, BS 7671 introduces several stringent rules that directly impact how a changeover switch and the subsequent consumer unit must be wired.

The most vital regulation involves double-pole switching. In standard UK domestic electrical practice, the incoming grid supply has a guaranteed fixed polarity. The brown wire is always live, and the blue wire is always neutral at a potential of zero volts relative to earth. Domestic circuit breakers therefore only need to switch the live conductor. However, when a campervan connects to a campsite electrical bollard, particularly across continental Europe, there is a very high probability of reverse polarity. If a European plug adapter is inserted upside down, the incoming blue wire becomes the live conductor, and the incoming brown wire becomes the neutral.

If a campervan were fitted with domestic single-pole protective devices during a reverse polarity event, an electrical fault would trip the breaker and open the brown wire. Because the brown wire is currently acting as the neutral, the actual live current flowing through the blue wire would remain uninterrupted. The appliance would stop working, leading the user to believe the circuit was dead, while the entire appliance chassis remained lethally energised at 230V. To mitigate this severe risk, BS 7671 Section 721 mandates that all main switches, Residual Current Devices (RCDs), and Miniature Circuit Breakers (MCBs) installed in a leisure vehicle must be double-pole. A double-pole device mechanically disconnects both the live and neutral conductors simultaneously, guaranteeing that the downstream circuit is completely isolated regardless of the incoming polarity.

3️⃣ Protective Devices and Surge Mitigation

Beyond double-pole switching, the selection of the correct protective devices downstream of the changeover switch is dictated by the characteristics of modern power electronics. The consumer unit, which receives power from the common output of the rotary switch, must contain a main RCD. BS 7671 requires this RCD to have a rated residual operating current not exceeding 30mA. At 30mA, the human heart can enter ventricular fibrillation if shocked, making this the absolute maximum threshold for life protection.

The type of RCD is also highly significant. Older AC-Type RCDs are designed only to detect purely alternating fault currents. Modern campervans are packed with switch-mode power supplies, LED drivers, laptop chargers, and the large DC-to-AC inverters themselves. These devices can leak pulsating direct current into the AC wiring. If DC current leaks through an older AC-Type RCD, it magnetises the internal sensing core, effectively blinding the RCD and preventing it from tripping during a real AC fault. For this reason, BS 7671 strongly dictates the use of Type A RCDs (or Type B in specific high-load scenarios), which are specifically designed to detect and clear faults even in the presence of pulsating DC currents.

When designing a robust system, the engineering team at Van Junkies routinely specifies 16A or 25A double-pole, 30mA Type A RCBOs (Residual Current Breaker with Overcurrent). An RCBO combines the earth-leakage protection of an RCD with the overload protection of an MCB into a single unit, saving valuable space inside compact campervan consumer units.

4️⃣ The Physics of Neutral Earth Bonding in Off Grid Systems

The most dangerous and frequently misunderstood aspect of wiring a campervan inverter system involves the physics of the neutral-earth bond. For an RCD to function and protect human life, it requires a specific electrical topography. An RCD works by passing both the live and neutral conductors through a differential current transformer. It continuously measures the current flowing out on the live wire and compares it to the current returning on the neutral wire. If the circuit is healthy, the outward and return currents are exactly equal, and the magnetic fields in the transformer cancel each other out. If a person touches a live wire and current flows through their body to the earth, some current is diverted away from the neutral return path. The RCD detects this imbalance and trips the circuit within 40 milliseconds.

However, for this diverted fault current to flow through the earth and create the imbalance, there must be a physical connection between the earth system and the neutral conductor somewhere upstream of the RCD. In a traditional domestic house, this connection is made at the local electrical substation. When a campervan is plugged into shore power, it relies on the substation neutral-earth bond to provide the fault return path.

When the rotary changeover switch is turned to Position 2, the campervan is disconnected from the national grid and runs entirely on the off-grid battery inverter. Most standalone pure sine wave inverters produce what is known as a floating AC output. In a floating system, the 230V potential exists only between the live and neutral pins of the inverter. Neither pin has any electrical reference to the vehicle chassis or the earth. If a fault occurs while running on a floating inverter, the fault current has absolutely nowhere to go. Because no current flows, the RCD detects zero imbalance and does not trip. The metal chassis of the vehicle remains silently and lethally energised at 230V.

To resolve this, BS 7671 Section 721.411 requires exactly one neutral-earth bond per operating mode. When running on the inverter, the neutral conductor must be bonded to the earth conductor upstream of the RCD. This provides the return path, allowing fault current to flow, which imbalances the RCD and forces it to trip, rendering the vehicle safe.

A manual 8-terminal rotary changeover switch only switches the live and neutral conductors. It does not automatically manage the neutral-earth bond. Therefore, if a floating standalone inverter is used alongside a manual rotary switch, the installer must implement a secondary bonding mechanism. This is typically achieved using a contactor relay triggered by the inverter output, which physically connects the neutral and earth only when the inverter is active, and breaks the bond when shore power is connected. Alternatively, premium inverter-chargers, such as the Victron Energy MultiPlus range, feature highly sophisticated internal grounding relays that automatically create and destroy the bond within milliseconds of shore power being connected or disconnected, completely removing the burden from the installer.

5️⃣ Comprehensive 8 Terminal Wiring Protocol

Wiring the 8-terminal changeover switch requires meticulous attention to detail, proper wire stripping, and secure mechanical connections. The following protocol outlines the standard logic gate configuration used in professional campervan builds.

Pro Tip: Prior to touching any electrical terminals, the installer must enforce total system isolation. Disconnect the external shore power hook-up cable from the side of the vehicle. Turn off the main 12V DC battery isolators to remove power from the inverter. Physically turn off the inverter switch. Utilise a calibrated multimeter to confirm that zero voltage is present across all AC and DC cables in the work area.

The physical installation begins with identifying the three required three-core AC cables. These consist of the shore power input cable originating from the external hook-up inlet, the inverter output cable originating from the 230V socket on the inverter, and the house feed cable that carries the selected power to the main consumer unit. Each cable contains a brown live conductor, a blue neutral conductor, and a green/yellow earth conductor.

The installation sequence proceeds by stripping the insulation back to expose the copper strands, ensuring no stray wires project outside the terminal blocks. When the switch is rotated to Position 1, the internal cam bridges terminals 1 to 2, and 5 to 6. Shore live flows into terminal 1, across the bridge to terminal 2, and out to the consumer unit. When rotated to Position 2, the cam drops the shore connections and bridges terminals 3 to 4, and 7 to 8. Inverter live flows into terminal 3, across the bridge to terminal 4, travels down the external jumper wire to terminal 2, and out to the consumer unit. The single output path receives power securely from either source without crossing streams.

The three green/yellow earth conductors from the shore lead, the inverter, and the consumer unit never touch the rotary switch. They must be physically clamped together in a dedicated brass earth block or heavy-duty Wago connector mounted inside the switch enclosure. This ensures continuous, unbroken fault protection routing back to the vehicle chassis.

6️⃣ Cable Specifications and Mechanical Protection

The physical cables used to wire the changeover switch and the wider AC network must withstand the extreme conditions of a mobile environment. A commercial van such as a Ford Transit Custom or a Mercedes Sprinter acts as an acoustic resonance chamber, magnifying road vibrations. Standard domestic solid-core twin and earth cable is highly susceptible to mechanical fatigue. Under constant vibration, the solid copper core becomes brittle and will eventually shear off where it enters the screw terminal of the rotary switch. This creates micro-arcing, extreme heat buildup, and a high probability of electrical fire.

To combat this, BS 7671 Regulation 721.521 specifies the mandatory use of flexible cables. Converters must use Class 5 fine-stranded flexible copper cable for all 230V installations. The high strand count allows the cable to flex and absorb vibration without fracturing. For standard 16A campsite hook-up circuits and 2000W inverters, 2.5mm2 tri-rated or arctic-grade flexible cable provides an optimal balance of current-carrying capacity and physical durability.

Cable routing demands careful planning. AC cables carrying 230V must be physically segregated from the 12V DC cables by a minimum distance of 50mm to prevent electromagnetic interference and to eliminate the risk of a high-voltage short circuit bridging into the low-voltage network. Where cables pass through the sharp metal bulkheads of a VW Transporter or a Peugeot Boxer, they must be protected by heavy-duty rubber grommets and enclosed in corrugated conduit.

7️⃣ Professional Electrical Design Support

Designing an off-grid electrical system requires balancing component compatibility, legal compliance, and physical space constraints. Sourcing disparate parts and attempting to calculate cable gauges, fusing limits, and bonding requirements often leads to stalled projects and unsafe builds. Procurement of a pre-designed kit ensures that the inverters, charge controllers, and battery banks from trusted brands like Fogstar and Beyond Batteries are mathematically matched.

Wiring alternating current systems correctly is structurally demanding and carries zero margin for error. A single misplaced cable can render a high-value inverter useless or create a lethal shock hazard on the vehicle chassis. For DIY builders requiring assistance with integrating manual changeover switches, sizing automatic transfer switches, or determining the correct earthing arrangements for a new van build, the team at Van Junkies provides comprehensive technical guidance.

We highly recommend utilising our free bespoke campervan and motorhome electrical design service. This service ensures every component functions safely, efficiently, and in total compliance with modern vehicle habitation regulations, transforming a bare metal shell into a safe, off-grid powerhouse.
